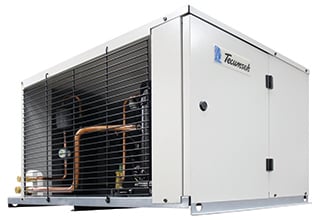

Tecumseh AWG4520EXTHG 2H3234-20 Outdoor Condensing Unit 200-230V/60Hz

Tecumseh AWG4520EXTHG 2H3234-20 Outdoor Condensing Unit 200-230V/60Hz

Description:
Air-cooled low and medium temperature condensing unit platform with both indoor and outdoor options. The Tecumseh ARGUS is ideal for walk-in coolers and freezers and provides restaurant, grocery stores and convenience stores unmatched performance and configurability which keeps produce and other products at optimal freshness.

Specifications:
High Temperature Rated @ 45F
Ref: R-22
Model Number: AWG4520EXTHG
Unit Bill of Material: 2H3234-20
Volt/Hz/Ph: 200-230/60/3
HP: 1 1/2
Starting Torque: 3 PH
Capacity (Btu/h) at 95F Ambient
20: 11,819
30: 14,604
40: 17,566
45: 19,114
50: 20,707
Dimensions (in) L: 34.6
Dimensions (in) W: 28.9
Dimensions (in) H: 26.5
Connection Size (in) Suction: 5/8 ODF
Connection Size (in) Liquid: 3/8 ODF
Wt (lbs): 209
