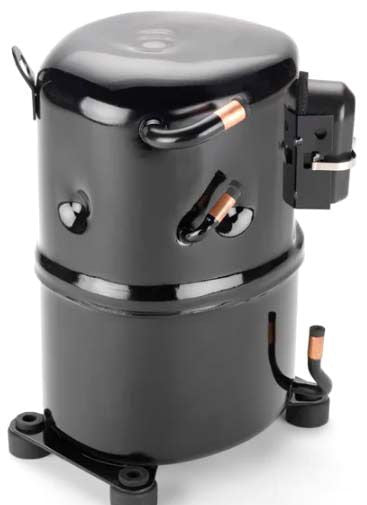

Tecumseh AWA7515ZXD AW612ET-111-J7 Air Conditioner Reciprocating Compressor 230V/60Hz

Tecumseh AWA7515ZXD AW612ET-111-J7 Air Conditioner Reciprocating Compressor 230V/60Hz

Description:
Capacity 15000 BTU/Hour; Voltage Rating 200/230 Volt AC 50/60 Hertz 1-Phase; Current Rating 12.5 Amp (RLA), 25 Amp (MCC); Refrigerant Type R-404A/R-507; Motor Type CSR; Motor Torque High Start Torque; Compressor Cooling Fan; Application Medium Back Pressure.

Specifications:
Evaporating
Temp.Range: -23.3Cto -1.1C(-10Fto 30F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan
Weight: 74
Weight Unit of Measure: LB
Displacement (cc): 53.49
Oil Type: Polyolester
Viscosity(c
St): 32
Oil
Charge (cc): 1141
Voltage Range (50 Hz): 180-220
Voltage Range (60 Hz): 187-254
Locked
Rotor Amps (LRA): 96.8
Rated
Load
Amps (RLA50 Hz): 0
Rated
Load
Amps (RLA60 Hz): 12.5
Max.Continuous Current (MC
Cin
Amps): 25
Motor Resistance (Ohm) - Main: .588
Motor Resistance (Ohm) - Start: 3.25
Motor
Type: CSR
