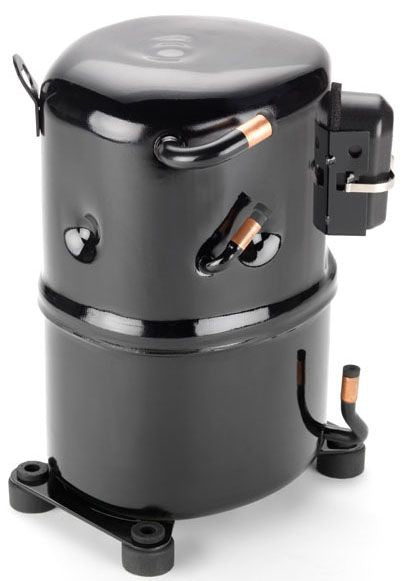

Tecumseh AW707ET-093-J7 Compressor 30000 BTU 230-1-60 R22 A/C

Product Description

Tecumseh AW707ET-093-J7 is a compressor designed for air conditioning systems with a cooling capacity of 30,000 BTU. This model operates at 230 volts and is suitable for use with refrigerant R-22. It features a hermetic design and is structured to provide effective cooling in residential and commercial settings.

• Power: 30,000 BTU
• Voltage: 208-230 VAC
• Compressor Type: Reciprocating

Product Highlights

This compressor is built with a durable hermetic housing to ensure reliability and performance. It boasts a low evaporating temperature and is appropriate for various air conditioning applications.

Product Information

Standard Information

• Brand: Tecumseh
• Part Number: AWG5530EXN

Technical Specifications

• Weight: 63 pounds
• BTU Output: 30,200 BTU
• Compressor Type: Reciprocating
• Motor HP: 3 HP
• Voltage: 208-230 VAC
• Refrigerant: R-22
• Evaporating Temperature: -10°F to 55°F
• Return Gas Temperature: 65°F
• Suction Line Size (OD): 3/4 inches
• Discharge Connection Size OD: 3/8 inches
• Locked Rotor Amps (LRA): 90
• Rated Load Amps (RLA): 14.4
• Oil Type: Polyolester (POE)
• UL Listed: No
• Country of Origin: USA
• Dimensional Weight: 20
• Cubic Measurement: 0.6473
• Compressor Housing: Hermetic
