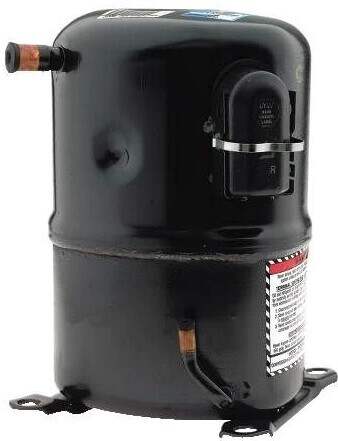

TECUMSEH AW610EH-111-J7 Hermetic Refrigeration Compressor 1 HP 3775 BTU R404/R507 208/230 VAC 1 PH AWA2440ZXD-R

Brand: TECUMSEH
SKU: AW610EH-111-J7
Availability: In Stock
truck-svgrepo-com

Ships via Freight in 3-5 Business Days

$1,528.18
$1,528.18
Manuals:
LTL Delivery

This product weighs 69 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

Discover the efficiency of the TECUMSEH AW610EH-111-J7, a robust hermetic refrigeration compressor designed to meet the rigorous demands of commercial applications. This model, well-suited for a wide array of refrigeration systems, operates with a power supply of 230V1ph and offers a cooling capacity of 3775BTU using R404/R507 refrigerants.

  • Optimized for performance with a compact design, facilitating installation in diverse settings.
  • Equipped with fan cooling mechanism and uses Polyolester oil for enhanced operation.
  • Supports a voltage range from 180 to 254 VAC, adapting seamlessly to various power supplies.

Product Highlights

The TECUMSEH AW610EH-111-J7 is known for its reliable performance under demanding conditions, maintaining optimal cooling effectiveness. Its straightforward installation and maintenance make it a preferred choice for commercial refrigeration, including walk-in coolers and food processing units.

Product Information

Technical Specifications

  • Motor Type: CSR
  • Cooling Capacity: 3775BTU
  • Voltage Range: 187 to 254 VAC at 60Hz, 180 to 220 VAC at 50Hz
  • Oil Charge: 1141 cc
  • Compressor Cooling: Fan
  • Oil Type: Polyolester
  • Motor Resistance - Main: 0.88
  • Motor Resistance Start: 2.1
