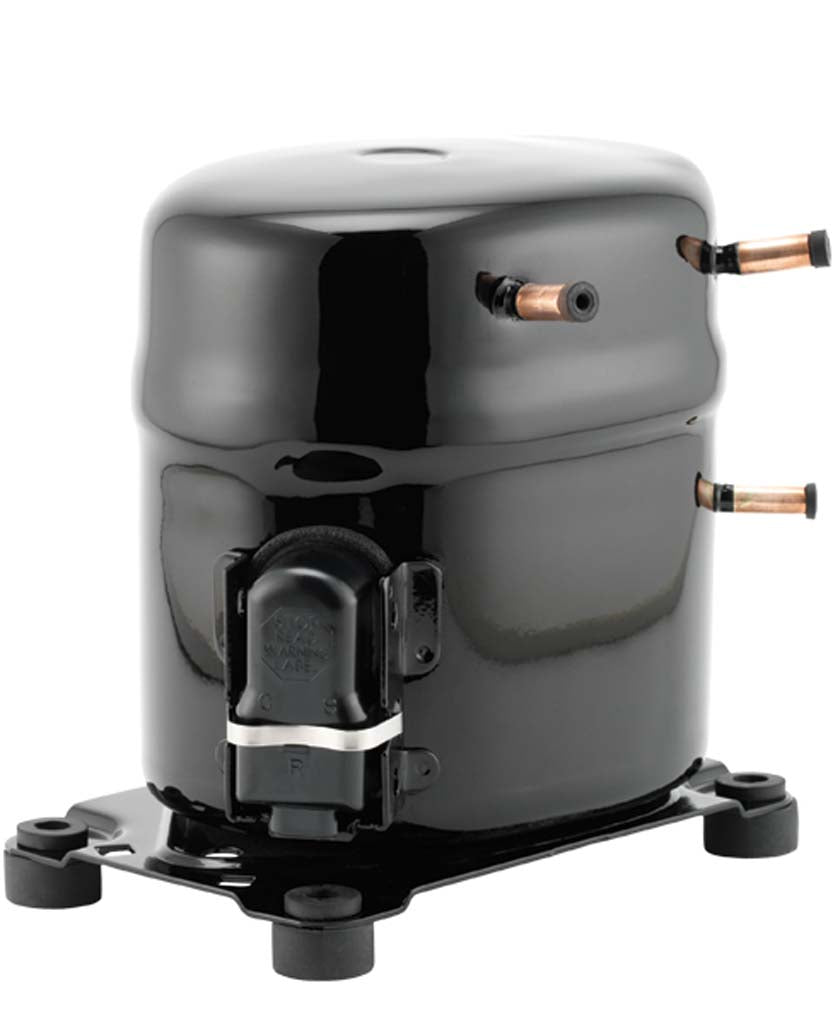

TECUMSEH AKA9455ZXA Compressor

Product Description

The TECUMSEH AKA9455ZXA is a reciprocating compressor intended for refrigeration applications. It supports refrigerants such as R-404A, R-407A, R-448A, R-449A, and R-452A. This model is equipped with a CSR motor type and provides high start torque for effective operation.

• Compatible with various refrigerants.
• Features fan cooling for enhanced performance.
• Optimal for medium temperature applications.

Product Highlights

This compressor is suitable for use in medium temperature settings, operating effectively within an evaporating temperature range of -17.8 degrees Celsius to 10 degrees Celsius.

Product Information

Standard Information

• Brand: TECUMSEH
• Product Family: AK

Technical Specifications

• MPN: AKA9455ZXA
• Horsepower: 3/4 HP
• Refrigerant Compatibility: R-404A, R-407A, R-448A, R-449A, R-452A
• Evaporating Temperature Range: -17.8 degrees Celsius to 10 degrees Celsius
• Compressor Motor Type: CSR
• Cooling Type: Fan
• Oil Type: Polyolester
• Oil Charge: 512 cc
• Locked Rotor Amps (LRA): 50
• Rated Load Amps (RLA 60Hz): 10.1
• Voltage: 115/1
• Weight: 44 LB
• Dimensions: 10.5 In. height
• Displacement: 20.436 cc
• Displacement (In³/Rev): 1.247
• Connection Discharge: 1/4 S
• Connection Suction: 3/4 RL - 1/2 F
• Agency Approval: cURus_RECOGNIZED
