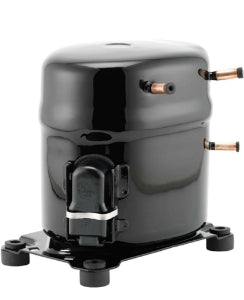

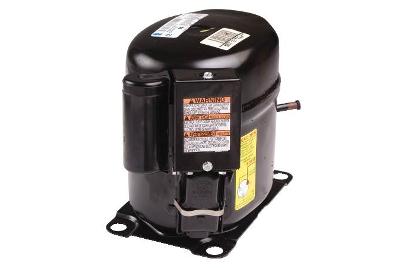

Tecumseh AKA4460YXD AK Series Reciprocating Compressor 1/2 HP

Product Description

The Tecumseh AKA4460YXD is a reciprocating compressor ideal for high back pressure applications. This unit is compatible with R-134a refrigerant and operates on both 200 volts, single phase, at fifty Hertz, and 208 to 230 volts, single phase, at sixty Hertz. It is part of the AK product family and features high start torque for reliable operation in various conditions.

• Designed for high back pressure applications.
• Operates on multiple voltage configurations.
• Features high start torque for efficiency.

Product Highlights

This compressor is suitable for use in environments with suction temperatures ranging from +10 degrees Fahrenheit to +40 degrees Fahrenheit. Its design supports effective cooling and reliability across a range of applications.

Product Information

Standard Information

• Product Family: AK
• Application: High Back Pressure (HBP)

Technical Specifications

• Voltage: 200V 1PH 50Hz, 208-230V 1PH 60Hz
• Refrigerant: R-134a
• Horse Power: 1/2 HP
• Motor Torque: High Start Torque (HST)
• Evaporating Range: -6.7 degrees Celsius to 12.8 degrees Celsius (20 degrees Fahrenheit to 55 degrees Fahrenheit)
• Shipping Weight: 38 pounds
• Dimensions: 13 inches (Length) x 11 inches (Width) x 13 inches (Height)
• Capacity: 6300 BTUH
• Suction Connection: 3/4 inch ROT (1/2 inch SAE)
• Country of Origin: USA
