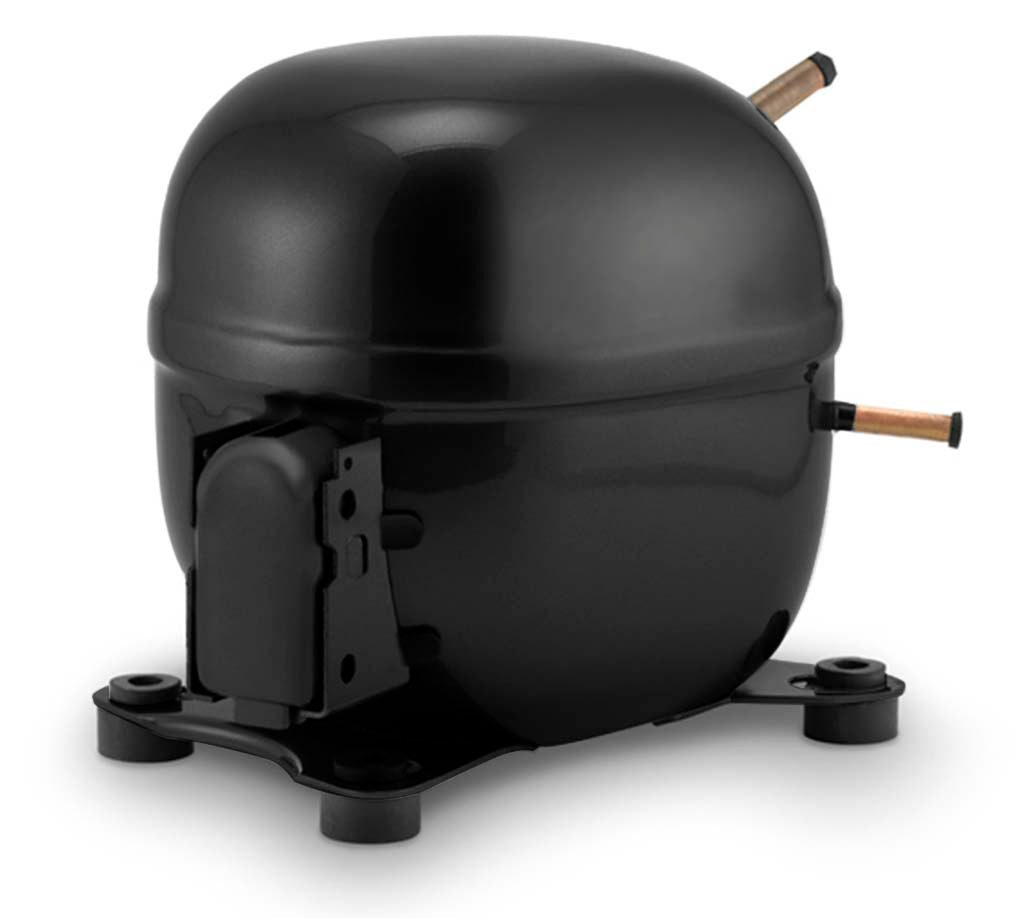

Tecumseh AK4510Z-NA3C Reciprocating Compressor 3/4 HP

Product Description

The Tecumseh AK4510Z-NA3C is a reciprocating compressor suitable for high and commercial back pressure applications. This unit operates on 208-230V at 60Hz and is compatible with R-404A, R-448A, R-449A, and R-452A refrigerants. The compressor features a CSR motor type that delivers high start torque, making it effective for demanding environments.

• Reciprocating compressor suitable for HBP/CBP applications.
• Operates on 208-230V at 60Hz.
• Compatible with multiple refrigerants including R-404A.

Product Highlights

This compressor is designed for efficiency in refrigeration systems, utilizing polyolester oil for optimal lubrication and cooling.

Product Information

Standard Information

• Compressor Type: Reciprocating
• Application: HBP/CBP - High/Commercial Back Pressure

Technical Specifications

• Refrigerant: R-404A/R-448A/R-449A/R-452A
• Voltage: 208-230V
• Frequency: 60Hz
• Series: AK2 Series
• Evaporating Temperature Range: -15°C to 15°C (5°F to 59°F)
• Motor Torque: High Start Torque (HST)
• Compressor Cooling: Fan
• Weight: 35 LB
• Displacement: 15.63 cc
• Oil Type: Polyolester
• Oil Charge: 512 cc
• Locked Rotor Amps (LRA): 29.9
• Rated Load Amps (RLA 60Hz): 4.7
• Max. Continuous Current (MCC): 9
• Pressure Control: Low
• Receiver Capacity: 8 LB
• Suction Connection: 5/8 ODF
• Liquid Connection: 3/8 ODF
• Dimensions: 30 x 29 x 20 inches
