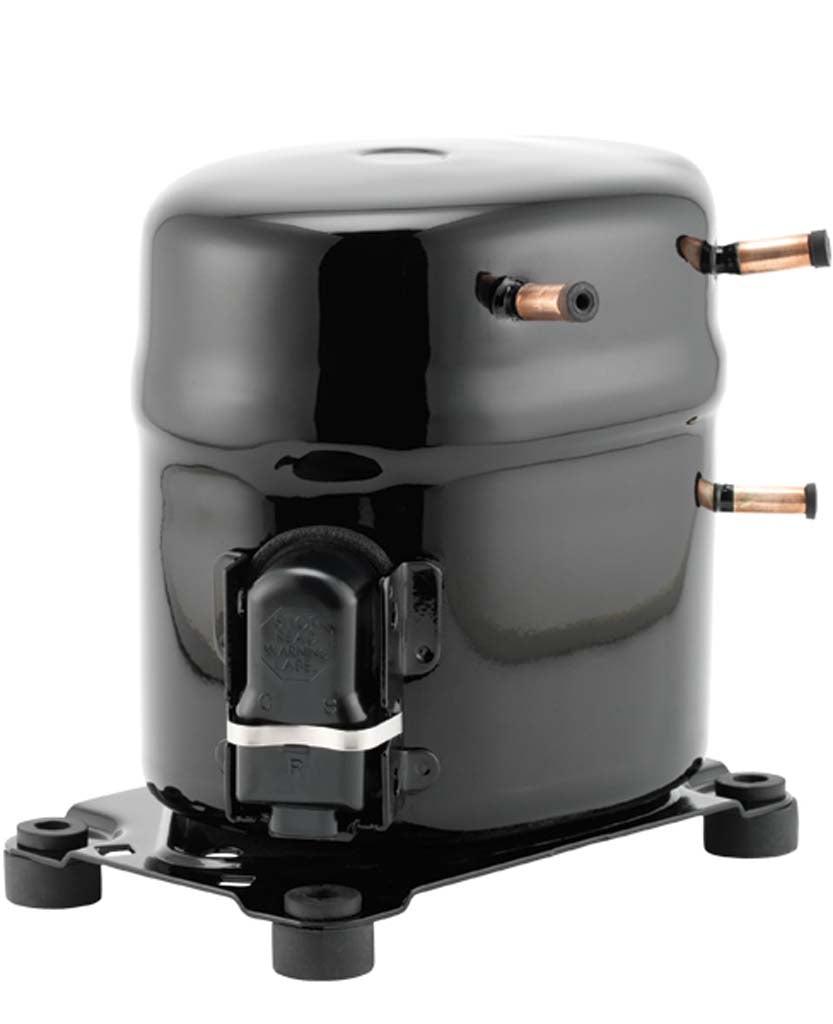

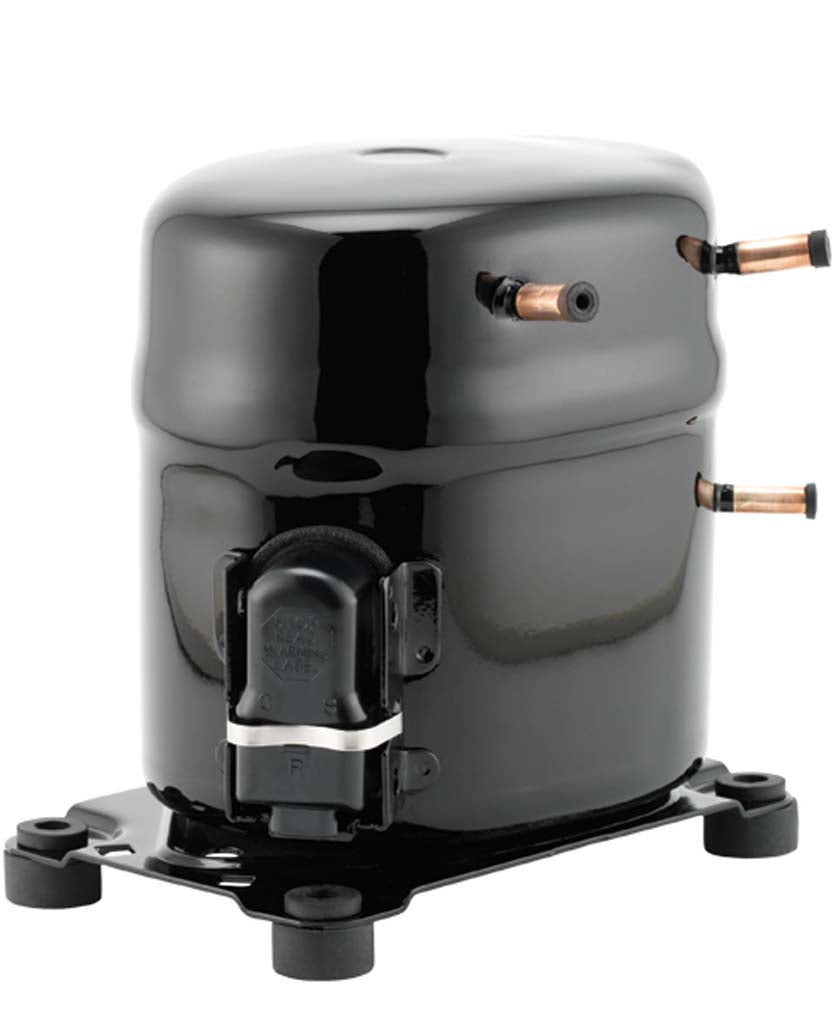

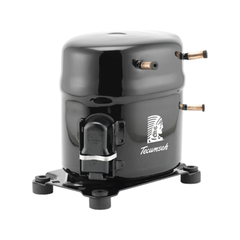

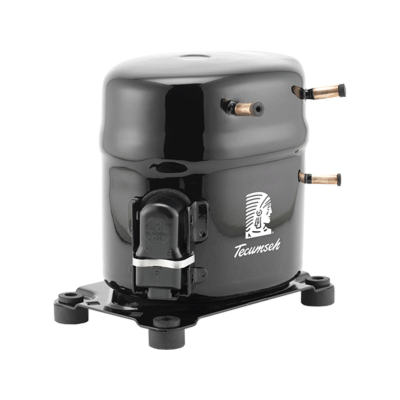

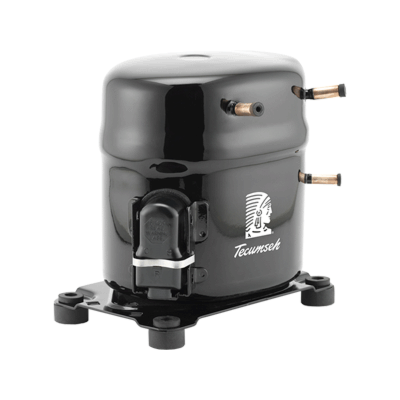

Tecumseh AK169ER-A38-J7 compressor 200V 50Hz 208-230V 60Hz

Product Description

The Tecumseh AK169ER-A38-J7 is a reciprocating compressor from the AK Series, designed for High Back Pressure (HBP) applications. It operates on 200V at 50Hz or 208-230V at 60Hz, utilizing R-134a/R-513A refrigerant. This single-phase compressor features a 1/4 inch discharge line and a 3/4 inch Rotolock suction line, with an external overload type. It provides a cooling capacity of 7646 BTU.

• Designed for High Back Pressure (HBP) applications.
• Compatible with R-134a/R-513A refrigerants.
• Operates on 200V 50Hz or 208-230V 60Hz power.

Product Highlights

Reciprocating compressor for HBP applications, featuring dual voltage operation and R-134a/R-513A refrigerant compatibility.

Product Information

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: AK169ER-A38-J7

Technical Specifications

• Part Number: AK169ER-A38-J7
• Model: AKA4476YXD
• Compressor Type: Reciprocating
• Series: AK Series
• Application: HBP - High Back Pressure
• Refrigerant: R-134a/R-513A
• Input Voltage: 200V ~ 50Hz / 208-230V ~ 60Hz
• Discharge Line Size: 1/4 in (6.35mm)
• Suction Line Size: 3/4 in (Rotolock)
• Overload Type: EXTERNAL
• Start Capacitor Kit: K146-37
• Relay Kit: K71-22
• Overload Kit: K90-86
• Brand: Tecumseh
• Phase: Single-phase
• Cooling Capacity: 7646 BTU
• Bill of Material Number: AK169ET-038-J7
• Horsepower: 1/2hp
