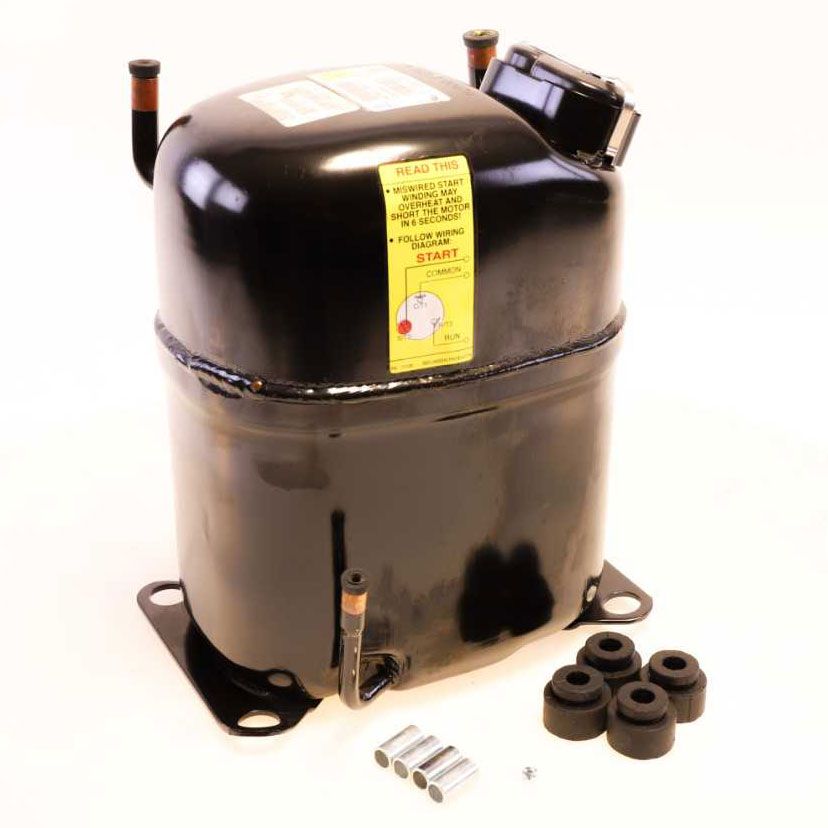

Tecumseh AJ220FT-206-J7 Compressor 19300 BTU R22 208-230V

Product Description

The Tecumseh AJ220FT-206-J7 compressor is designed for air conditioning applications using R22 refrigerant. This single-phase compressor operates on 208-230 volts at 60 Hz with a 1-1/2 HP motor. It delivers a cooling capacity of 19300 BTU and is built with a low start torque. The compressor has a 0.5 inch sweat (1/2 ODF) suction line size and a 0.3125 inch discharge line size.

• 19300 BTU cooling capacity
• 208-230 volt, single phase
• 1-1/2 HP motor

Product Highlights

This Tecumseh reciprocating compressor is suitable for air conditioning systems requiring R22 refrigerant. It maintains high back pressure and offers significant cooling efficiency with low start torque capabilities.

Product Information

Standard Information

• Brand: Tecumseh
• MPN: AJ220FT-206-J7

Technical Specifications

• Model: AJA5519EXD
• Application: Air Conditioning, High Back Pressure
• Refrigerant Rating: R22
• BTU Rating: 19300 BTU
• Connection Size: 1/2 x 5/16
• Compressor Connection: ODF
• Motor HP: 1-1/2 HP
• Motor RPM: Not Provided
• Motor Phase: 1 Ph
• Motor Voltage: 208-230V
• Motor Hertz: 60 Hz
• Weight: 60.00
