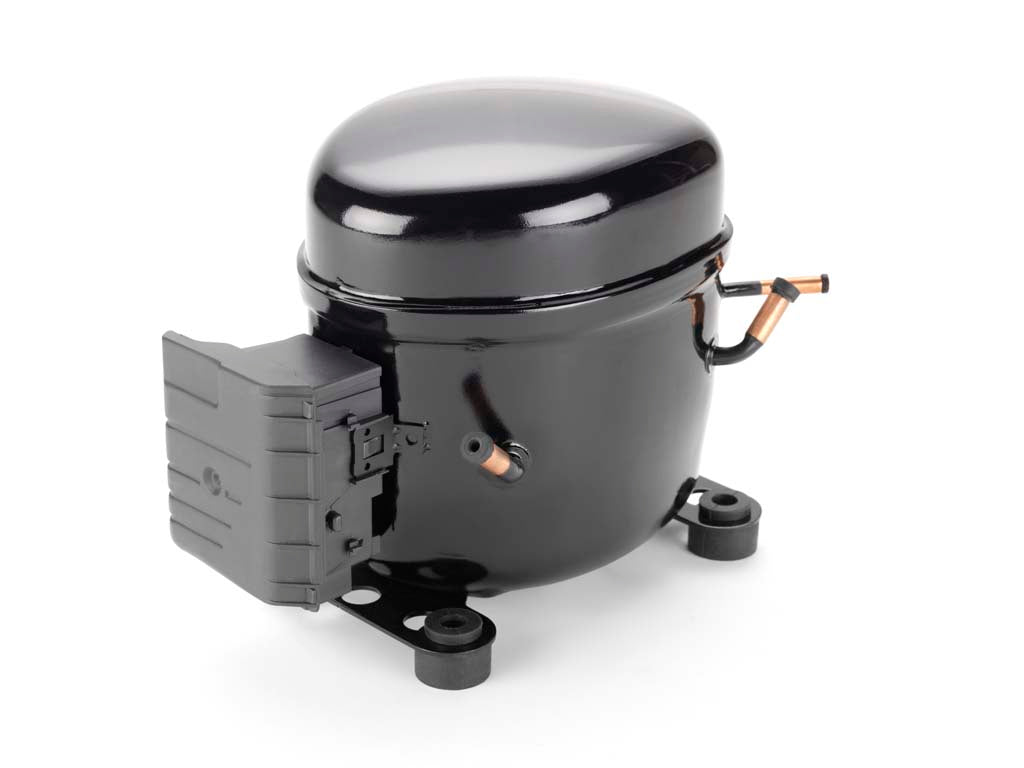

Tecumseh AEA4448AXA Refrigeration Compressor 1/3 HP

Product Description

The Tecumseh AEA4448AXA is a hermetic refrigeration compressor that is effective for high-temperature applications and is compatible with R-12 refrigerant. This unit operates on one hundred fifteen volts, at sixty Hertz, using single-phase power. The compressor features a one-third horsepower motor and is designed with High Start Torque (HST). It includes a three-eighths inch suction connection and a quarter-inch discharge connection, both utilizing sweat fittings. With fan cooling capabilities, this unit comes with built-in start components, making it suitable for evaporating temperature ranges from twenty degrees Fahrenheit to fifty-five degrees Fahrenheit.

• Operates effectively on one hundred fifteen volts at sixty Hertz.
• Designed for use with R-12 refrigerant in high-temperature settings.
• Equipped with three-eighths inch suction and quarter-inch discharge connections.

Product Highlights

Ideal for high-temperature refrigeration systems, the Tecumseh AEA4448AXA ensures reliable performance in demanding conditions.

Product Information

Standard Information

• Brand: Tecumseh
• Type: Refrigeration Compressor

Technical Specifications

• Evaporating Temperature Range: 20°F to 55°F
• Motor Torque: High Start Torque
• Cooling Method: Fan
• Weight: 26 lbs
• Displacement: 14.176 cc/Rev
• Oil Type: Mineral
• Locked Rotor Amps: 40
• Rated Load Amps: 8
• Refrigeration Capacity: 4800 BTU/h
• Input Power: 725 W
• Dimensions: Height 8.81 in, Length 8.9 in, Width 6 in
• Horsepower: 1/3 HP
