Tecumseh AEA2413AXA Comp 115V Lt.R12 Ab Oil

Product Description

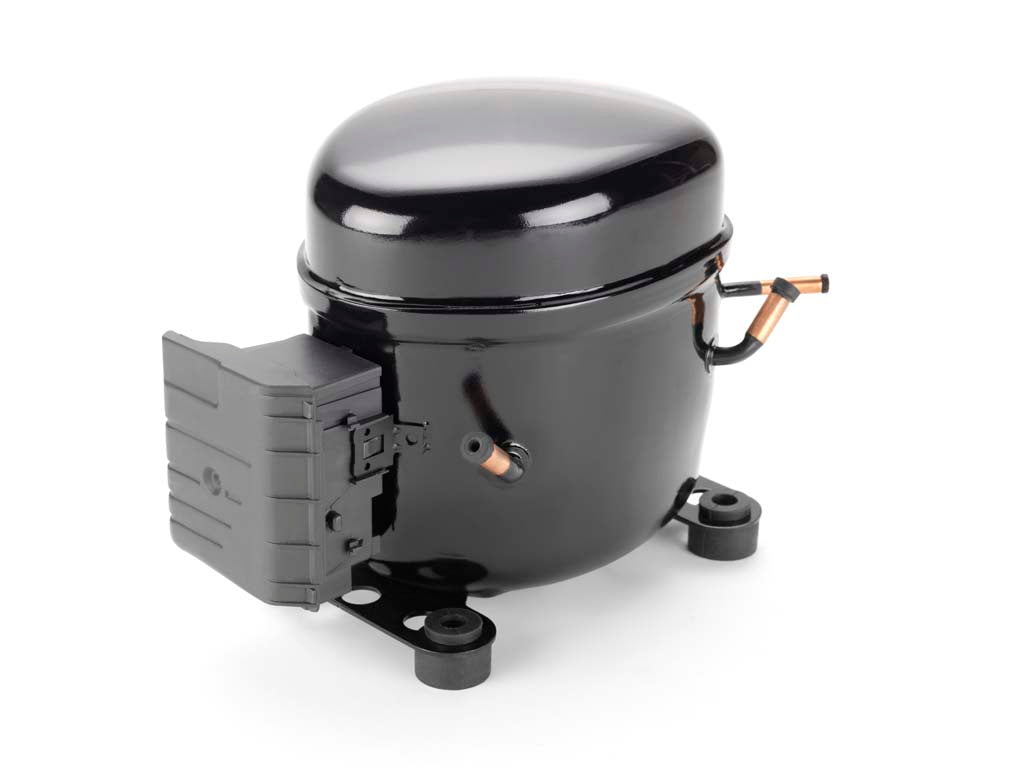

The TECUMSEH AEA2413AXA is a reciprocating compressor designed for low back pressure applications. It is compatible with 100V 1PH 50Hz and 115V 1PH 60Hz power supplies and uses R-12 refrigerant. This hermetic compressor is suitable for applications with evaporating ranges from -40°C to -12.2°C (-40°F to 10°F).

• Designed for LBP (Low Back Pressure) applications
• Uses R-12 refrigerant
• Operates on 100V ~ 50Hz / 115V ~ 60Hz voltage/frequency

Product Highlights

The TECUMSEH AEA2413AXA is ideal for refrigeration applications requiring low back pressure and R-12 refrigerant.

Product Information

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: AEA2413AXA

Technical Specifications

• Product Family: AE
• Status: Discontinued
• Application: LBP
• Product Technology: Reciprocating
• Refrigerant: R-12
• Voltage: 100V 1PH 50Hz, 115V 1PH 60Hz
• Agency: CURUS
• Compressor Cooling: Fan
• Displacement (CC): 14.176
• Oil Charge: 384 cc
• Oil Type: Synthetic_Alkylate
• Viscosity: 32
• Evaporating Range: -40°C to -12.2°C (-40°F to 10°F)
• Horse Power: 1/3 HP
• Motor Torque: High Start Torque (HST)
• LRA: 30.2
• Motor Resistance - Main: 1.36
• Motor Resistance Start: 6.59
• Motor Type: CSIR
• RLA 60HZ: 4.8
• Voltage Frequency: 50Hz~60Hz
• Voltage Range 50Hz: 90to110
• Voltage Range 60Hz: 103to127
• URI Part Number: AEA2413AXA
• Vendor Part Number: AE255AT671J7
• Connection Discharge (In.): 1/4 S
• Connection Suction (In.): 3/8 S
• Connection Type: Sweat
• Mount (In.): 6.5 x 4.0
• Rated Load Amps: 4.8
• Dimensions - Height: 7.969 IN
• Dimensions - Width: 5.907 IN
• Dimensions - Length: 9.969 IN
• Discharge Line Size: 0.25 IN
• Overload Type: EXTERNAL
