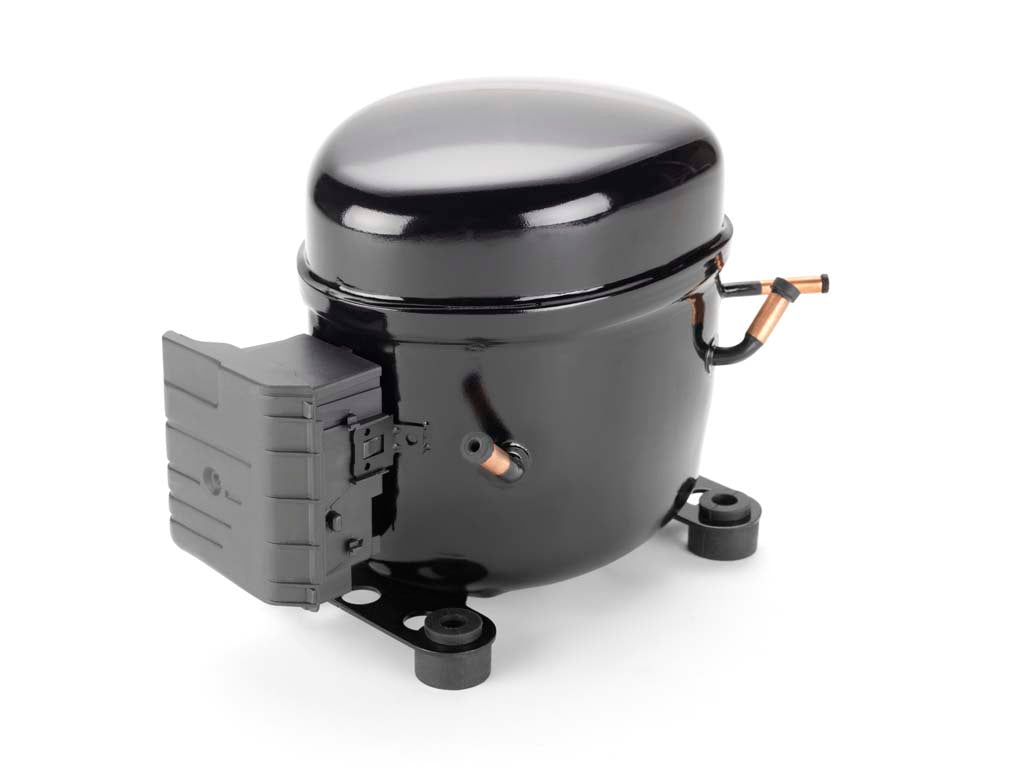

Tecumseh AE210AT-603-J7 AEA1411EXA Reciprocating Compressor 1/4 HP

Product Description

The TECUMSEH AE210AT-603-J7 is a 1/4 HP reciprocating compressor designed for low back pressure (LBP) applications and utilizes R-22 refrigerant. This hermetic compressor operates on 115V and delivers 1200 BTU. It features thermal protection and is suitable for use in various refrigeration systems.

• Hermetic reciprocating compressor
• Operates on 115V, 50/60 Hz
• Uses R-22 refrigerant

Product Highlights

The TECUMSEH AE210AT-603-J7 compressor is ideal for refrigeration applications requiring a reliable and efficient hermetic reciprocating compressor.

Product Information

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: AE210AT-603-J7
• Country of Origin: USA

Technical Specifications

• Brand: Tecumseh
• BTU Output: 1200
• Compressor Housing: Hermetic
• Compressor Type: Reciprocating
• Cycle/Hertz: 50/60 Hz
• Evaporating Temperature: -10°F (-23.33°C)
• Height: 10.2
• Length: 13.2
• Motor HP: 1/4 HP
• Mounting Dimensions: 4" x 6 1/2"
• Oil Charge Initial (oz.): 296 cc
• Oil Type: Synthetic_Alkylate
• Phase: Single
• Prop 65: Yes
• Protection: Thermally Protection
• Rated Load Amps (RLA): 4.5
• Refrigerant: R-22
• Return Gas Temperature: -10°F (-23.33°C)
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size: 5/16"
• UL Listed: Yes
• Voltage: 100-115 VAC
• Width: 10
• Country of Origin: USA
• MPN: AE210AT-603-J7
• Horsepower: 1/4HP
• Application: Low Temp
• Agency Approval: CURUS
• Discharge Line Size: 1/4 in (6.35mm)
• Displacement (CC): 8.948
• Oil Charge: 296 cc
• Viscosity: 32
• Evaporating Range: -34.4°C to -12.2°C (-30°F to 10°F)
• Motor Torque: Low Start Torque (LST)
• RLA 60HZ: 4.5
• Voltage Frequency: 50Hz~60Hz
• Voltage Range 50Hz: 90to110
• Voltage Range 60Hz: 103to127
• Model: AEA1411EXA
• Type: Reciprocating
• Version: AE Series
• LRA: 31
• Overload Type: External
• Motor Resistance - Main: 1.4
• Motor Resistance Start: 12.42
• Relay Type: Current Relay
• Motor Type: CSIR
