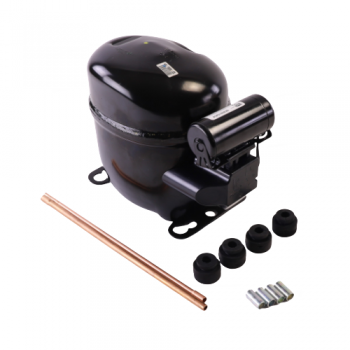

Tecumseh ae1154e-209-j7 Single-phase Reciprocating Compressor 115V 5583 Btu R134A

Product Description

The Tecumseh AE1154E-209-J7 is a single-phase reciprocating compressor built for high back pressure refrigeration applications. It operates on 115 volts at 60 Hz and delivers a refrigeration capacity of 5583 BTU. This compressor is rated at 3/7 horsepower and is designed for use with R134A refrigerant only. It uses an RSIR/CSIR induction run motor with high start torque, making it well suited for systems that demand reliable startup performance under load. HVAC and refrigeration technicians will recognize this unit as a dependable workhorse for commercial and light commercial refrigeration equipment. The discharge line size is 1/4 inches and the suction line size is 5/16 inches ODF, allowing straightforward integration into standard refrigeration line sets. As a standard-efficiency reciprocating compressor, the AE1154E-209-J7 follows Tecumseh's proven design approach for durability and consistent performance in demanding environments. This unit is also cross-referenced as AE4450Y-AA1A, which is useful when sourcing replacement units or verifying compatibility with existing system documentation. Compatible replacement parts include the K146-55 motor start capacitor, the K71-41 overload relay, and the K90-61 overload kit, making field servicing and maintenance straightforward. Refrigeration contractors, HVAC technicians, and equipment repair professionals working on reach-in coolers, display cases, or other R134A-based refrigeration systems will find this compressor a reliable direct replacement or new-install option. Always verify refrigerant type, voltage, and line sizing against the existing system specifications before installation.

• Single-phase reciprocating compressor rated at 5583 BTU and 3/7 horsepower for high back pressure refrigeration systems
• Operates at 115V, 60 Hz with RSIR/CSIR induction run motor and high start torque for dependable startup performance
• Compatible with R134A refrigerant and features a 1/4 inches discharge line and 5/16 inches ODF suction line

Product Highlights

The Tecumseh AE1154E-209-J7 delivers proven reciprocating compressor performance for R134A refrigeration systems, combining high back pressure capability with an RSIR/CSIR motor design that supports reliable single-phase operation in commercial refrigeration applications.

Product Information

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: AE1154E-209-J7

Technical Specifications

• Horsepower: 3/7 HP
• Capacity: 5583 BTU
• Voltage: 115V
• Hertz: 60 Hz
• Number of Phases: 1
• Motor Type: RSIR/CSIR
• Motor Torque: High Start Torque
• Refrigerant: R134A
• Discharge Line Size: 1/4 inches
• Suction Line Size: 5/16 inches ODF
