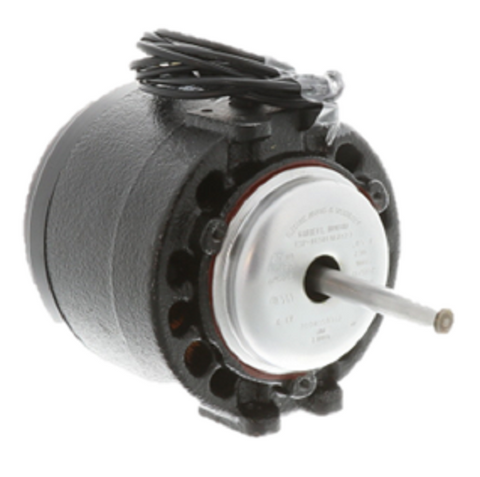

Tecumseh 810M050A62 factory replacement watt motor 50 watt

Product Description

The TECUMSEH 810M050A62 is a factory replacement fan motor rated at 50 watts. This 230-volt, 1500 RPM, CCW motor is designed for various applications including blowers, fans, and pumps. It features a compact design with a rolled steel frame and aluminum flange for durability and corrosion resistance, suitable for industrial and commercial refrigeration applications. This motor ensures consistent airflow and thermal stability.

• Factory replacement fan motor with a 50-watt rating.
• Operates at 230 volts and 1500 RPM with counter-clockwise rotation.
• Features a durable rolled steel frame and aluminum flange for corrosion resistance.

Product Highlights

This 50W motor is engineered for precision in HVAC replacement, commercial refrigeration, and industrial ventilation systems.

Product Information

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: 810M050A62

Technical Specifications

• MPN: 810M050A62
• Product Type: Electric Motor
• Manufacturer: Tecumseh
• Brand: Tecumseh
• Model Number: 810M050A62
• Wattage: 50W
• Input Voltage: 208-230V AC (Single Phase)
• RPM: 1500
• Rotation: CCW (Counter-Clockwise)
• Frame Material: Rolled steel
• Flange Material: Aluminum
• Motor Type: Shaded pole or unit bearing
• Application: Commercial refrigeration, industrial ventilation, condenser fans, blowers, air-moving applications
• Amperage: 0.85A
• Enclosure Type: Open
• Mounting Type: Double Foot Pads
• Shaft Dimension: 5/16 inch x 2.5 inch
• Number of Shafts: 1
• Frequency: 60 Hz
• Shaft Type: Flat
• Length Less Shaft: 3.625 inch
• Frame Size: 3.3 inch
