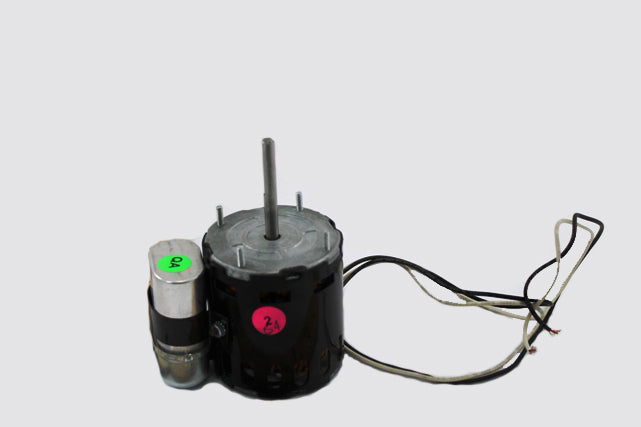

Tecumseh 810F050C20 Permanent Split Capacitor Fan Motor 1/15 hp 230 V 5 uF at 370V

Product Description

The Tecumseh 810F050C20 is a Permanent Split Capacitor fan motor designed for HVAC applications. This motor provides efficient operation with a power rating of one-fifteenth horsepower and a voltage rating of two hundred thirty volts. It is suitable for one-phase systems and operates at speeds of fifteen hundred and thirteen hundred revolutions per minute.

• Permanent Split Capacitor design
• Rated for 230 V and 1 A
• Includes thermal protection

Product Highlights

This fan motor is ideal for use in a variety of HVAC equipment, providing reliable performance in both heating and cooling systems.

Product Information

Standard Information

• Manufacturer: Tecumseh Products Company
• Power Rating: 1/15 hp

Technical Specifications

• Type: Permanent Split Capacitor
• Speed: 1500/1300 Rpm
• Voltage Rating: 230 V
• Amperage Rating: 1 A
• Frequency Rating: 50/60 Hz
• Rotation Type: CW
• Capacitor: 5 uF at 370 V
• Thermal Protection: Yes
