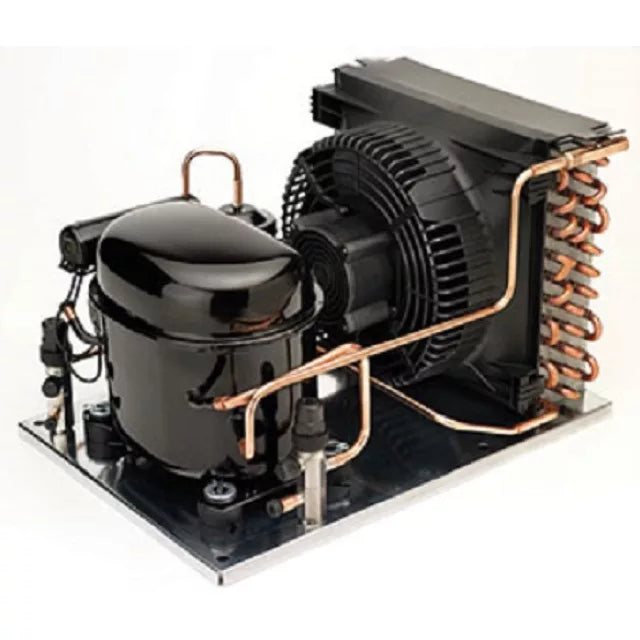

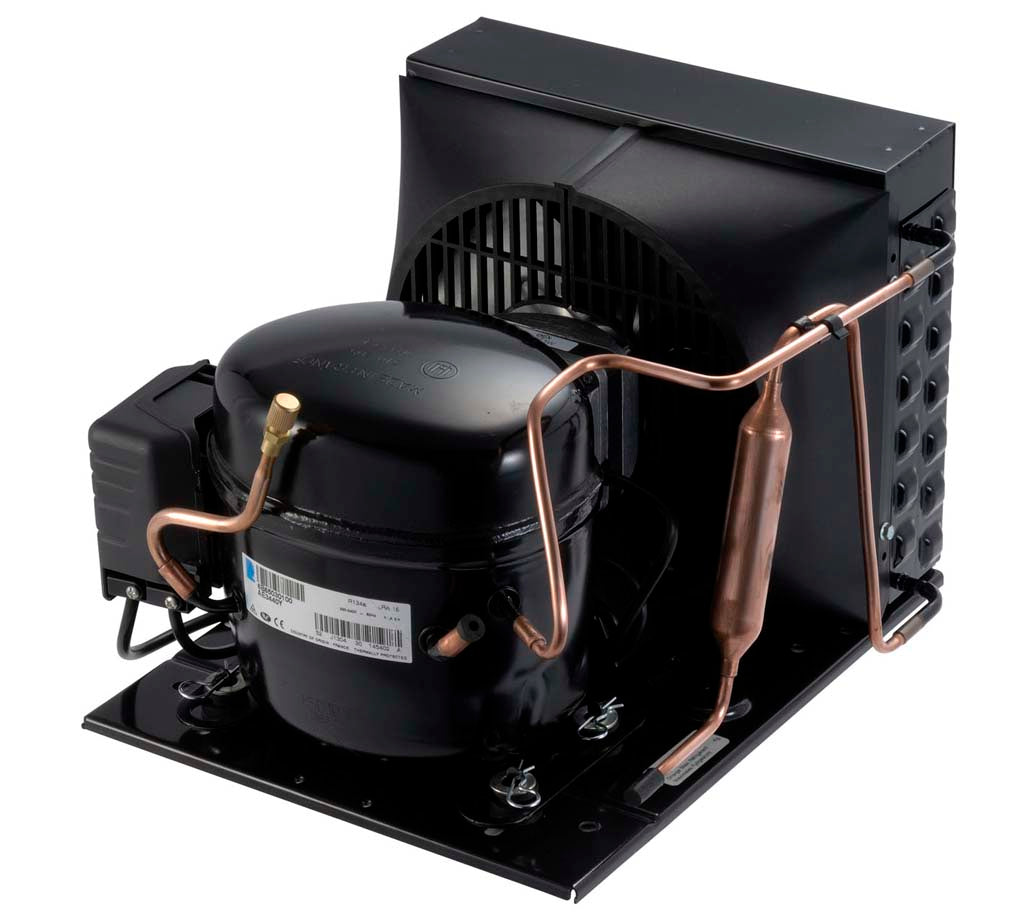

TECUMSEH 33Y360-59 Ae Indoor - Condensate 1/3 HP

Product Description

The TECUMSEH 33Y360-59 Ae indoor condensate is suitable for high back pressure applications. This unit uses a reciprocating compressor and tube-fin coil, operating effectively with R-134a or R-513A refrigerant. It runs on 115 volts at sixty hertz, delivering an airflow of two hundred forty cubic feet per minute.

• Designed for high back pressure applications
• Utilizes R-134a or R-513A refrigerant
• Features a reciprocating compressor for improved efficiency

Product Highlights

This condensing unit is ideal for HVAC professionals looking to manage indoor spaces efficiently. Its compact size and powerful output make it suitable for various installations.

Product Information

Standard Information

• MPN: 33Y360-59
• Brand: TECUMSEH

Technical Specifications

• Dimensions: Height: 10.3 inches, Width: 9.7 inches, Length: 19 inches
• Discharge Line Size: 1/4 inches (6.35 mm)
• Suction Line Size: 5/16 inches (7.93 mm)
• Air Flow: 240 cubic feet per minute
• Fan Motor Quantity: 1
• Pump Down Capacity: 2.47 pounds
• Design Pressure Low: 150 psi
• Design Pressure High: 300 psi
• Fan Motor RLA: .58
• Max. Fuse Size: 15 amps
• Min. Circuit Ampacity: 7.86 amps
• Compressor: AE1022E-212-J7
• Compressor #: AE4440Y-AA1A
• HP: 1/3
• Liquid Connection: 3/8 inches ODF
• Min. Circuit Amps: 7.9
• Phase: 1
• Receiver Capacity: 2.5 lbs
• Refrigerant: R-134a
• Suction Connection: 3/8 inches ODF
• Volts: 115V
• BTU: 4000
• Height: 10.3 inches
• Horsepower: 1/3 hp
• Liquid Line OD: 1/4 inches
• Suction Line OD: 5/16 inches
