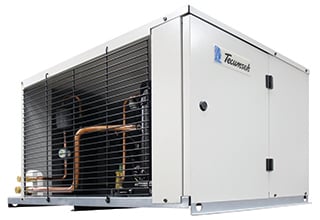

Tecumseh 32L11212ET2 AWA2444ZXTHG 2H1194-20 Outdoor Condensing Unit 200-230V/60Hz

Tecumseh AWA2444ZXTHG 2H1194-20 Outdoor Condensing Unit 200-230V/60Hz

Description:
Air-cooled low and medium temperature condensing unit platform with both indoor and outdoor options. Focusing on the 1/2 to 6 HP capacity range, Tecumseh ARGUS is ideal for walk-in coolers and freezers and provides restaurant, grocery stores and convenience stores unmatched performance and configurability which keeps produce and other products at optimal freshness.

Specifications:
Low Temperature Rated @ -10F
Ref: R-404A
Model Number: AWA2444ZXTHG
Unit Bill of Material: 2H1194-20
Volt/Hz/Ph: 200-230/60/3
HP: 1
Starting Torque: 3 PH
Capacity (Btu/h) at 90F Ambient Evaporator Temperature (F)
-30: 2,140
-20 : 3,245
-10: 4,445
0 : 5,738
10: 7,126
Dimensions (in) L: 34.6
Dimensions (in) W: 28.9
Dimensions (in) H: 26.5
Connection Size (in) Suction: 5/8 ODF
Connection Size (in) Liquid: 3/8 ODF
Wt (Lbs): 350
