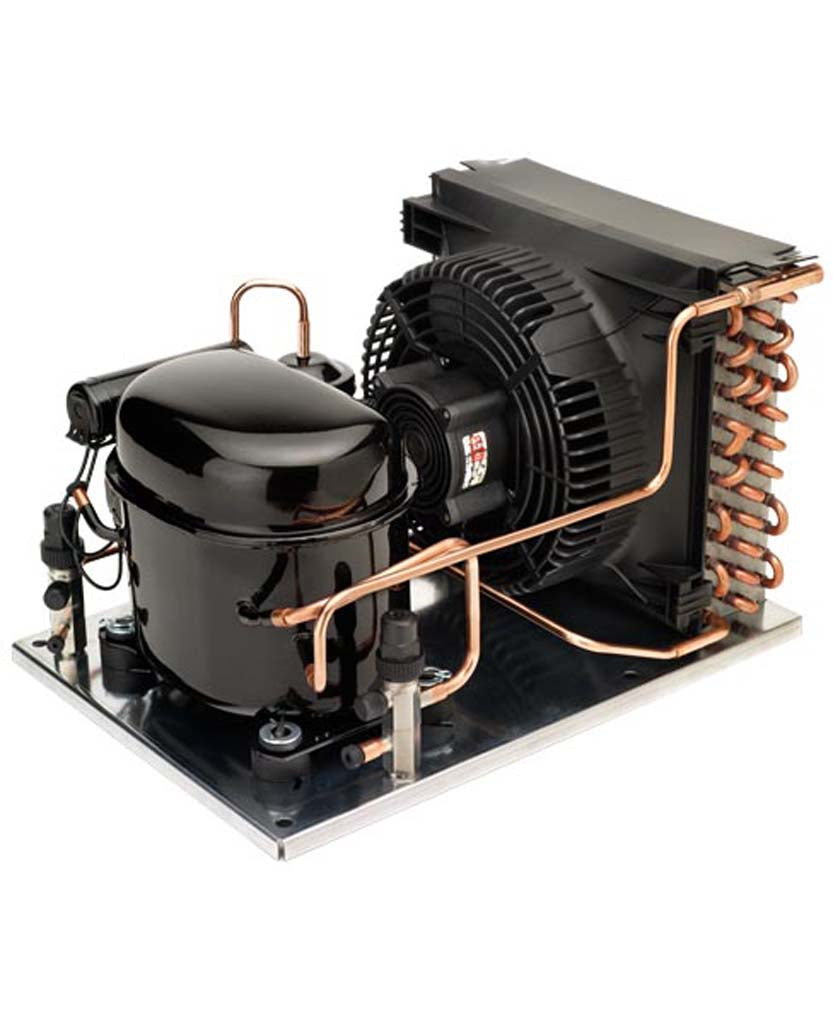

Tecumseh 2G220-59 condensing unit 115V 1PH 60Hz AJ4461A-AA1ADC

Product Description

The TECUMSEH 2G220-59 is a discontinued indoor reciprocating compressor condensing unit designed for HBP applications. It operates on 115V 1PH 60Hz and uses R-12 refrigerant. This air-cooled unit features a tube-fin coil and has a 1/2 HP motor. It is suitable for high back pressure systems, offering an air flow of 185 CFM and a pump down capacity of 2.8 Lb.

• Indoor reciprocating compressor unit for HBP applications
• Operates on 115V 1PH 60Hz with R-12 refrigerant
• Features a tube-fin coil and 1/2 HP motor

Product Highlights

Discontinued indoor air-cooled condensing unit for HBP applications, operating on 115V 1PH 60Hz with R-12 refrigerant.

Product Information

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: 2G220-59

Technical Specifications

• Status: Discontinued
• Global Model: AJA4456AAADC
• Application: HBP
• Brand Version: Celseon
• Coil Type: Tube - Fin
• Compressor Family: AJ
• Compressor Technology: Reciprocating
• Refrigerant: R-12
• Unit Type: Indoor
• Voltage: 115V 1PH 60Hz
• Air Flow: 185 CFM
• Discharge Line Size: 3/8 in
• Fan Motor Quantity: 1
• Suction Line Size: 5/8 in
• Compressor Model: AJA4461AXA
• Cooling Type: Air Cooled Unit
• Design Pressure High: 350
• Design Pressure Low: 150
• Evaporating Temperature Range: -6.7°C to 12.8°C (20°F to 55°F)
• Horse Power: 1/2 HP
• Motor Torque: High_Start_Torque_HST
• Maximum Ambient Temperature: 110
• Maximum Evaporation Temperature: 55
• Minimum Ambient Temperature: 80
• Minimum Evaporation Temperature: 10
• Pump Down Capacity: 2.8 Lb
• Condenser Included: Y
• Fan Motor Included: Y
• High Pressure Switch Included: Y
• Low Pressure Switch Included: Y
• Power Cord Included: Y
• Receiver Included: Y
• Start Capacitor Included: Y
• Fan Motor RLA: 0.38
• LRA: 47
• RLA 60HZ: 9.1
• LRA Start: 47
• Voltage Frequency: 60Hz
• Maximum Fuse Size: 20
• Minimum Circuit Ampacity: 11.8
• Overload Included: Y
• Overload Type: External
• Primary Relay Included: Y
• Relay Type: Current Relay
• Start Cap Kit: K146-16
• Overload Kit: K90-96
• Relay Kit: K71-02
