Tecumseh 2G212-59 refrigeration condensing unit 1/2 hp 115 vac extended medium temperature r404a

Product Description

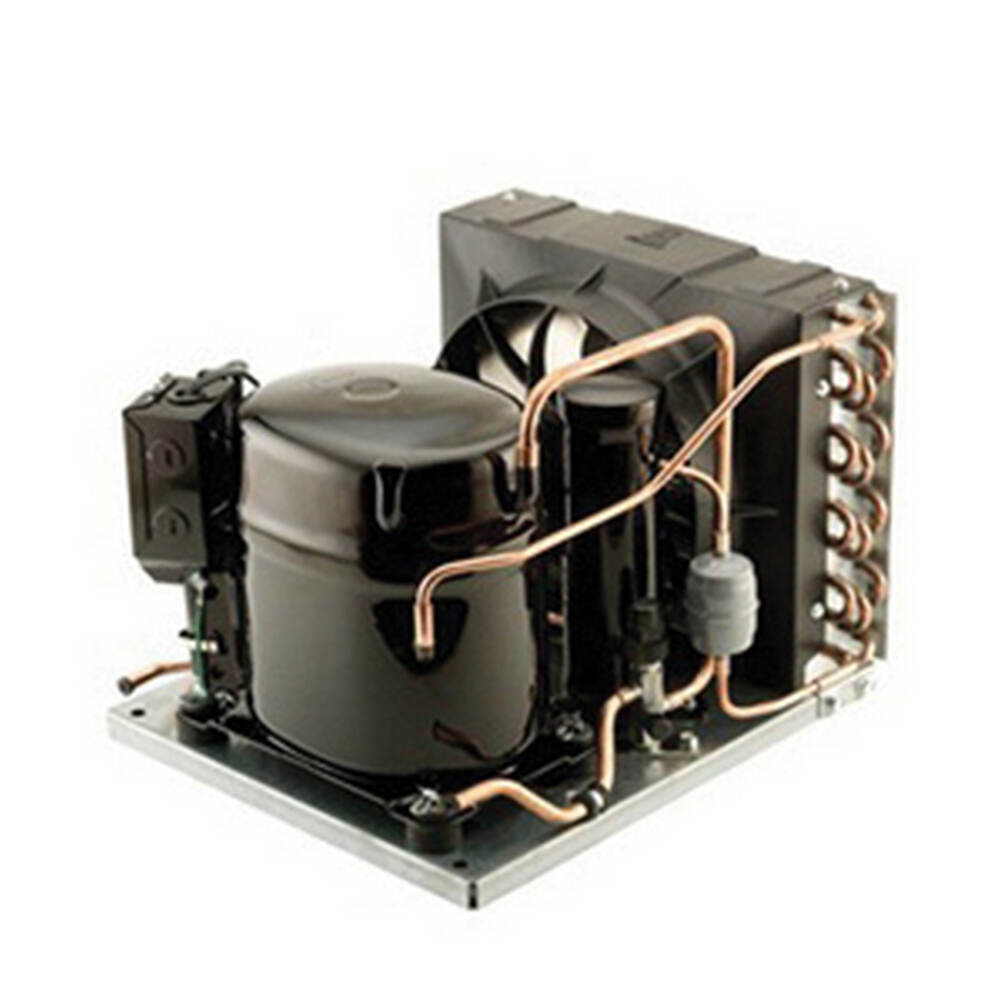

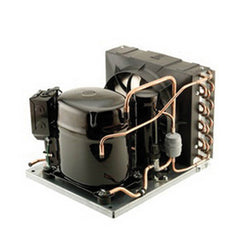

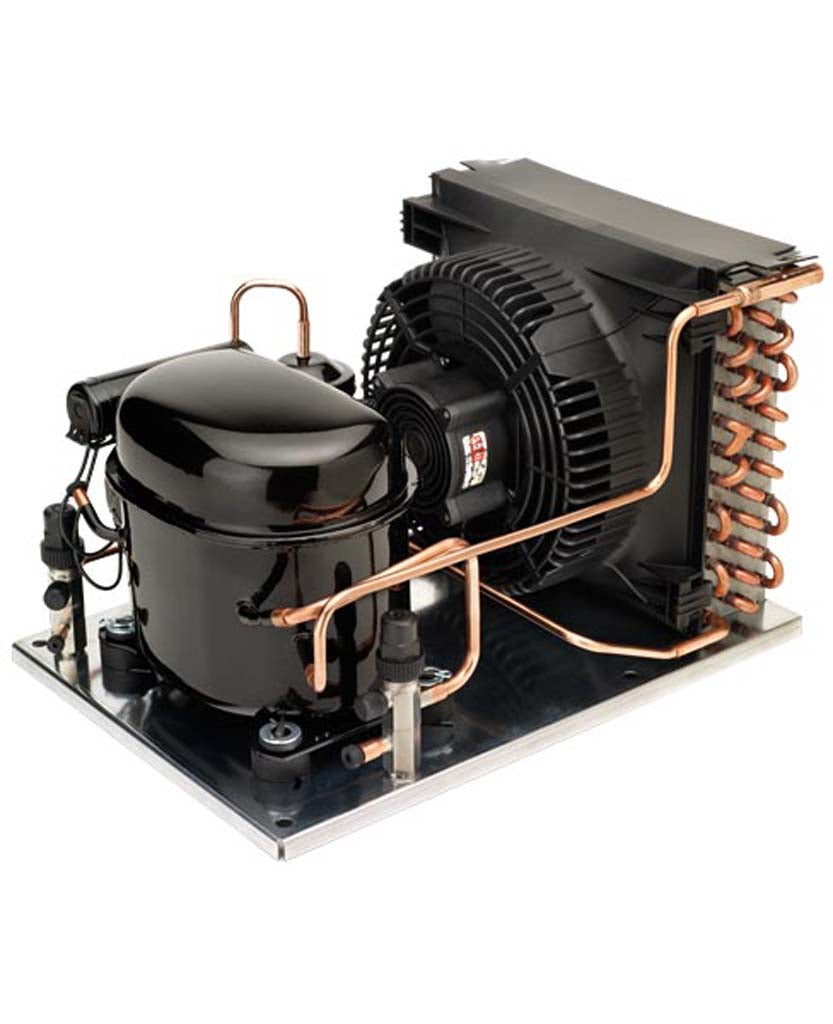

The TECUMSEH 2G212-59 is a hermetic refrigeration condensing unit, featuring a 1/2 HP motor and operating on 115 VAC. Designed for extended medium temperature applications, it utilizes R404A refrigerant. This unit is suitable for commercial back pressure (CBP) applications, providing an airflow of 230 Cubic Feet per Minute. It is an indoor air-cooled unit with a Tube-Fin coil type.

• Hermetic design for refrigeration applications
• 1/2 HP motor with 115 VAC operation
• Designed for extended medium temperature and R404A refrigerant

Product Highlights

This TECUMSEH 2G212-59 unit is an indoor air-cooled hermetic condensing unit, ideal for commercial refrigeration with R404A refrigerant.

Product Information

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: 2G212-59

Technical Specifications

• Horsepower: 1/2 HP
• Refrigerant: R404A
• Temperature Range: Extended Medium
• Input Voltage: 115V 1 Phase 60Hz
• Condensing Unit Type: Indoor - Air Cooled Hermetic
• Model: AKA9442ZAADC
• Brand Family: Celseon
• Application: CBP - Commercial Back Pressure
• Coil Type: Tube - Fin
• Discharge Line Size: 3/8 in
• Suction Line Size: 5/8 in
• Air Flow: 230 Cubic Feet per Minute
• Fan Motor Quantity: 1
• Pump Down Capacity: 2.7 Pounds
• Design Pressure Low: 181
• Design Pressure High: 450
• Fan Motor RLA: 0.85
• Max Fuse Size: 20
• Min Circuit Ampacity: 12.4
• Compressor: AK175AR-B37-J7
• Overload Kit: K90-37
• Start Cap Kit: K146-52
• Relay Kit: K71-02
• Nominal Capacity: 4237 BTU/h
