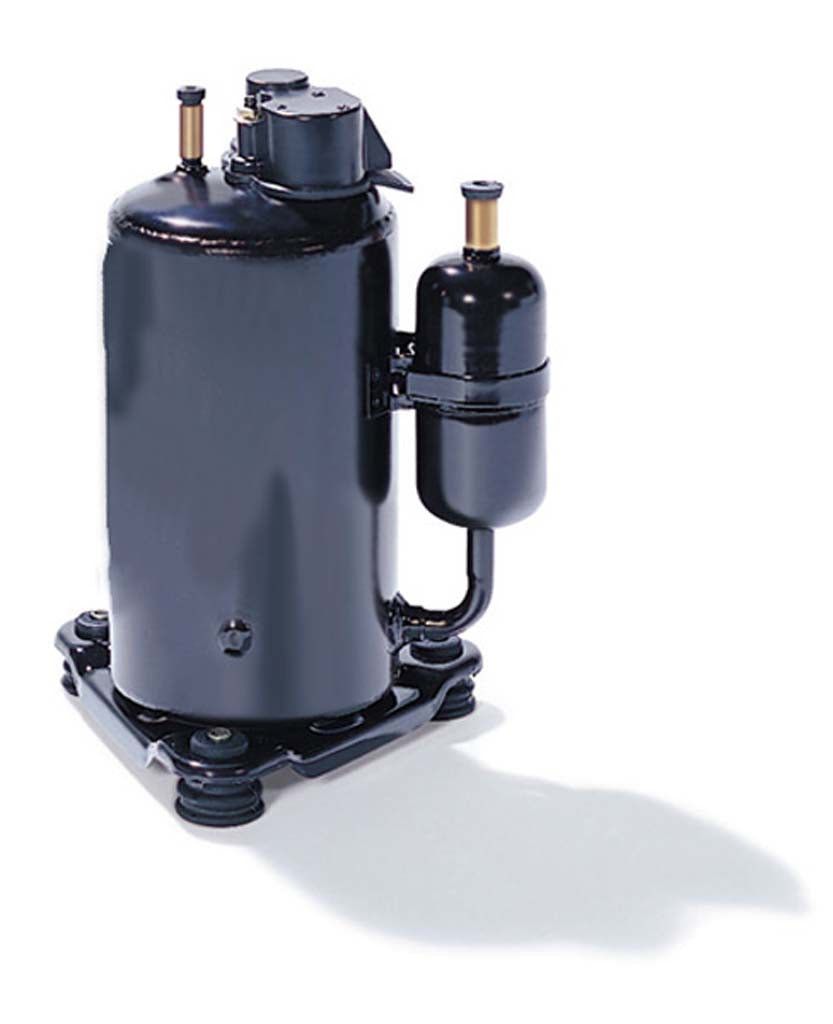

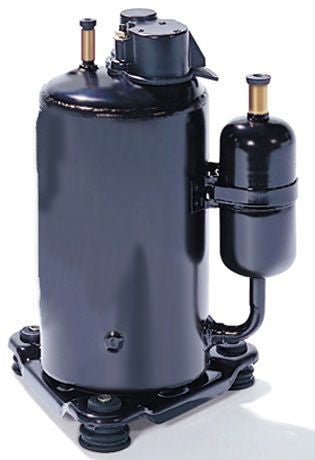

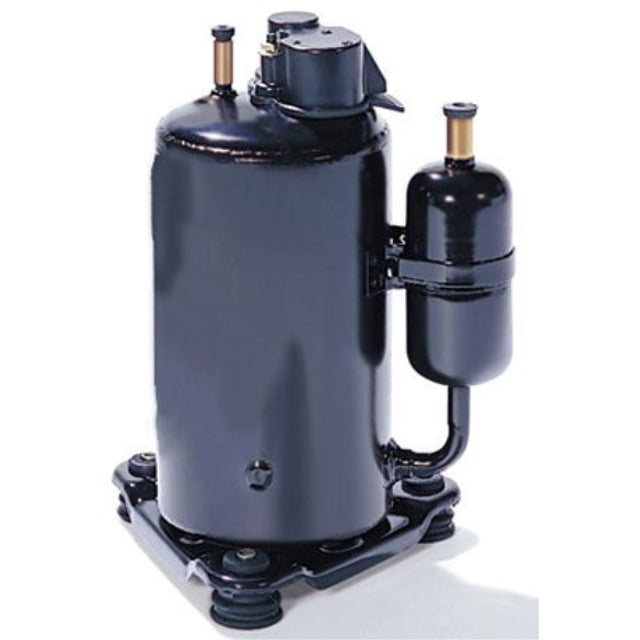

Tecumesh RK5ER1DC270J70 RK5519E-NA3A Compressor 19000 BTU/Hour

Product Description

The Tecumesh RK5ER1DC270J70 RK5519E-NA3A is a rotary compressor designed for air conditioners and heat pumps. It features a capacity of 19000 BTU/Hour and is designed to use R22 refrigerant and synthetic alkylate oil. The compressor is UL Listed for Canada and the US and has a height of 14.651 inches.

• Designed for air conditioners and heat pumps
• Uses R22 refrigerant and synthetic alkylate oil
• UL Listed for Canada and US

Product Highlights

The Tecumesh RK5ER1DC270J70 is a rotary compressor with a capacity of 19000 BTU/Hour, suitable for air conditioning and heat pump applications.

Product Information

Standard Information

• Brand: Tecumesh
• Manufacturer Part Number: RK5ER1DC270J70
• Country of Origin: CHINA

Technical Specifications

• Item: Rotary Compressor
• Category: HVAC/R & Fans
• Applicable Standard: UL (Canada and US)
• Series/Model: RK5519E-NA3A, RK2
• Used On Item: Air Conditioner, Heat Pump
• Manufacturer Name: Tecumesh
• Manufacturer Part Number: RK5ER1DC270J70
• Catalog Number: RK5ER1DC270J70
• Commodity Code Description Level 5: Air Conditioner Compressors
• Oil Type: Synthetic Alkylate
• Refrigerant Type: R22
• Motor Type: Permanent Split Capacitor
• Starting Torque: High
• Capacity: 19000 BTU/Hour
• Voltage Rating: 208/230 Volt AC 60 Hertz 1-Phase
• Current Rating: 14.3 Amp (RLA), 98 Amp (LRA), 22 Amp (MCC), 19 Amp (MOC)
• Resistance: 1.7 Ohm (Main), 3.36 Ohm (Start)
• Type: Rotary
• Product Type: Compressor
• Application: HBP/AC - Air Conditioning
• Voltage: 208/230V
• Refrigerant: R-22
• Horse Power: 1-1/2
• Suction Connection: 1-1/8 Inch ODF Soldered
• Discharge Connection: 7/8 Inch ODF Soldered
• Speed Rating: 2900 RPM at 50 Hertz, 3500 RPM at 60 Hertz
• Viscosity: 32 Centipoise
• Enclosure Rating: IP54
• Connection Type: Brazed, Screw
• Includes: Polyol Ester Oil
• Frequency: 60
• Motor Phase: 1
• Oil Recharge: 1.16236 pints
• Technology: Rotary
• Discharge Line Size: 3/8 in (9.52mm)
• Suction Line Size: 1/2 in (12.7mm)
