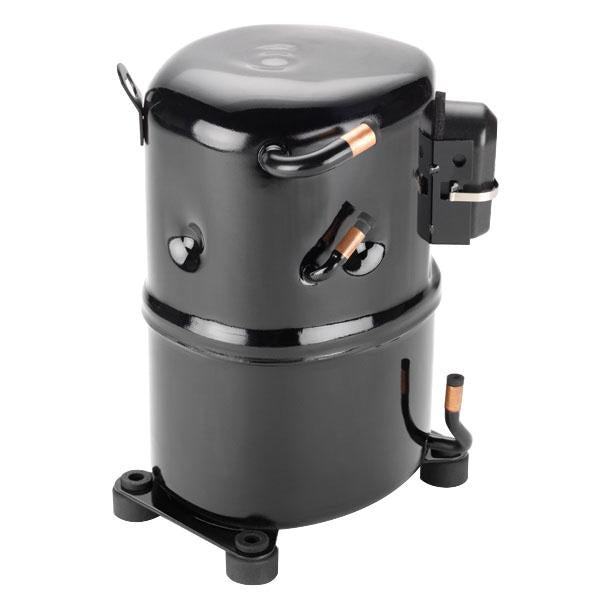

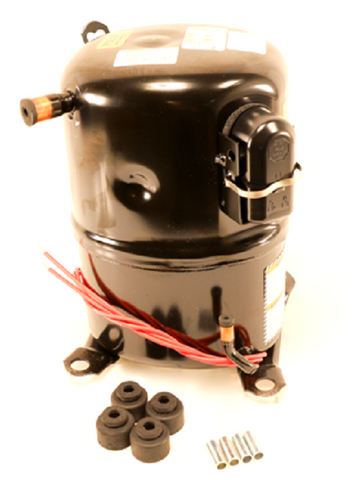

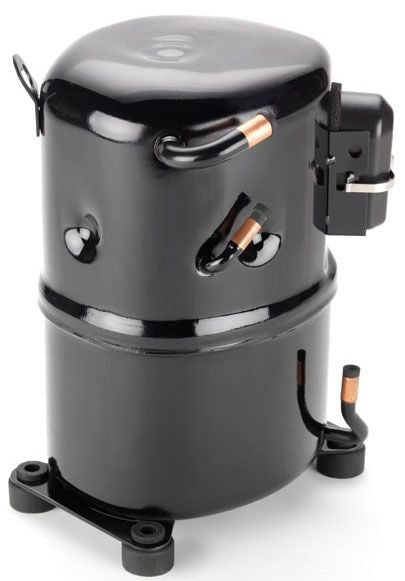

Tecumesh AW705ET-093-J7 Air Conditioner Reciprocating Compressor 2 HP AWG5524EXN

Product Description

The Tecumesh AW705ET-093-J7 is a reciprocating compressor designed for air conditioning and refrigeration applications. It features a capacity of 24200 BTU/Hour and operates at 208/230 Volt AC 60 Hertz 1-Phase. The compressor has a 3/4 Inch ODF suction line and a 3/8 Inch ODF discharge line and uses polyolester oil and R22 refrigerant.

• Used on Air Conditioner and Refrigeration systems
• UL (Canada and US) standard compliance
• 24200 BTU/Hour capacity

Product Highlights

The Tecumesh AW705ET-093-J7 is a 2 HP reciprocating compressor for air conditioning and refrigeration, designed for reliability and efficiency.

Product Information

Standard Information

• Brand: Tecumesh
• Manufacturer Part Number: AW705ET-093-J7

Technical Specifications

• Item: Reciprocating Compressor
• Used On Item: Air Conditioner, Refrigeration
• Applicable Standard: UL (Canada and US)
• Oil Type: Polyolester
• Refrigerant Type: R22
• Motor Type: PSC
• Starting Torque: Normal
• Capacity: 24200 BTU/Hour
• Voltage Rating: 208/230 Volt AC 60 Hertz 1-Phase
• Current Rating: 11 Amp (Load Rated), 60 Amp (Locked Rotor), 18.3 Amp (MCC)
• Power Rating: 2 HP
• Connection Size: 3/4 Inch ODF (Suction), 3/8 Inch ODF (Discharge)
• Resistance: 1.09 Ohm (Main), 2.53 Ohm (Start)
• Temperature Rating: 45 Deg F
• CATALOG NUMBER: AW705ET-093-J7
• COMMODITY CODE DESCRIPTION Level 5: Air Conditioner Compressors
• Category: HVAC/R & Fans
• Manufacturer Name: Tecumesh
• Manufacturer Part Number: AW705ET-093-J7
• Series/Model: AWG5524EXN
• UNSPSC Code: 40151606
• Discharge Line Size: 3/8 in (9.52mm)
• Suction Line Size: 3/4 in (19 mm)
• Grommet: Y
• Terminal Cover: Y
• Displacement (CC): 43.1
• Compressor Cooling: Fan
• Oil Charge: 1140 cc
• Viscosity: 32
• Motor Torque: Low Start Torque (LST)
• Evaporating Range: -23.3°C to 12.8°C (-10°F to 55°F)
• Agency: CURUS, KTL
• Mounting Parts: Y
• Overload: Y
• Overload Type: Internal
• LRA: 60
• MCC: 18.3
• Motor Resistance - Main: 1.09
• Motor Resistance Start: 2.53
• RLA 60HZ: 11
• Voltage Frequency: 50Hz~60Hz
• Voltage Range 50Hz: 180to242
• Voltage Range 60Hz: 187to254
• Brand: Tecumseh
• MPN: AW705ET-093-J7
• Model: AWG5524EXN
• Application: Air Conditioning, High Back Pressure
• Refrigerant Rating: R22
• BTU Rating: 24,200 BTU
• Compressor Connection: ODF
• Motor Phase: 1 Ph
• Motor Voltage: 208-230V
• Motor Hertz: 60 Hz
• Compressor Type: Reciprocating (Model: AWG5524EXN)
