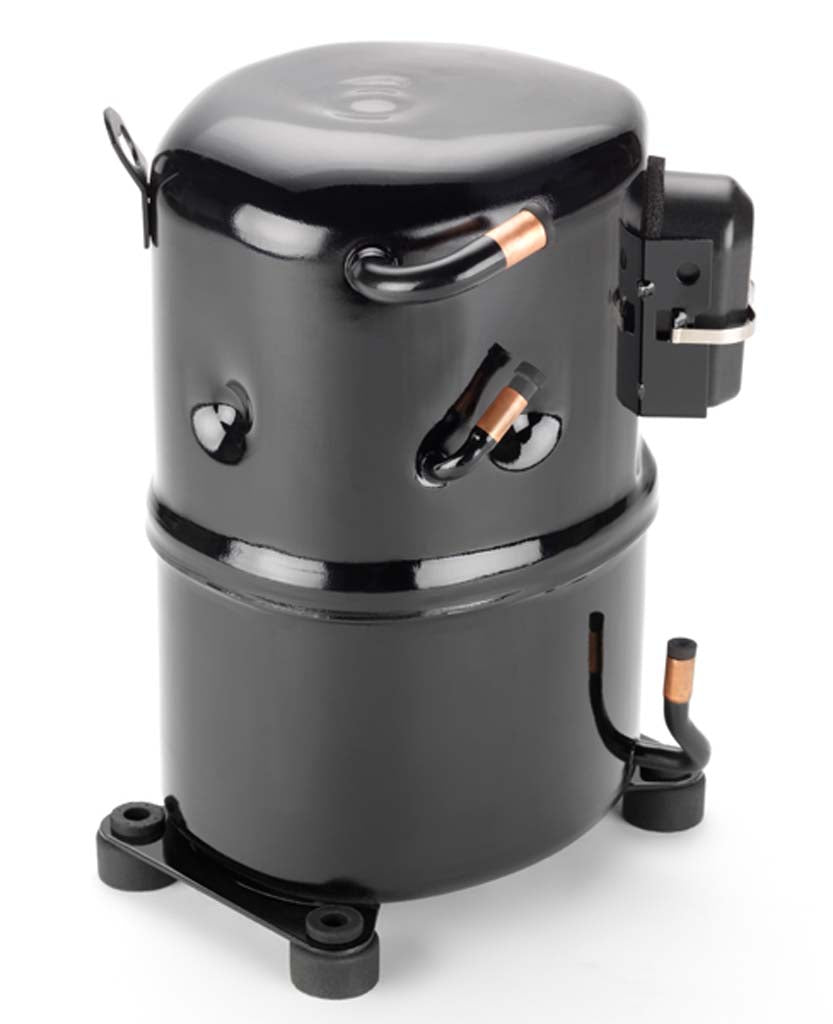

Tecumesh AW613ET-111-J7 Reciprocating Compressor 1-1/2 HP AWA2460ZXD

Product Description

The Tecumesh AW613ET-111-J7 is a reciprocating compressor designed for air conditioning and refrigeration applications. It operates on 208/230 Volt AC at 60 Hertz, single-phase power, and uses R404A/R507 refrigerant. The compressor features a capacitor start/run motor and provides a capacity of 6300 BTU/Hour with 1-1/2 HP power.

• Designed for low back pressure (LBP) applications.
• Utilizes R-404A/R507 refrigerant.
• Features high starting torque and fan cooling.

Product Highlights

This reciprocating compressor is suitable for air conditioning and refrigeration, offering 6300 BTU/Hour capacity and 1-1/2 HP power.

Product Information

Standard Information

• Brand: Tecumesh
• Manufacturer Part Number: AW613ET-111-J7
• Country of Origin: UNITED STATES

Technical Specifications

• Item: Reciprocating Compressor
• Used On Item: Air Conditioner, Refrigeration
• Applicable Standard: UL (Canada and US), CE
• Oil Type: Polyolester
• Refrigerant Type: R404A/R507
• Motor Type: Capacitor Start/Run
• Starting Torque: High
• Capacity: 6300 BTU/Hour
• Voltage Rating: 208/230 Volt AC 60 Hertz 1-Phase
• Current Rating: 8.2 Amp (Load Rated), 86 Amp (Locked Rotor), 19.6 Amp (MCC)
• Power Rating: 1-1/2 HP
• Connection Size: 1-1/4 Inch RL (Suction), 7/16 Inch ODF (Discharge)
• Resistance: 0.65 Ohm (Main), 2.22 Ohm (Start)
• Temperature Rating: -10 Deg F
• Application: LBP
• Series/Model: AWA2460ZXD
• Manufacturer Name: Tecumesh
• Manufacturer Part Number: AW613ET-111-J7
• Category: HVAC/R & Fans
• Global Model: AWA2460ZXD
• Voltage: 200V 1PH 50Hz, 208-230V 1PH 60Hz
• Refrigerant: R-404A
• Product Technology: Reciprocating
• Discharge Line Size: 3/8 in (9.52mm)
• Suction Line Size: 1-1/4 in (Rotolock)
• Grommet: Y
• Run Capacitor: Y
• Start Capacitor: G21-955
• Terminal Cover: Y
• Displacement (CC): 51.27
• Compressor Cooling: Fan
• Oil Charge: 1141 cc
• Viscosity: 32
• Motor Torque: High Start Torque (HST)
• Evaporating Range: -40°C to -12.2°C (-40°F to 10°F)
• Agency: CE, CURUS
• Mounting Parts: Y
• Overload: Y
• Overload Type: Internal
• LRA: 86
• Relay Type: Potential Relay
• Motor Resistance - Main: 0.65
• Motor Resistance Start: 2.22
• RLA 60HZ: 8.2
• Voltage Frequency: 50Hz~60Hz
• Voltage Range 50Hz: 180to220
• Voltage Range 60Hz: 187to254
• B/M: AW613ET-111-J7
• BtuH Capacity @ -10°F Evap.: 6300
• CCH: No
• Compressor: Reciprocating
• Discharge Conn.: 3/8" IDS
• Mounting Centers: 7-1/2" x 7-1/2"
• Phase: 1
• Relay: B17-889
• Suction Conn.: 1-1/4" ROT. (5/8" IDS)
• Volts: 208/230
• Version: AW Series
• Dimensions - Height: 13.143
• Dimensions - Width: 8.9925
• Dimensions - Length: 10.203
• Dimensions Unit of Measure: IN
• Capicitor Cabinet Assembly: Run Capacitor
• Valve Kit:
