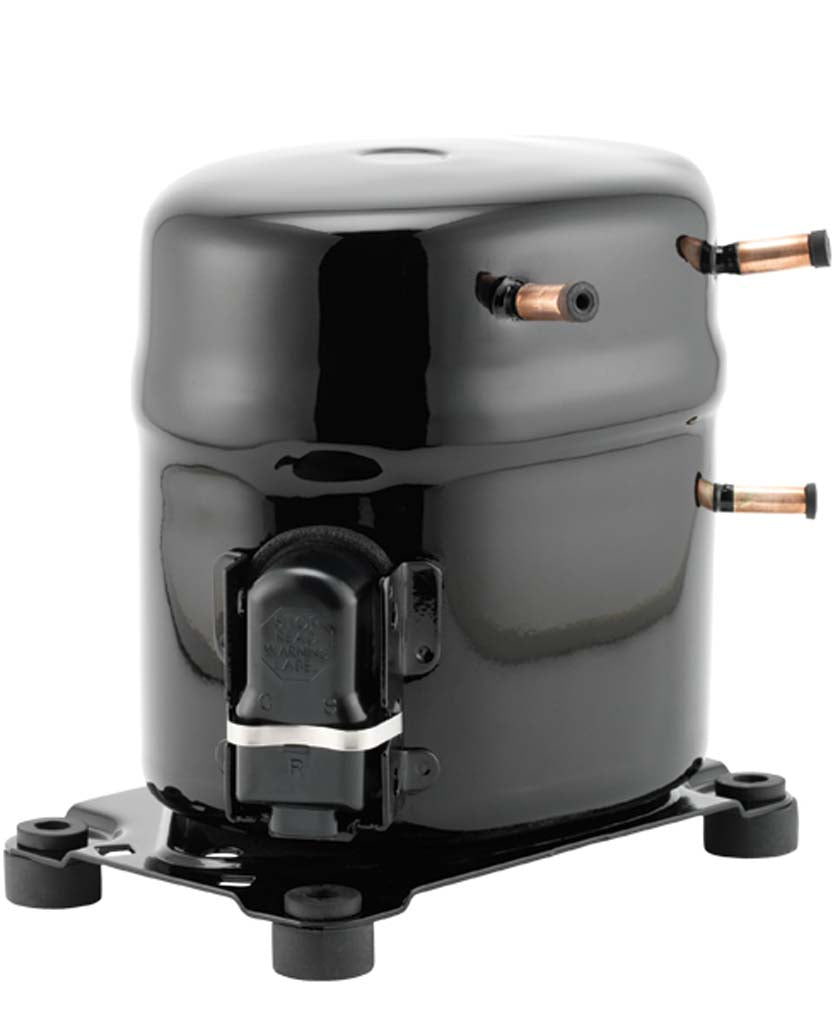

Tecumesh AK166ET-038-J7 Air Conditioner Reciprocating Compressor 3/4 HP AKA9462EXD

Product Description

The Tecumesh AK166ET-038-J7 is a reciprocating compressor designed for air conditioning and refrigeration applications. It features a capacity of 6200 BTU/Hour and operates on 208/230 Volt AC 60 Hertz 1-Phase power. This compressor uses polyolester oil and R22 refrigerant, with a motor type of Capacitor Start/Run and high starting torque. It has been replaced by AKA9462EXD.

• Used in air conditioning and refrigeration systems.
• Operates on 208/230V AC power at 60Hz.
• Features a 1/2 Inch SAE suction and 1/4 Inch ODF discharge.

Product Highlights

Reciprocating compressor for air conditioning and refrigeration with 3/4 HP power and 6200 BTU/Hour capacity.

Product Information

Standard Information

• Brand: Tecumesh
• Manufacturer Part Number: AK166ET-038-J7
• Country of Origin: UNITED STATES

Technical Specifications

• Item: Reciprocating Compressor
• Category: HVAC/R & Fans
• UNSPSC Code: 40151606
• Series/Model: AKA9462EXD
• Used On Item: Air Conditioner, Refrigeration
• CATALOG NUMBER: AK166ET-038-J7
• Manufacturer Name: Tecumesh
• Applicable Standard: UL (Canada and US)
• Additional Information: Oil Type Polyolester; Refrigerant Type R22; Motor Type Capacitor Start/Run; Starting Torque High; Capacity 6200 BTU/Hour; Voltage Rating 208/230 Volt AC 60 Hertz 1-Phase; Current Rating 5.3 Amp (Load Rated), 31 Amp (Locked Rotor), 8.91 Amp (MCC); Power Rating 3/4 HP; Connection Size 1/2 Inch SAE (Suction), 1/4 Inch ODF (Discharge); Resistance 1.77 Ohm (Main), 10.43 Ohm (Start); Temperature Rating 20 Deg F; Application Commercial Back Pressure
• Manufacturer Part Number: AK166ET-038-J7
• COMMODITY CODE DESCRIPTION Level 5: Air Conditioner Compressors
• Global Model: AKA9462EXD
• Application: CBP
• Status: Discontinued
• Voltage: 200V 1PH 50Hz, 208-230V 1PH 60Hz
• Refrigerant: R-22, R-407C
• Product Technology: Reciprocating
• Discharge Line Size: 1/4 in (6.35mm)
• Suction Line Size: 3/4 in (Rotolock)
• Grommet: Y
• Run Capacitor: Y
• Start Capacitor: Y
• Terminal Cover: Y
• Displacement (CC): 20.436
• Compressor Cooling: Fan
• Oil Charge: 512 cc
• Oil Type: Polyolester
• Viscosity: 32
• Horse Power: 3/4 HP
• Motor Torque: High Start Torque (HST)
• Packaging: MULTI
• Evaporating Range: -17.8°C to 10°C (0°F to 50°F)
• Agency: CURUS
• Mounting Parts: Y
• Overload: Y
• Overload Type: External
• LRA: 31
• Relay Type: Potential Relay
• Motor Type: CSR
• MCC: 8.91
• Motor Resistance - Main: 1.77
• Motor Resistance Start: 10.43
• RLA 60HZ: 5.3
• Voltage Frequency: 50Hz~60Hz
• Voltage Range 50Hz: 180to220
• Voltage Range 60Hz: 187to254
• BtuH Capacity @ 20°F Evap.: 6200
• CCH: No
• Compressor: Reciprocating
• Discharge Conn.: 1/4" IDS
• Phase: 1
• Mounting Centers: 4-13/16" x 8"
• Relay: B17-887
• Suction Conn.: 3/4" ROT. (1/2" FL)
• Volts: 208/230
• A2L Compatible: No
• BTU: 6200
• Liquid Line (OD): 1/4 in
• Suction Line (OD): 1/2 in
