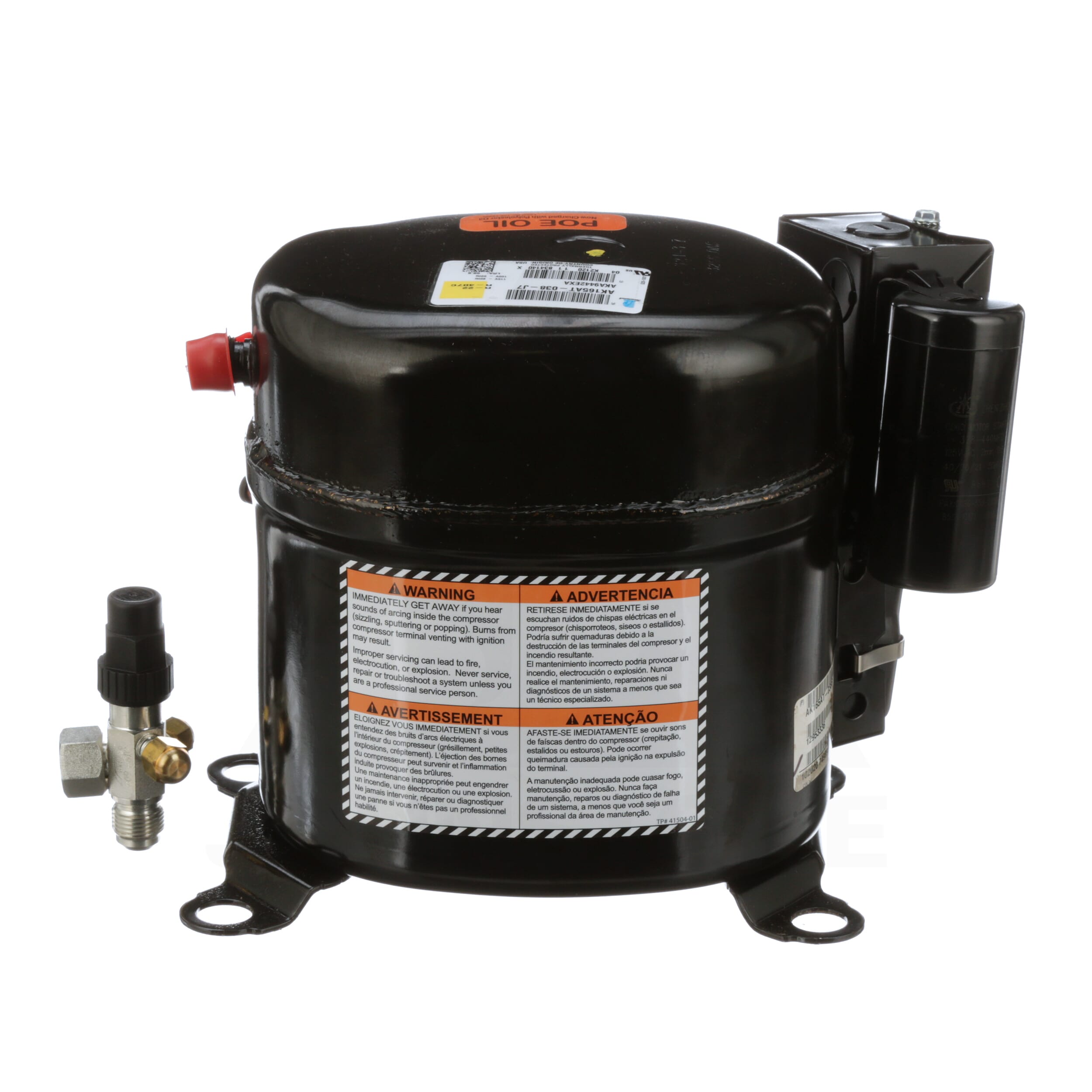

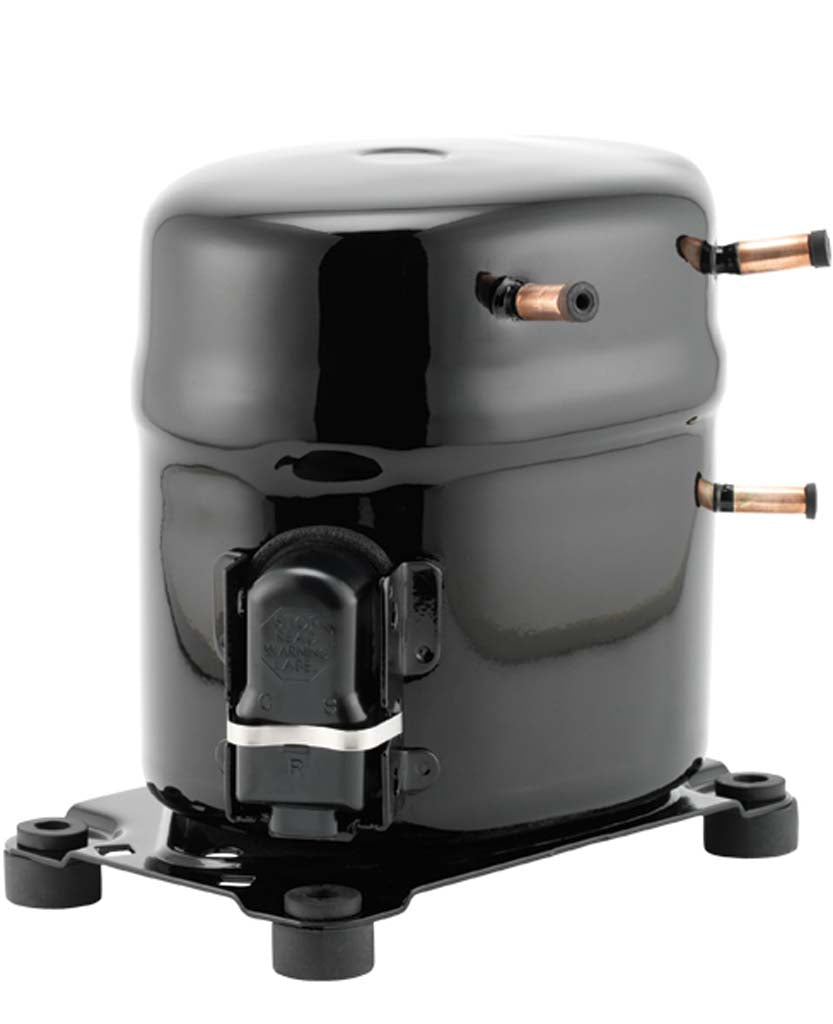

Tecumesh AK165AT-038-J7 Reciprocating Compressor 1/2 HP REPLACEMENT AKA9442EXA

Product Description

The Tecumesh AK165AT-038-J7 is a reciprocating compressor designed for air conditioning and refrigeration applications. It is compatible with R-22 and R-407C refrigerants and operates at 115V AC 60 Hertz 1-Phase. The compressor features a capacitor start/induction run motor and is suitable for commercial back pressure applications.

• Power Rating: 1/2 HP
• Refrigerant Type: R22
• Voltage Rating: 115 Volt AC 60 Hertz 1-Phase

Product Highlights

This Tecumesh compressor is designed for use in air conditioning and refrigeration systems, offering a 4200 BTU/Hour capacity and high starting torque.

Product Information

Standard Information

• Brand: Tecumesh
• Manufacturer Part Number: AK165AT-038-J7
• Country of Origin: UNITED STATES

Technical Specifications

• Item: Reciprocating Compressor
• Category: HVAC/R & Fans
• UNSPSC Code: 40151606
• Series/Model: AKA9442EXA
• Used On Item: Air Conditioner, Refrigeration
• Applicable Standard: UL (Canada and US)
• Oil Type: Polyolester
• Refrigerant: R-22, R-407C
• Motor Type: Capacitor Start/Induction Run
• Starting Torque: High
• Capacity (BTU): 4200 BTU/Hour
• Voltage: 100V 1PH 50Hz, 115V 1PH 60Hz
• Current Rating: 8.8 Amp (Load Rated), 58.8 Amp (Locked Rotor), 13 Amp (MCC)
• Power Rating: 1/2 HP
• Connection Size: 1/2 Inch SAE (Suction), 1/4 Inch ODF (Discharge)
• Resistance: 0.59 Ohm (Main), 4.22 Ohm (Start)
• Temperature Rating: 20 Deg F
• Application: CBP
• Manufacturer Part Number: AK165AT-038-J7
• Manufacturer Name: Tecumesh
• Product Type: Compressor
• Phase: 1
• Global Model: AKA9442EXA
• Product Technology: Reciprocating
• Discharge Line Size: 1/4 in (6.35mm)
• Suction Line Size: 3/4 in (Rotolock)
• Grommet: Y
• Start Capacitor: Y
• Terminal Cover: Y
• Horse Power: 1/2 HP
• Motor Torque: High Start Torque (HST)
• Evaporating Range: -17.8°C to 10°C (0°F to 50°F)
• Displacement (CC): 15.634
• Compressor Cooling: Fan
• Oil Charge: 512 cc
• Viscosity: 32
• Mounting Parts: Y
• Relay Box: Y
• LRA: 58.8
• Overload: Y
• Overload Type: External
• Motor Resistance - Main: 0.59
• Motor Resistance Start: 4.22
• RLA 60HZ: 8.8
• Voltage Frequency: 50Hz~60Hz
• Voltage Range 50Hz: 90to110
• Voltage Range 60Hz: 103to127
• Agency: CURUS
• B/M: AK165AT-038-J7
• BtuH Capacity @ 20°F Evap.: 4150
• CCH: No
• Compressor: Reciprocating
• Discharge Conn.: 1/4" IDS
• Mounting Centers: 4-13/16" x 8"
• Relay: B17-875
• Volts: 115
• Model: AKA9442EXA
• Type: Reciprocating
• Version: AK Series
• MCC: 13
