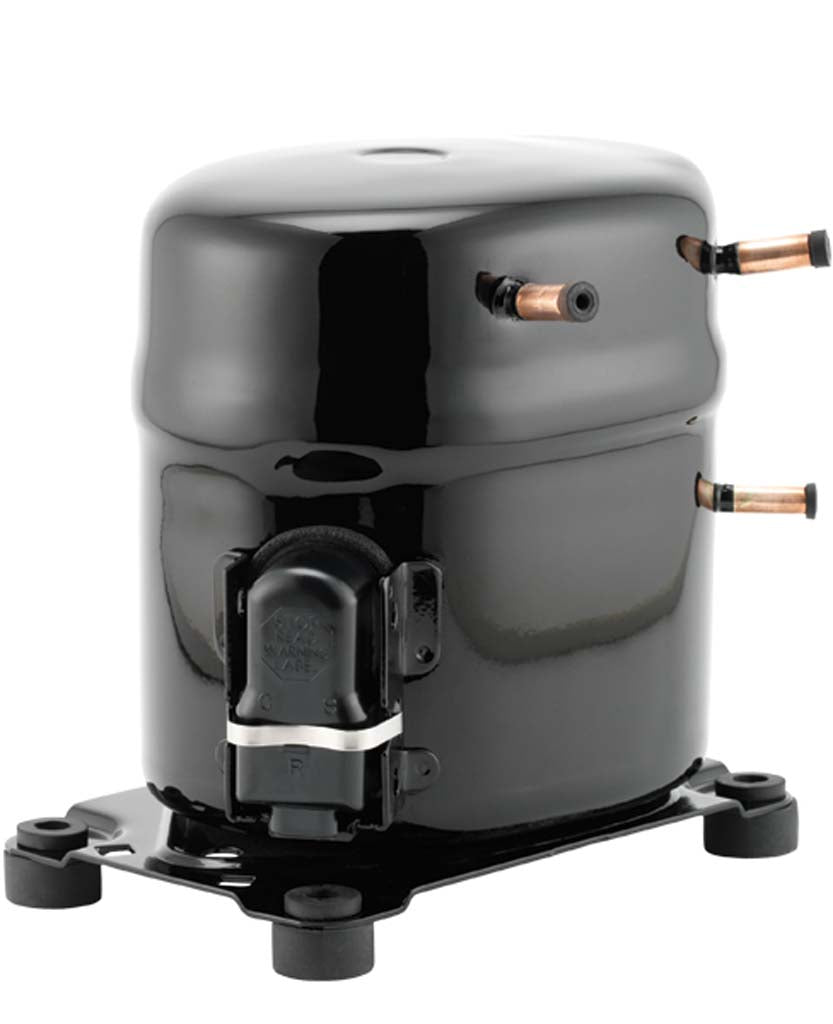

Tecumesh AK159AT-038-J7 Reciprocating Compressor 1 HP REPLACEMENT AKA9434AXA

Product Description

The Tecumesh AK159AT-038-J7 is a reciprocating compressor designed for air conditioning and refrigeration applications. It features a capacitor start/run motor and uses R12 refrigerant. The compressor is designed for commercial back pressure applications and operates at 208/230 Volt AC 60 Hertz 1-Phase. It has a capacity of 12300 BTU/Hour and a power rating of 1 HP.

• Designed for air conditioning and refrigeration use.
• Operates on 208/230 Volt AC 60 Hertz 1-Phase power.
• Features a capacitor start/run motor.

Product Highlights

This Tecumesh compressor is suitable for commercial back pressure applications requiring R12 refrigerant and reliable reciprocating technology.

Product Information

Standard Information

• Brand: Tecumesh
• Manufacturer Part Number: AK159AT-038-J7

Technical Specifications

• Item: Reciprocating Compressor
• Applicable Standard: UL (Canada and US)
• Oil Type: Synthetic Alkylate
• Refrigerant Type: R12
• Motor Type: Capacitor Start/Run
• Starting Torque: High
• Capacity: 12300 BTU/Hour
• Voltage Rating: 208/230 Volt AC 60 Hertz 1-Phase
• Current Rating: 7.75 Amp (Load Rated), 48 Amp (Locked Rotor)
• Power Rating: 1 HP
• Connection Size: 5/8 Inch SAE RL(Suction), 5/16 Inch ODF (Discharge)
• Resistance: 0.66 Ohm (Main), 4.6 Ohm (Start)
• Temperature Rating: 45 Deg F
• Application: Commercial Back Pressure
• Category: HVAC/R & Fans
• UNSPSC Code: 40151606
• Series/Model: AKA9434AXA
• Used On Item: Air Conditioner, Refrigeration
• Catalog Number: AK159AT-038-J7
• Manufacturer Name: Tecumesh
• Manufacturer Part Number: AK159AT-038-J7
• Commodity Code Description Level 5: Air Conditioner Compressors
• Global Model: AKA9434AXA
• Product Technology: Reciprocating
• Discharge Line Size: 1/4 in (6.35mm)
• Suction Line Size: 3/4 in (Rotolock)
• Grommet: Y
• Start Capacitor: Y
• Terminal Cover: Y
• Displacement (CC): 18.584
• Compressor Cooling: Fan
• Oil Charge: 525 cc
• Viscosity: 32
• Motor Torque: High Start Torque (HST)
• Packaging: SINGLE
• Evaporating Range: -17.8°C to 10°C (0°F to 50°F)
• Agency: CURUS
• Mounting Parts: Y
• Relay Box: Y
• Overload: Y
• Overload Type: External
• LRA: 48
• Motor Resistance - Main: 0.66
• Motor Resistance Start: 4.6
• RLA 60HZ: 7.75
• Power Consumption: 675 W
