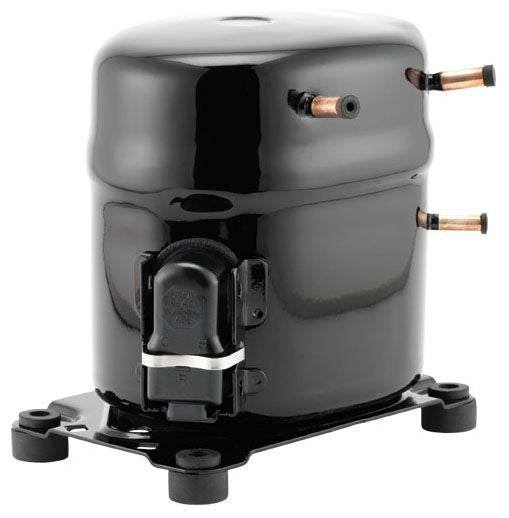

Tecumesh AK130ET-004-J7 compressor 3/4 HP

Product Description

The Tecumesh AK130ET-004-J7 is a 3/4 HP reciprocating compressor designed for air conditioning and refrigeration applications. It operates on 208/230 Volt AC at 60 Hertz and utilizes R22 refrigerant. The compressor features a permanent split capacitor motor and normal starting torque. It has a capacity of 8300 BTU/Hour.

• Designed for air conditioning and refrigeration use.
• Compliant with UL (Canada and US) standards.
• Features 3/8 Inch ODF suction and 1/4 Inch ODF discharge connections.

Product Highlights

This Tecumesh compressor is suitable for air conditioning and refrigeration systems, offering reliable performance and adherence to industry standards.

Product Information

Standard Information

• Brand: Tecumesh
• Manufacturer Part Number: AK130ET-004-J7
• Country of Origin: United States

Technical Specifications

• Item: Reciprocating Compressor
• Size: 10.579 Inch Length x 7.298 Inch Width x 8.954 Inch Height
• Used On Item: Air Conditioner, Refrigeration
• Applicable Standard: UL (Canada and US)
• Oil Type: Polyolester
• Refrigerant Type: R22
• Motor Type: PSC
• Starting Torque: Normal
• Capacity: 8300 BTU/Hour
• Voltage Rating: 208/230 Volt AC 60 Hertz 1-Phase
• Current Rating: 4.4 Amp (Load Rated), 21.3 Amp (Locked Rotor), 6.5 Amp (MCC)
• Power Rating: 3/4 HP
• Connection Size: 3/8 Inch ODF (Suction), 1/4 Inch ODF (Discharge)
• Resistance: 2.86 Ohm (Main), 7.76 Ohm (Start)
• Temperature Rating: 45 Deg F
• Category: HVAC/R & Fans
• UNSPSC Code: 40151606
• Series/Model: AKA5483EXD
• CATALOG NUMBER: AK130ET-004-J7
• Manufacturer Name: Tecumesh
• Manufacturer Part Number: AK130ET-004-J7
• Discharge Line Size: 1/4 in (6.35mm)
• Suction Line Size: 3/8 in (9.52mm)
• Grommet: Y
• Terminal Cover: Y
• Displacement (CC): 15.634
• Compressor Cooling: Fan
• Oil Charge: 512 cc
• Viscosity: 32
• Motor Torque: Low Start Torque (LST)
• Evaporating Range: -23.3°C to 12.8°C (-10°F to 55°F)
• Agency: CURUS
• Mounting Parts: Y
• Overload: Y
• Overload Type: External
• LRA: 21.3
• MCC: 6.5
• Motor Resistance - Main: 2.86
• Motor Resistance Start: 7.76
• RLA 60HZ: 4.4
• Voltage Frequency: 50Hz~60Hz
• Voltage Range 50Hz: 180to220
• Voltage Range 60Hz: 197to254
• Compressor Type: Reciprocating
• Application Temperature: Air Conditioning
• Refrigerant (ASHRAE): R-22
• Supply Voltage: 230V
• Phase: Single Phase
• Hertz: 50/60Hz
• Cooling Capacity: 7200 BTU/hr
• Liquid Line (OD): 1/4"
• Suction Line: 3/8"
• Connection Type: Sweat
• Horse Power: 3/4 HP
