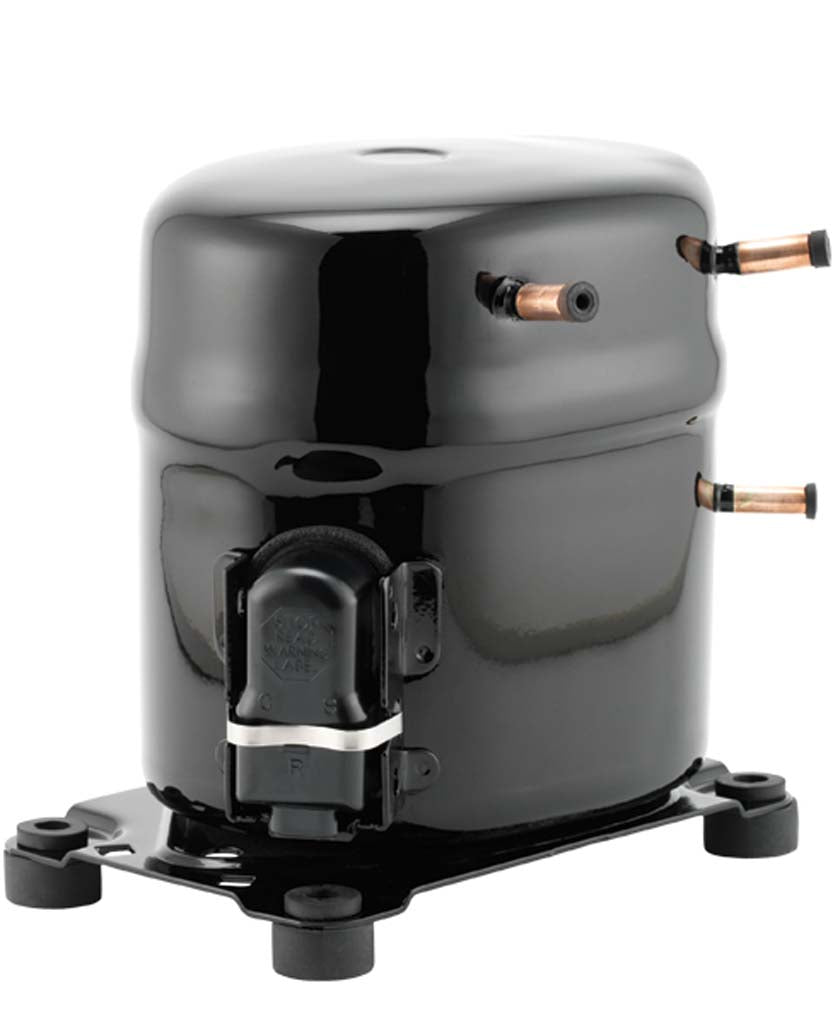

Tecumesh AK100ET-004-J7 AKA5510EXD Air Conditioner Reciprocating Compressor 1 HP REPLACEMENT AKA5510EXD

Product Description

The Tecumesh AK100ET-004-J7 AKA5510EXD is an air conditioner reciprocating compressor. This compressor is designed for air conditioning and refrigeration applications, utilizing R22 refrigerant. It operates at 208/230 Volt AC, 60 Hertz, single-phase power, with a capacity of 10000 BTU/Hour and a power rating of 1 HP.

• Capacity: 10000 BTU/Hour
• Voltage Rating: 208/230 Volt AC 60 Hertz 1-Phase
• Connection Size: 3/8 Inch ODF (Suction), 1/4 Inch ODF (Discharge)

Product Highlights

Tecumesh AK100ET-004-J7 AKA5510EXD is a reciprocating compressor for air conditioning and refrigeration with 10000 BTU/Hour capacity.

Product Information

Standard Information

• Brand: Tecumesh
• Manufacturer Part Number: AK100ET-004-J7

Technical Specifications

• Item: Reciprocating Compressor
• Category: Refrigeration Compressor
• UNSPSC Code: 40151606
• Series/Model: AKA5510EXD
• Used On Item: Air Conditioner, Refrigeration
• Manufacturer Name: Tecumesh
• Applicable Standard: UL (Canada and US)
• Manufacturer Part Number: AK100ET-004-J7
• Oil Type: Polyolester
• Refrigerant Type: R22
• Motor Type: Permanent Split Capacitor
• Starting Torque: Normal
• Capacity: 10000 BTU/Hour
• Voltage Rating: 208/230 Volt AC 60 Hertz 1-Phase
• Current Rating: 5.7 Amp (Load Rated), 28 Amp (Locked Rotor), 8.4 Amp (MCC)
• Power Rating: 1 HP
• Connection Size: 3/8 Inch ODF (Suction), 1/4 Inch ODF (Discharge)
• Resistance: 1.866 Ohm (Main), 7.198 Ohm (Start)
• Temperature Rating: 45 Deg F
• Application: AC, HBP
• Product Technology: Reciprocating
• Discharge Line Size: 1/4 in (6.35mm)
• Suction Line Size: 3/8 in (9.52mm)
• Grommet: Y
• Terminal Cover: Y
• Compressor Cooling: Fan
• Oil Charge: 512 cc
• Viscosity: 32
• Agency: CURUS
• Mounting Parts: Y
• Overload: Y
• Overload Type: External
• LRA: 28
• Motor Resistance - Main: 1.866
• Motor Resistance Start: 7.198
• RLA 60HZ: 5.7
• Brand: Tecumseh
• MPN: AK100ET004J7
• Model: AKA5510EXD
• Motor Phase: 1 Ph
• Motor Voltage: 208-230V
• Motor Hertz: 60 Hz
• Part #: AK100ET-004-J7
• Number of Compressors: 1
• Power Phase: 1 Phase
• Compressor Type: Reciprocating
