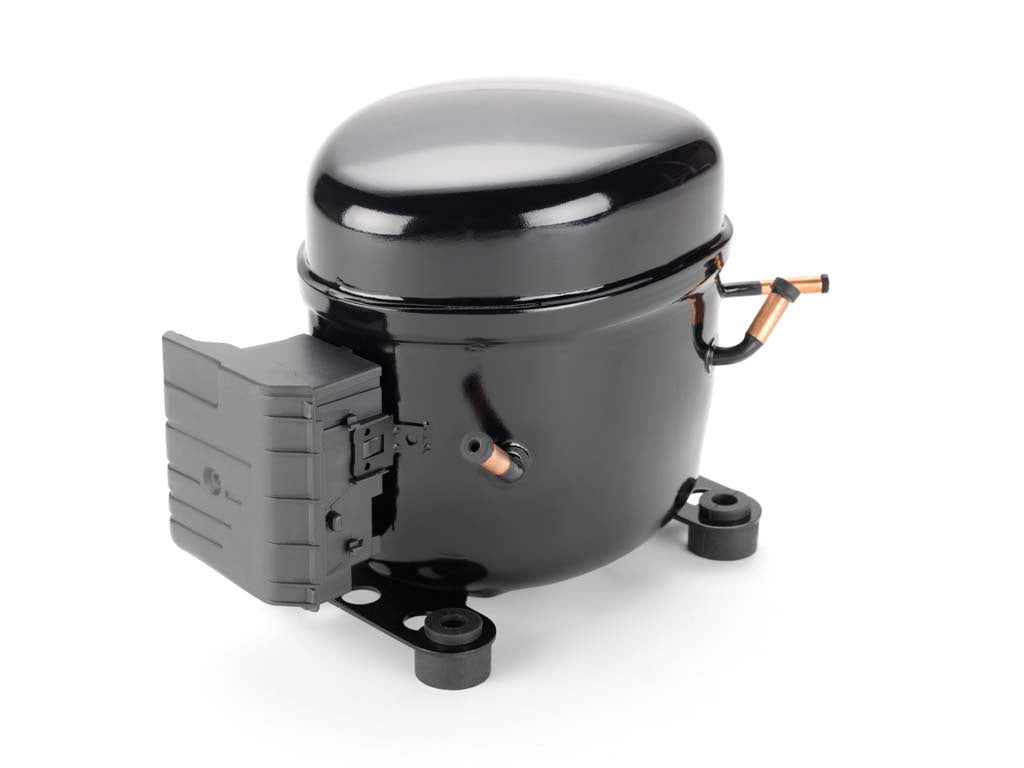

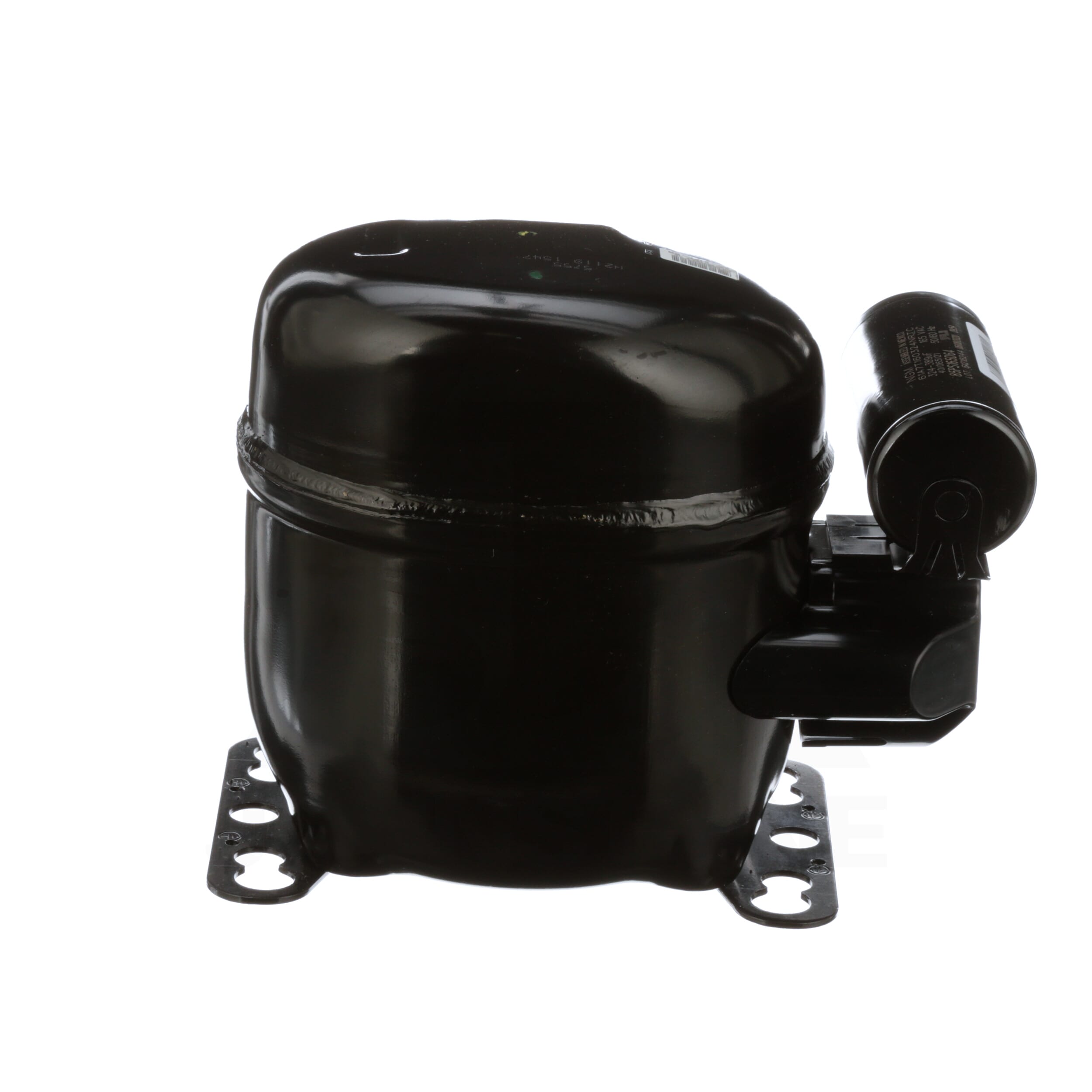

Tecumesh AE1317E-219-J7 Air Conditioner Reciprocating Compressor 1/3 HP

Product Description

The Tecumesh AE1317E-219-J7 reciprocating compressor is designed for air conditioning and refrigeration applications. This compressor features a 1/3 HP motor and is suitable for low back pressure applications using R-12 refrigerant. It operates at 115V 60Hz and has a capacity of 1300 BTU/Hour.

• Designed for air conditioning and refrigeration use.
• Operates on 115V 60Hz power supply.
• Utilizes R12 refrigerant.

Product Highlights

The Tecumesh AE1317E-219-J7 is a reciprocating compressor for air conditioning and refrigeration systems, operating at 115V with R12 refrigerant.

Product Information

Standard Information

• Brand: Tecumesh
• Manufacturer Part Number: AE1317E-219-J7
• Country of Origin: BRAZIL

Technical Specifications

• Item: Reciprocating Compressor
• Category: HVAC/R & Fans
• UNSPSC Code: 40151606
• Series/Model: AE2413A-AA1B
• Used On Item: Air Conditioner, Refrigeration
• CATALOG NUMBER: AE1317E-219-J7
• Manufacturer Name: Tecumesh
• Applicable Standard: UL (Canada and US), CE
• Additional Information: Oil Type Synthetic Alkylate; Refrigerant Type R12; Motor Type Capacitor Start/Induction Run; Starting Torque High; Capacity 1300 BTU/Hour; Voltage Rating 115 Volt AC 60 Hertz 1-Phase; Current Rating 29 Amp (Locked Rotor), 6.5 Amp (MCC); Power Rating 1/3 HP; Connection Size 3/8 Inch SAE (Suction), 1/4 Inch ODF (Discharge); Resistance 1.38 Ohm (Main), 3.4 Ohm (Start); Temperature Rating -10 Deg F; Application Low Back Pressure
• Manufacturer Part Number: AE1317E-219-J7
• COMMODITY CODE DESCRIPTION Level 5: Air Conditioner Compressors
• Oil Type: Synthetic Alkylate
• Refrigerant Type: R12
• Motor Type: CSIR
• Starting Torque: High
• Capacity: 1300 BTU/Hour
• Voltage Rating: 115 Volt AC 60 Hertz 1-Phase
• Current Rating: 29 Amp (Locked Rotor), 6.5 Amp (MCC)
• Power Rating: 1/3 HP
• Connection Size: 3/8 Inch SAE (Suction), 1/4 Inch ODF (Discharge)
• Resistance: 1.38 Ohm (Main), 3.4 Ohm (Start)
• Temperature Rating: -10 Deg F
• Application: Low Back Pressure
• B/M: AE1317E-219-J7
• BtuH Capacity @ -10°F Evap.: 1300
• Compressor: Reciprocating
• HP: 1/3
• Phase: 1
• Refrigerant: R-12
• Volts: 115
• Version: AE Series
• Voltage/Frequency: 115V ~ 60Hz
• Discharge Line Size: 1/4 in (6.35mm)
• Suction Line Size: 3/8 in (Flare)
• Overload Type: EXTERNAL
• Brand: TECUMSEH
• Condition: New
• Item Number: AE1317E-219-J7
• Global Model: AE2413A-AA1B
• Status: Discontinued
• Voltage: 115V 1PH 60Hz
• Product Technology: Reciprocating
• Displacement (CC): 12.01
• Compressor Cooling: Fan
• Oil Charge: 361 cc
• Viscosity: 32
• Horse Power: 1/3 HP
• Motor Torque: High Start Torque (HST)
• Evaporating Range: -40°C to -10°C (-40°F to 14°F)
• LRA: 29
• Relay Type: Current Relay
• MCC: 6.5
• Motor Resistance - Main: 1.38
• Motor Resistance Start: 3.4
• RLA 60HZ: 3.45
• Voltage Range 60Hz: 103to127
