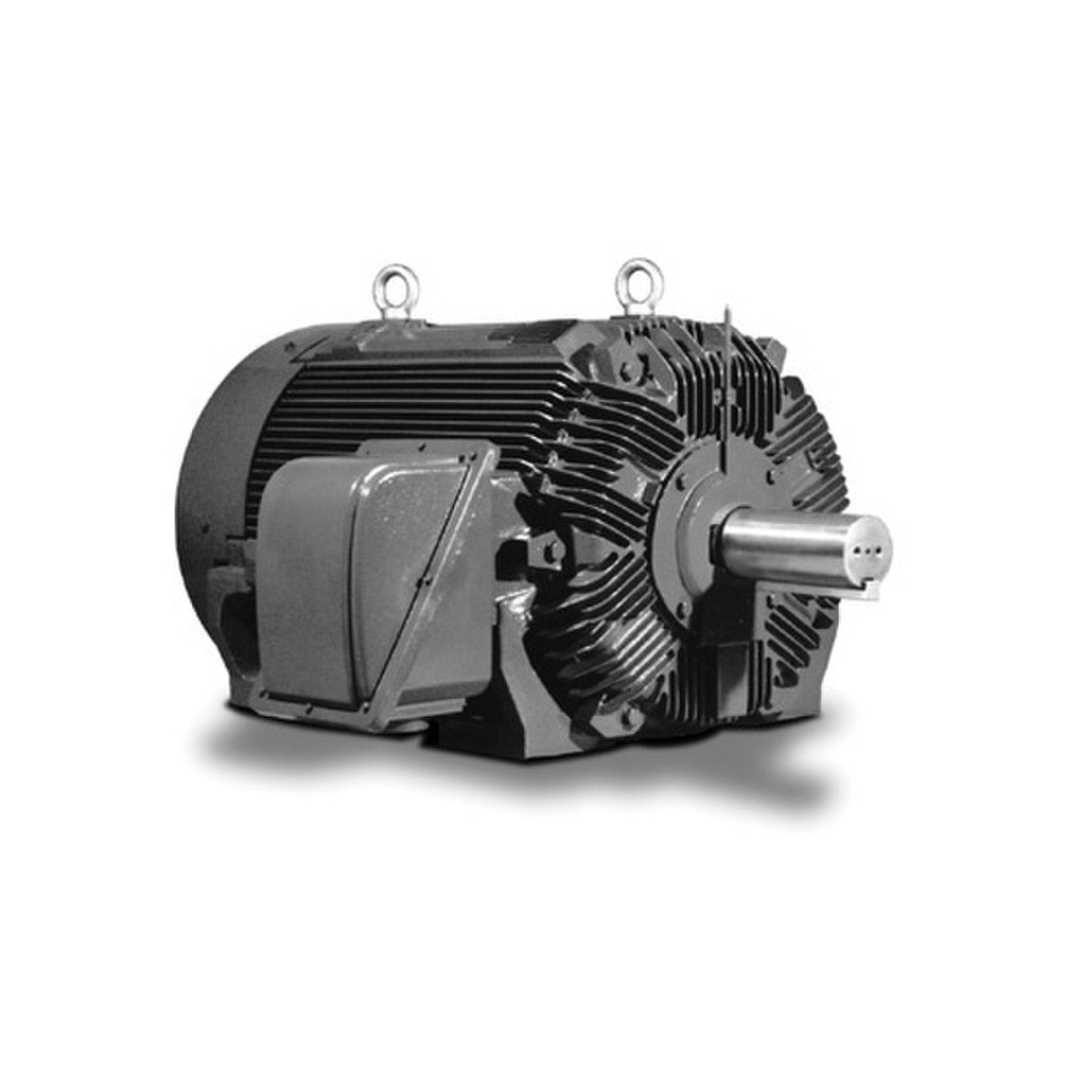

TECO XP7/52 Explosion Proof AC Motor

Product Description

The TECO XP7/52 is a three-phase AC motor that is designed for environments where safety is crucial. This motor has an explosion-proof casing that meets strict safety standards, making it ideal for demanding applications. It features a durable cast iron frame, fan cover, and end brackets, providing solid construction for tough conditions. The motor operates on 230/460 volts and is suitable for inverter duty, which adds versatility to its applications.

• Explosion-proof enclosure for hazardous environments
• Suitable for inverter duty applications
• Constructed from durable cast iron

Product Highlights

This motor is built for continuous operation with a service factor of 1.15 at 60 Hz. It has a Class F insulation rating and a Class B temperature rise, ensuring reliable performance in various conditions.

Product Information

Standard Information

• Brand: TECO-Westinghouse
• MPN: XP7/52

Technical Specifications

• Horsepower: 7.5 hp
• RPM: 3600
• Voltage: 230/460V
• Phase: 3 Phase
• Enclosure: TEFC
• Frame: 213T
• Mounting Type: Foot Mount
• Full Load Amperage: 9.02 Amps
• Full Load Efficiency: 89.5%
• Full Load Power Factor: 87%
• Weight: 235 lb
• Operating Frequency: 60 Hz
