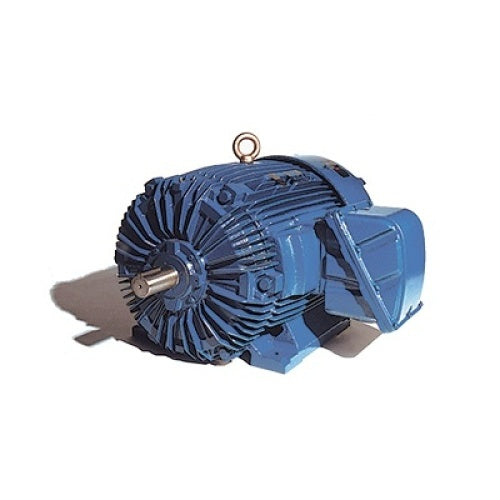

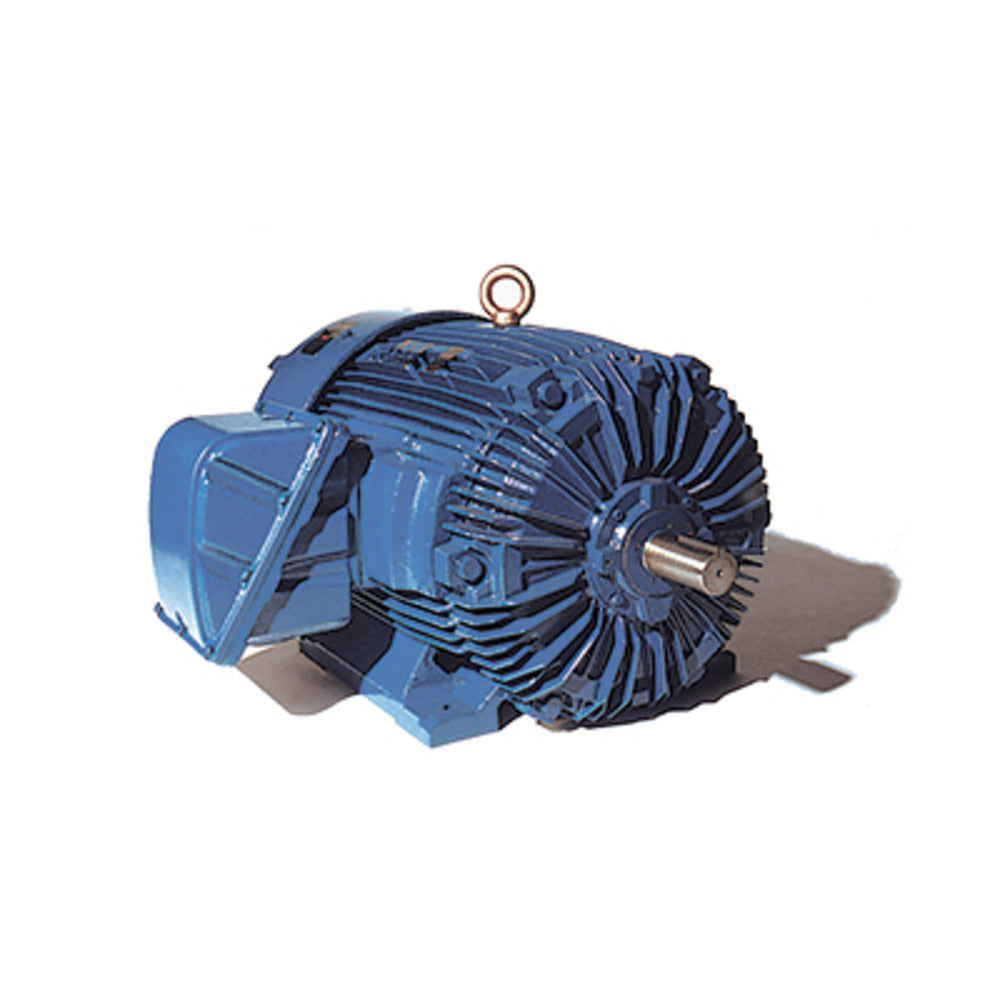

Teco XP0404 Explosion Proof Premium AC Electric Induction Motor 40 HP (324T)

Product Description

The Teco XP0404 is a 40 HP explosion-proof, totally enclosed fan-cooled (TEFC) three-phase induction motor rated for 1800 RPM and 208/230/460 V at 60 Hz. It provides 94.1% full-load efficiency with an 85.5% power factor and a listed full-load amperage of 46.6 A. The 324T cast-iron frame includes a rotatable oversized conduit box, Klixon 9700K thermal protection, Class F insulation with Class B rise, and inverter-duty capability.

• Explosion-proof TEFC enclosure (IP55) with hazardous location ratings: Class I, Div. 1, Groups C & D; Class II, Groups E, F & G
• Electrical performance: 40 HP, 1800 RPM, 208/230/460 V, three-phase; 94.1% full-load efficiency, 85.5% power factor, 46.6 A full-load amperage; service factor 1.15 (continuous), 1.0 when operated with a VFD
• Rugged construction and protection: 324T cast iron frame, 1045 carbon steel shaft, aluminum die-cast squirrel cage rotor, oversized rotatable conduit box with NPT entrance, grounding terminal, standard Klixon 9700K temperature limiting switch, UL-listed inverter duty (magnet wire withstands spikes up to 2200 V)

Product Highlights

40 HP 1800 RPM 324T TEFC explosion-proof motor; 208/230/460 V three-phase; 94.1% efficiency; Class F insulation with Class B rise; Klixon thermal protection; inverter-duty.

Product Information

Standard Information

• Brand: TECO
• Manufacturer Part Number: XP0404

Technical Specifications

• Brand: Teco
• Manufacturer: TECO-Westinghouse
• MPN: XP0404
• Model: XP0404
• Horsepower: 40 HP
• Speed (RPM): 1800 RPM

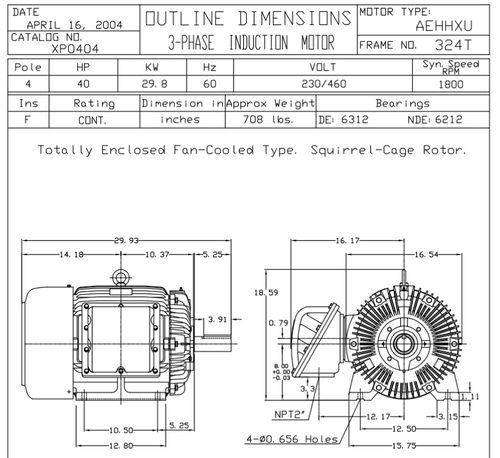

• Frame: 324T
• Input Voltage: 208/230/460 V @ 60 Hz
• Phase: Three Phase
• Enclosure: Totally Enclosed Fan Cooled (TEFC), Explosion Proof (IP55)
• Full Load Efficiency: 94.1%
• Full Load Power Factor: 85.5%
• Full Load Current: 46.6 A
• Service Factor: 1.15 (continuous); 1.0 when operated with a VFD
• Insulation Class: Class F
• Temperature Rise: Class B
• Temperature Protection: Klixon 9700K temperature limiting switch (1 per phase)
• Listings/Certifications: UL Listed (File #: E84757); CSA Listed (File #: 64671)
• NEMA Design: NEMA Design B; NEMA Premium Efficient
• DOE Certification: CC002A
• Shaft Material: 1045 Carbon Steel
• Rotor Construction: Aluminum die-cast squirrel cage
• Mounting: F1 mounted; rigid base / footed, C-face
• Conduit Box: Oversized, rotatable in 90 degree increments; fully gasketed with NPT threaded entrance
• Grounding: Grounding terminal inside main conduit box
• Inverter Duty Rating: UL listed for inverter duty; magnet wire withstands spikes up to 2200 V
• Bearings: Vacuum de-gassed regreasable bearings on larger frames; double-shielded pre-packed bearings on smaller frames
• Paint System: Phenolic rust-proof base plus polyurethane top coat
• Ambient Rating: Designed for 40°C ambient and up to 3300 ft elevation
• Hazardous Location Ratings: Class I, Div. 1, Groups C & D; Class II, Groups E, F & G
• Applications: Grain elevators, pumps, blowers, environments with explosive gases or dusts
• Nameplate: Stainless steel nameplate
• Weight: 707.93 lbs
