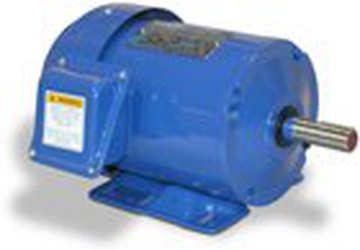

Teco GP7/54G 7.5 HP 1800 RPM TEFC 213T Frame 208/230/460 Volt AC Electric Induction Motor

Product Description

The Teco GP7/54G is an AC electric induction motor with a power rating of 7.5 HP and operates at 1800 RPM. This motor is designed with a Totally Enclosed Fan Cooled (TEFC) enclosure, ensuring robust protection against the elements and enhanced operational efficiency.

• 7.5 HP power output
• 1800 RPM speed
• 213T frame size

Product Highlights

The Teco GP7/54G motor is suitable for various applications, including fans, blowers, compressors, pumps, and HVAC equipment. Its TEFC design and rolled steel NEMA premium efficiency make it a reliable choice for demanding environments.

Product Information

Standard Information

• Manufacturer: Teco
• Brand: Teco-Westinghouse
• MPN: GP7/54G
• Enclosure: Totally Enclosed Fan Cooled (IP44)

Technical Specifications

• Power: 7.5 HP
• Speed: 1800 RPM
• Voltage: 208/230/460 Volt @ 60 Hz
• Frame: 213T
• Full Load Efficiency: 91.7 Percent
• Full Load Power Factor: 83 Percent
• Full Load Amperage: 18.5 A
• Service Factor: 1.15 Continuous
• Insulation: Class F with Phenolic Alkyd Resin Varnish
• Temperature Rise: Class B
• Torque: NEMA Design B
• Rotation: Bi-Directional
• Frame Material: Rolled Steel
• Shaft Material: 1045 Carbon Steel
• Bearings: Double Shielded Bearings Pre-Packed with MULTEMP SRL Grease
• Grounding Terminal: Inside Main Box
• Finish: Phenolic Rust Proof Base and Polyurethane Top Coat
