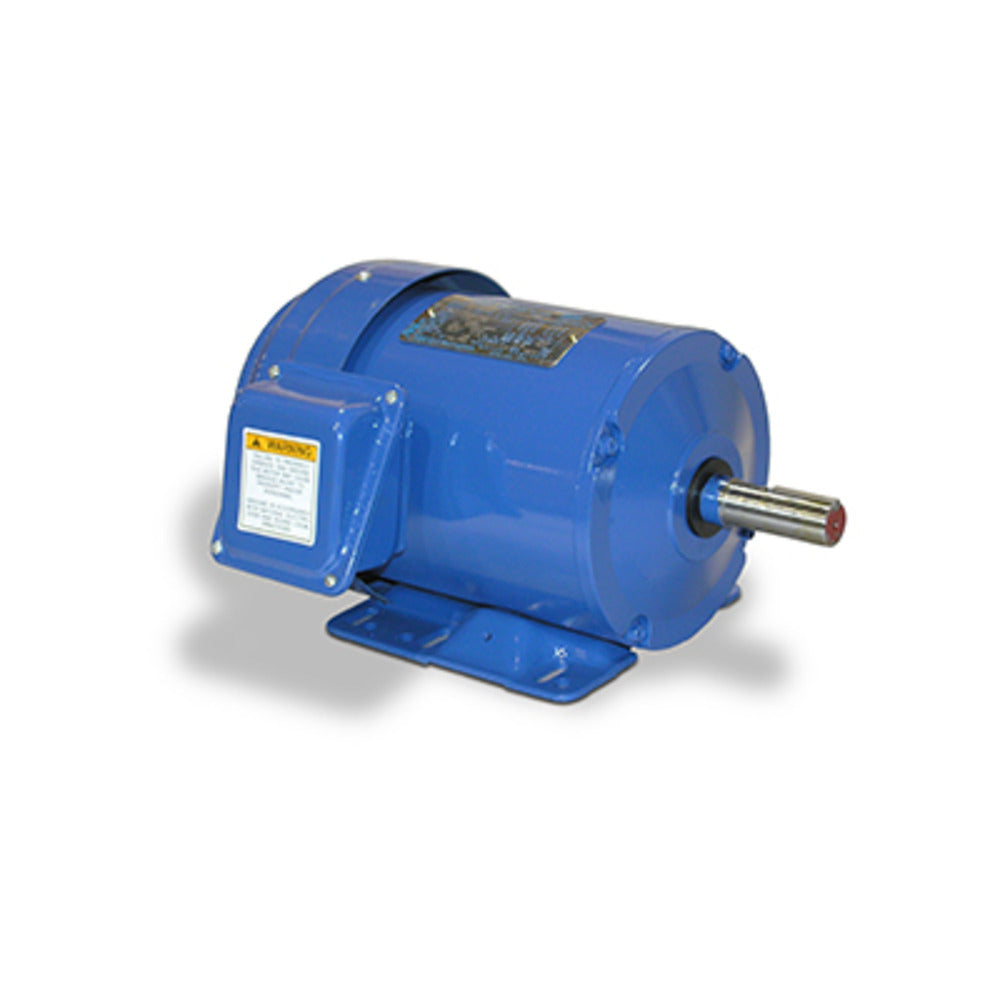

TECO-Westinghouse GP0054G 5HP 1800 RPM SGR Motor
In Stock - Ships via Freight in 3-5 Business Days
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
The TECO-Westinghouse GP0054G SGR 5 hp 1800 RPM motor is a reliable and efficient choice for a variety of applications. This motor features a NEMA 182/184TC Frame, a Totally Enclosed Fan Cooled (IP44) enclosure, and a 1 1/8" Diameter x 2 3/4" Keyed Shaft. It is U.L. Recognized, CSA Approved, and CE Marked. Here are the specifications:
- 5 hp 1800 RPM, 13.1/6.6 amps 230/460 Volts 60 Hz. Three Phase
- NEMA 182/184TC Frame, Keyed Shaft 1 1/8" Diameter x 2 3/4"
- Rolled Steel Frame, Enclosure: Totally Enclosed Fan Cooled (IP44)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
