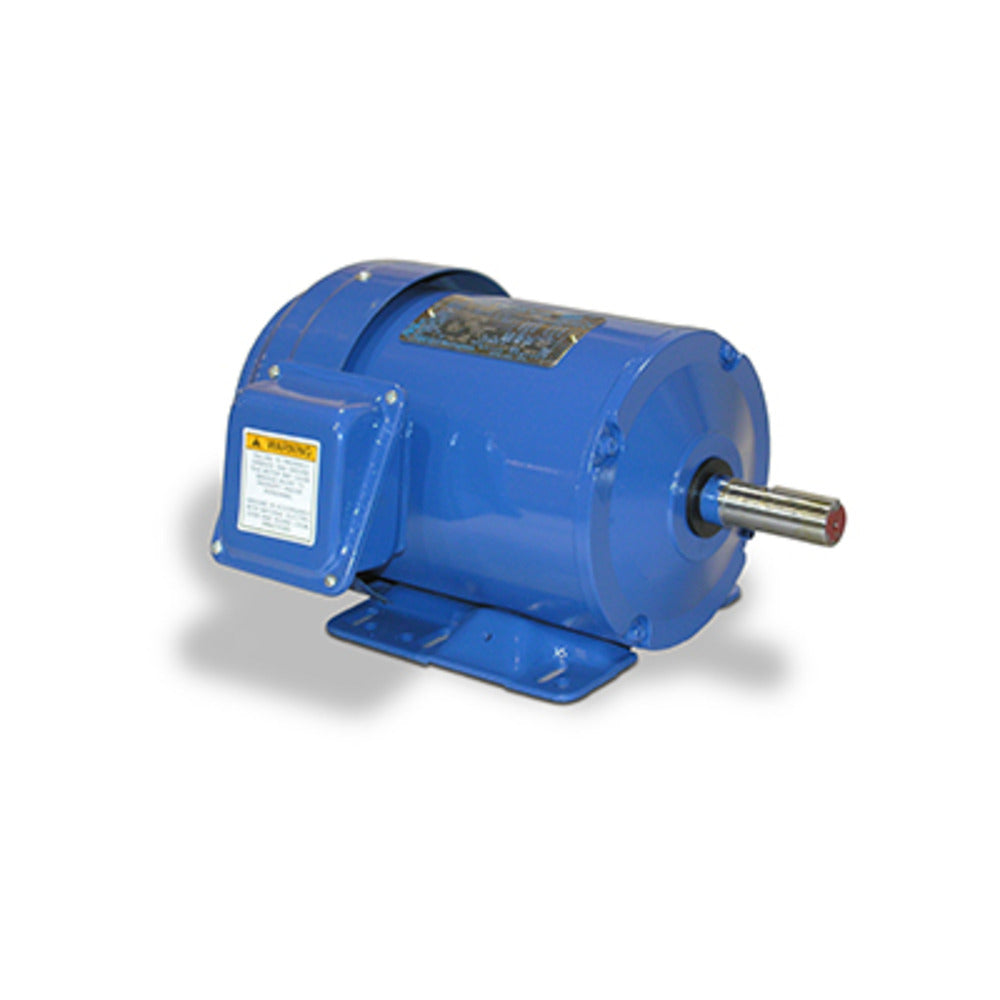

Teco GP0014G General Purpose Motor 1 HP 1800 RPM TEFC 143T Frame 208/230/460 Volt 3 Phase

Product Description

The Teco GP0014G general purpose motor is a reliable choice for various industrial applications. This motor offers 1 horsepower and operates at 1800 RPM. It features a Totally Enclosed Fan Cooled (TEFC) enclosure, and a 143T frame size, running on 208/230/460 volts in a three-phase configuration.

• 1 HP motor for industrial use
• 1800 RPM speed
• TEFC enclosure for protection

Product Highlights

The Teco GP0014G motor is designed for fans, blowers, compressors, pumps, and HVAC equipment. It ensures durability and efficiency with a premium rolled steel construction. The motor includes a grounding terminal inside the main box, ensuring safety and reliability in various environments.

Product Information

Standard Information

• Brand: Teco
• MPN: GP0014G

Technical Specifications

• Horsepower: 1 HP
• RPM: 1800
• Voltage: 208/230/460 Volts
• Phase: Three Phase
• Frame: 143T
• Enclosure: TEFC
• Efficiency: 85.5 % Full Load
• Power Factor: 75.5 % Full Load
• Full Load Amperage: 2.9 A
• Grounding: Shaft Grounding Ring
• Insulation Class: F with Phenolic Alkyd Resin Varnish
• Service Factor: 1.15 Continuous
• Material: Rolled Steel
• Shaft Material: 1045 Carbon Steel
