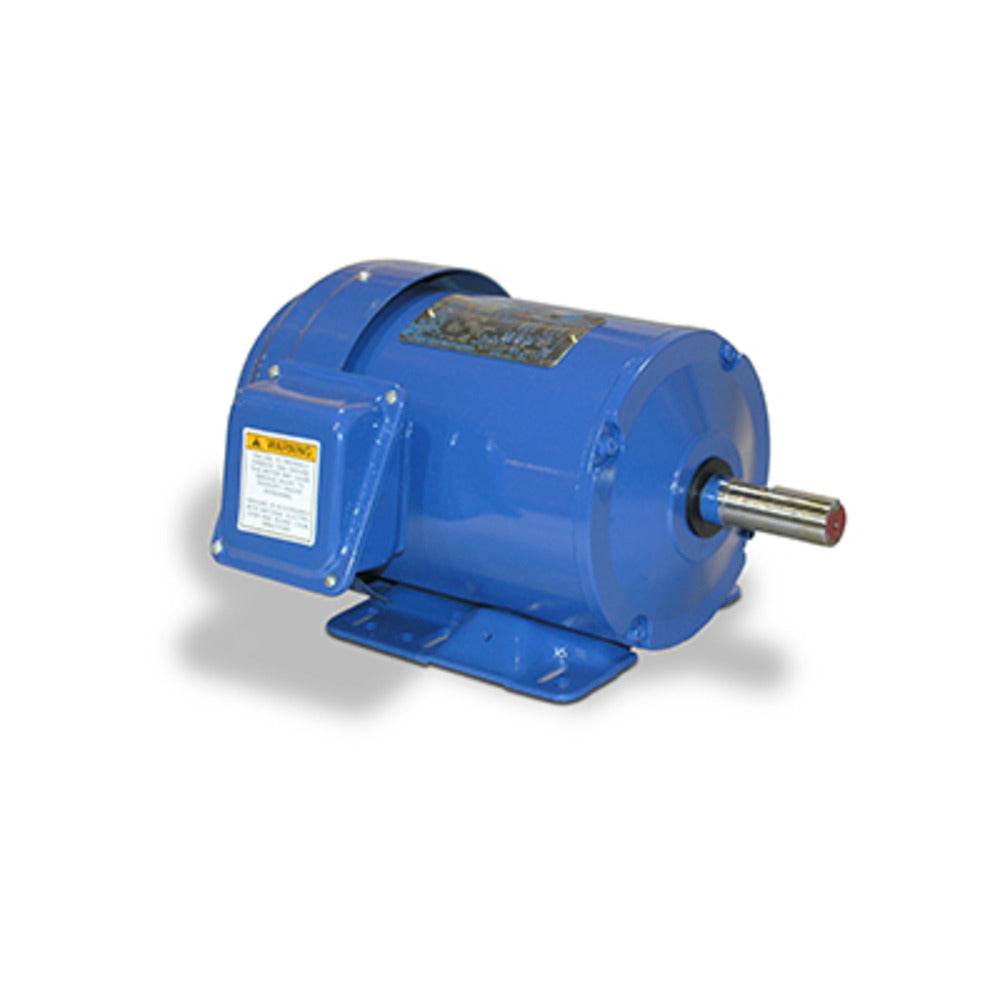

Teco GP0012G TEFC Electric Motor 1 HP 3600 RPM 208/230/460 Volts

Product Description

The Teco GP0012G electric motor delivers reliable performance for various applications. With a power rating of 1 HP and a speed of 3600 RPM, it is efficient and robust. This motor operates at 208/230/460 volts and features a 143T frame. It is designed for three-phase operations and includes a TEFC enclosure for added durability.

• 1 HP power rating
• 3600 RPM
• 208/230/460 volts

Product Highlights

The Teco GP0012G comes with a totally enclosed fan-cooled design (TEFC), making it ideal for HVAC applications. It has a service factor of 1.15, ensuring continuous operation. The motor also includes a shaft grounding ring and a 1045 carbon steel shaft, enhancing its longevity.

Product Information

Standard Information

• Brand: Teco
• MPN: GP0012G

Technical Specifications

• HP: 1
• RPM: 3600
• Voltage: 208/230/460
• Frame: 143T
• Full Load Amperage: 2.74
• Service Factor: 1.15
• Enclosure: TEFC
• Material: Rolled Steel
• Insulation Class: F
• Weight: 33 lbs
