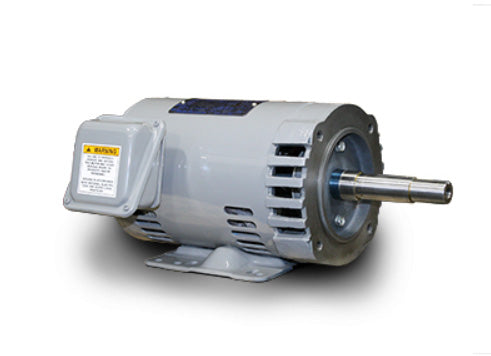

Teco-Westinghouse DTP0026 Rolled steel 2 HP 1200 RPM 208/230/460V 3 phase ODP 184T frame premium AC induction motor

Product Description

Teco-Westinghouse DTP0026 is a rolled steel, open drip-proof (ODP) AC induction motor rated at 2 HP and 1200 RPM for three-phase operation. The motor supports 208/230/460 V at 60 Hz, is built on a NEMA 184T horizontal foot-mounted frame, and meets NEMA premium efficiency and inverter-duty requirements. It includes a rolled steel conduit box, 1.15 service factor, and certifications including UL, CSA, and CE.

• 2 HP, 1200 RPM, three-phase motor; input voltage 208/230/460 V, 60 Hz; service factor 1.15
• Rolled steel NEMA 184T horizontal foot-mounted frame with open drip-proof (ODP) enclosure and rolled steel conduit box
• NEMA premium efficiency and suitable for inverter duty per NEMA MG1-31.4.4.2; UL recognized, CSA approved, CE marked

Product Highlights

2 HP 1200 RPM three-phase ODP motor, NEMA 184T rolled steel frame, 208/230/460 V, NEMA premium efficiency, inverter-duty capable

Product Information

Standard Information

• Brand: TECO-WESTINGHOUSE
• Manufacturer Part Number: DTP0026

Technical Specifications

• Brand: TECO-Westinghouse
• MPN: DTP0026
• Horsepower: 2 HP
• Speed (RPM): 1200 RPM
• Frequency: 60 Hz
• Input Voltage: 208/230/460 V
• Phase: 3 Phase
• Service Factor: 1.15
• Enclosure: Open drip-proof (ODP) (IP22)
• Frame: NEMA 184T
• Mounting Type: Horizontal, foot mounted
• Frame Material: Rolled steel
• Conduit Box: Rolled steel conduit box
• Efficiency: NEMA Premium Efficiency
• Inverter Duty: Suitable per NEMA MG1-31.4.4.2 (inverter-duty)
• Certifications: UL Recognized; CSA Approved; CE Marked
• Weight (manufacturer stated): 94 lb (42638 g)
• Full Load Amperage: 7.51 A @ 230 V / 3.76 A @ 460 V
• Bearings: Ball bearings (double-shielded, pre-packed noted in some sources)
• Insulation Class: Class F
• Full Load Efficiency: 87.5%
• Full Load Power Factor: 0.57 (57%)
• NEMA Design: Design B

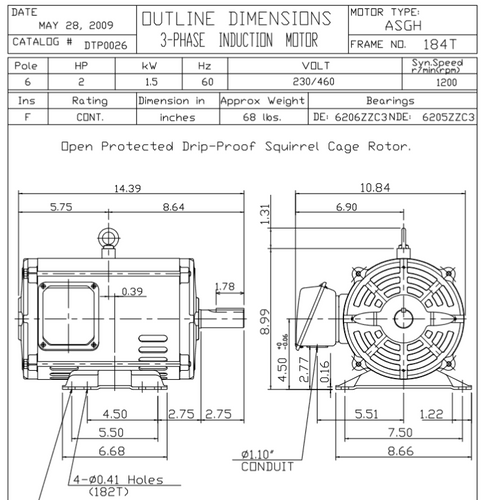

• Shaft Dimensions: Shaft length ~2.75 in, shaft diameter 1.125 in (as listed)
• Rotation: Reversible
• Ambient Temperature Rating: Designed for 40�C
• Elevation Rating: Designed for 3300 ft
• Shaft Material: 1045 carbon steel
• Rotor Construction: Aluminum die cast squirrel cage
