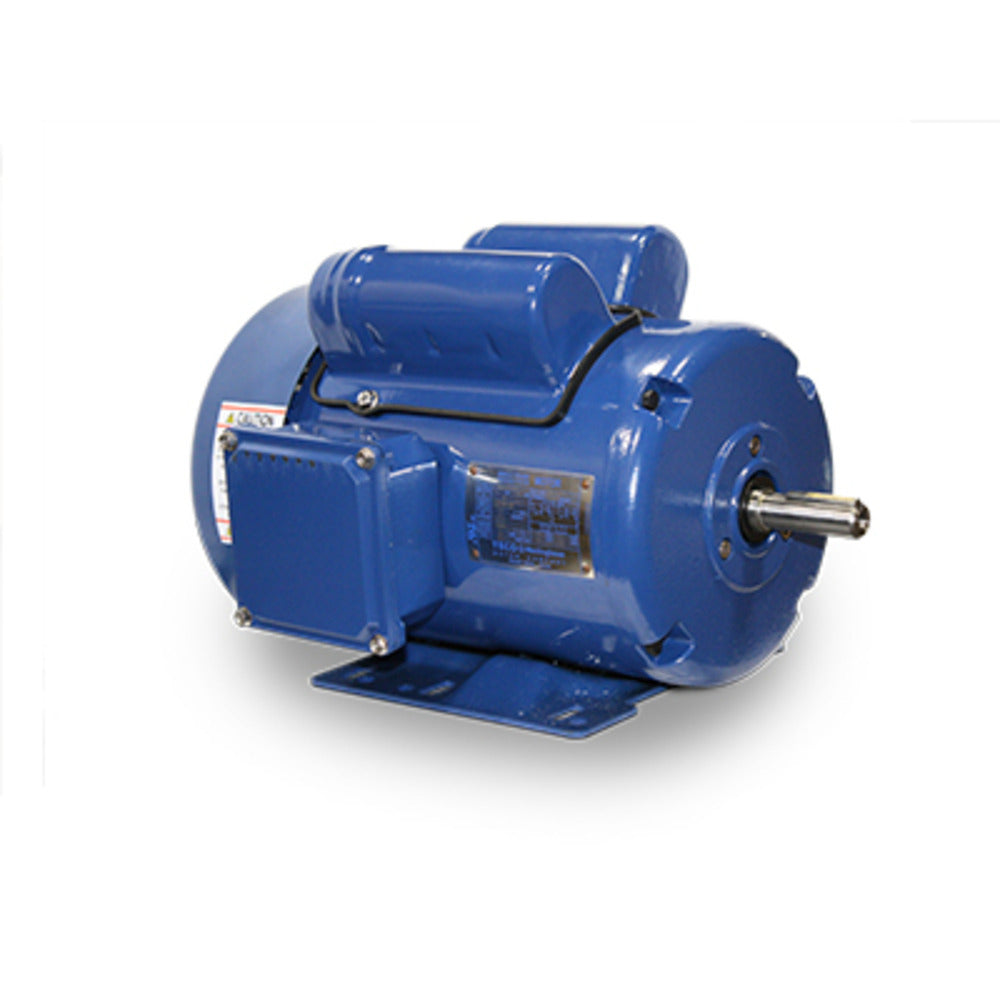

TECO SPT0022 General Purpose Motor 2 HP 3600 RPM TEFC

Product Description

The TECO SPT0022 General Purpose Motor is designed for efficient operation in various applications. With a power rating of two horsepower and a speed of three thousand six hundred RPM, it is suited for many industrial and commercial uses. This motor features a Totally Enclosed Fan Cooled (TEFC) enclosure, which provides protection from dust and moisture, making it advantageous for demanding environments.

• Electrical Type: Capacitor Start
• Single Phase with a voltage range of one hundred fifteen to two hundred thirty volts
• Rigid base mounting for stability and ease of installation

Product Highlights

Designed for reliability and efficiency, the SPT0022 can efficiently drive pumps, fans, and other machinery.

Product Information

Standard Information

• Brand: TECO
• MPN: SPT0022

Technical Specifications

• Motor Type: General Purpose Motor
• HP: 2
• RPM: 3600
• Frame: 145T
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/208/230
• Overload Protection: Automatic
• Material: Rolled Steel
• Mounting Type: Rigid Base
• Amperage: 8.23
