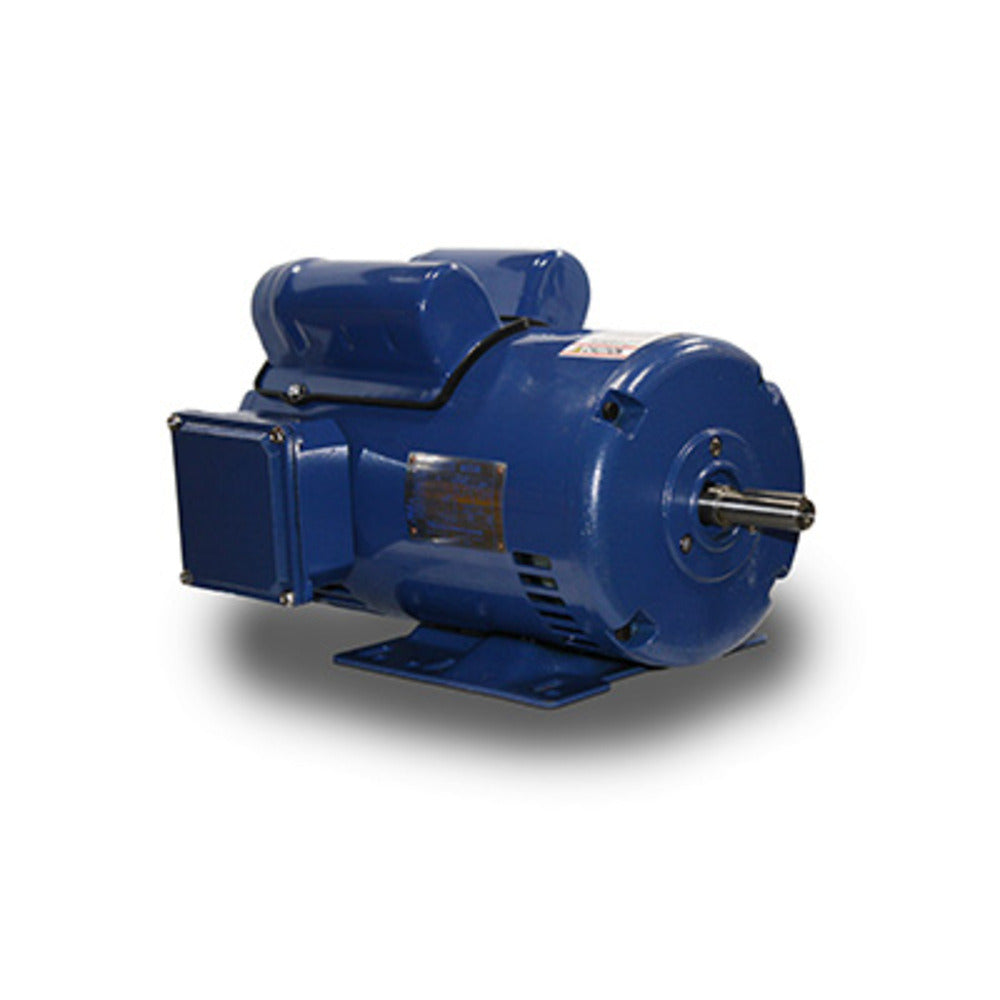

TECO SPH0022 General Purpose Motor 2 HP 56H

Product Description

The TECO SPH0022 is a general-purpose motor designed to deliver reliable performance in a range of applications. With a power rating of two horsepower, this motor is suitable for various industrial and commercial uses. The motor operates at a speed of three thousand six hundred RPM and is equipped with a rigid base for secure mounting.

• Capacitor start design for efficient operation
• Auto overload protection for safety
• Compatible with multiple voltages: one hundred fifteen, two hundred eight, or two hundred thirty volts

Product Highlights

The TECO SPH0022 provides dependable power for various equipment and machinery. Its sturdy construction includes materials such as rolled steel, ensuring longevity and durability in demanding environments.

Product Information

Standard Information

• Brand: TECO
• MPN: SPH0022

Technical Specifications

• Electrical Type: Cap Start
• Power: 2 HP
• Speed: 3600 RPM
• Frame Size: 56H
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115/208/230
• Rotation: REV
• Overload Protector: Auto
• Material: Rolled Steel
• Mounting Type: Rigid Base
• Amperage: 8.19
