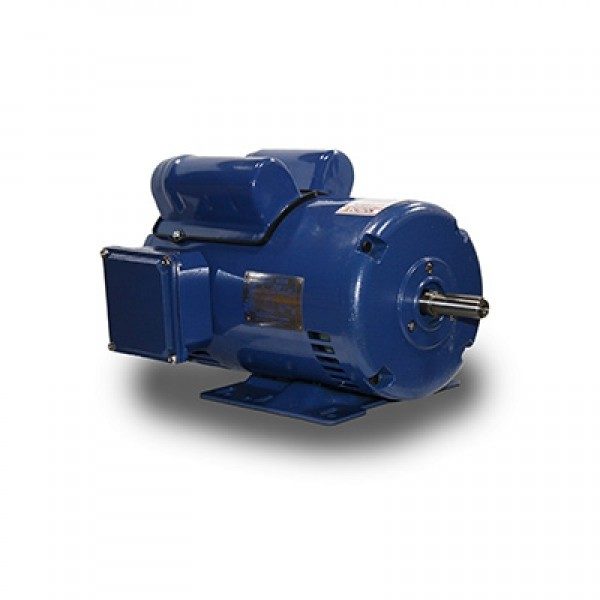

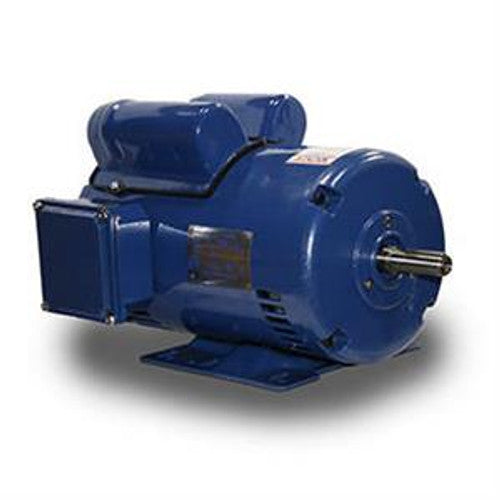

TECO SP0/24 Electric Motor 0.25 HP

Product Description

The TECO SP0/24 is a single-phase electric motor suitable for HVAC applications. This model features an open drip-proof enclosure and a rolled steel frame, providing durability and reliability during operation. It runs at 1800 RPM and supports bi-directional rotation, making it versatile for various installations.

• Operates at 115/208-230 Volts at 60 Hertz.
• Incorporates automatic overload protection for safety.
• UL recognized for usage in the United States and Canada.

Product Highlights

The TECO SP0/24 is designed to deliver efficient performance with class F insulation, ensuring safety and reliability in operation.

Product Information

Standard Information

• Motor Type: Single Phase
• Horsepower: 0.25 HP

Technical Specifications

• Speed: 1800 RPM
• Enclosure: Open Drip Proof (ODP)
• Frame: 48
• Voltage: 115/208-230 Volts
• Phase: 1
• Full Load Efficiency: 68.5%
• Full Load Power Factor: 81%
• Full Load Amperage: 1.41A
• Service Factor: 1.15 for 115V & 230V or 1.0 for 208V
• Insulation Class: Class F
• Overload Protector: Automatic
• Temperature Rise: Class B
• Ambient Temperature: Designed for < 40°C
• Elevation: Designed for < 3300 ft.
• Rotation: Bi-Directional
• Shaft: 1045 Carbon Steel
• Shaft Dimensions: 1/2 x 1 1/2 with flat
• Bearing Type: Ball Bearing
