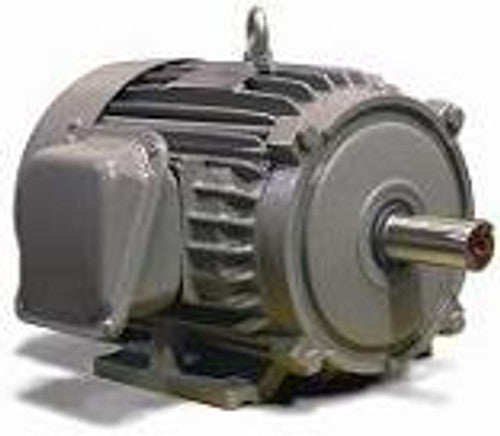

TECO NP7/54G Electric Motor 7.5 HP

Product Description

The TECO NP7/54G is a three-phase electric motor that serves various industrial needs. With a cast iron frame, this motor is designed to be durable and is totally enclosed with fan cooling (TEFC). It supports dual frequency operation at both 60Hz and 50Hz. The motor has features like the AEGIS Shaft Grounding Ring for enhanced protection of bearings and is approved by CSA and recognized by U.L.

• Suitable for inverter use
• Durable cast iron construction
• AEGIS Shaft Grounding Ring for bearing protection

Product Highlights

This electric motor is ideal for applications needing reliable performance in various settings. It is well-suited for inverter operations and has a robust design for extended service life.

Product Information

Standard Information

• Brand: TECO-Westinghouse
• MPN: NP7/54G

Technical Specifications

• Horsepower: 7.5 HP
• RPM: 1800 RPM
• Voltage: 208-230/460 VAC
• Frequency: 60 Hz
• Phase: 3
• Frame: 213T
• Enclosure: Totally Enclosed Fan Cooled (IP56)
• Service Factor: 1.15
• Insulation: Class F
• Bearings: Ball Bearings
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Weight: 200 lb
