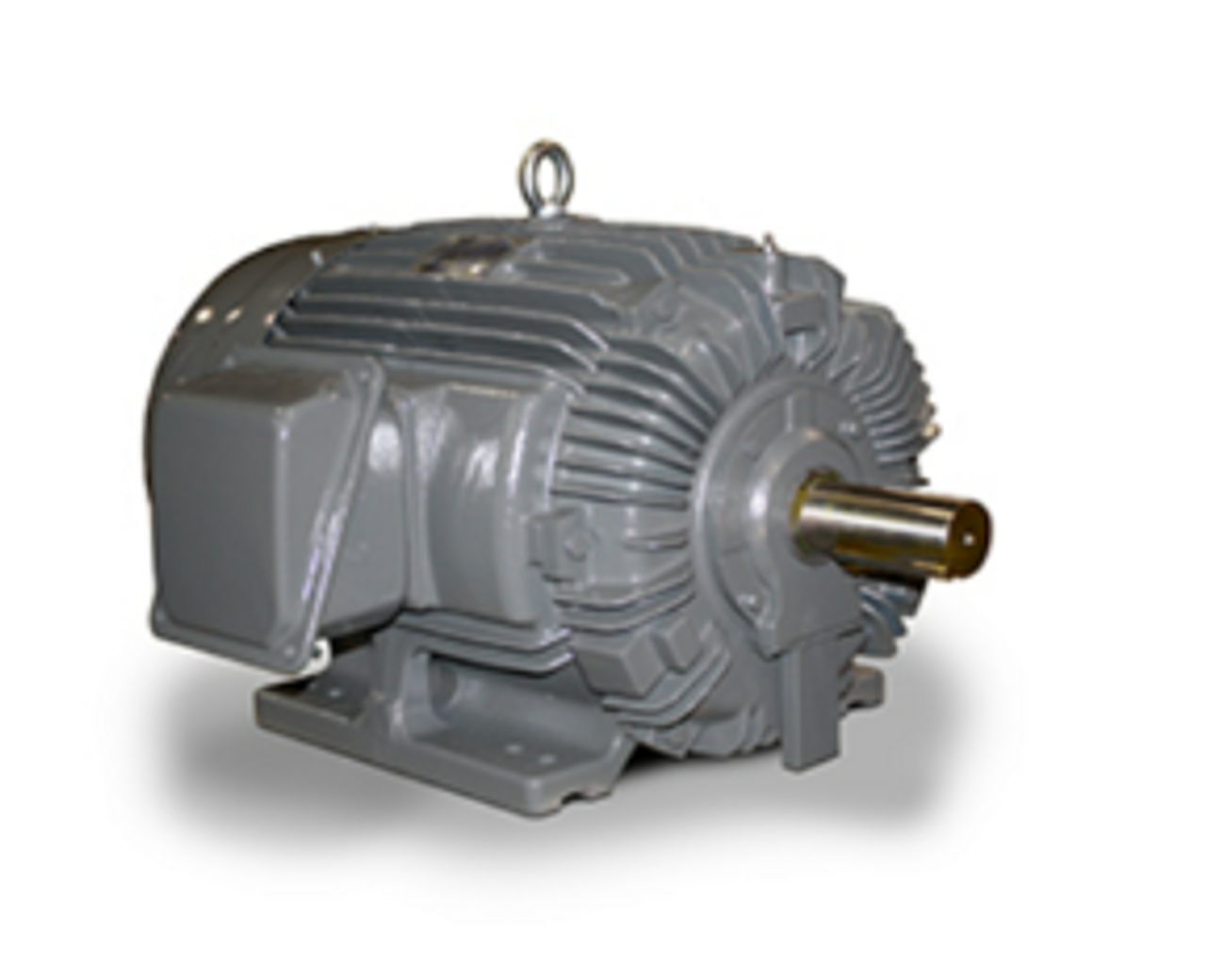

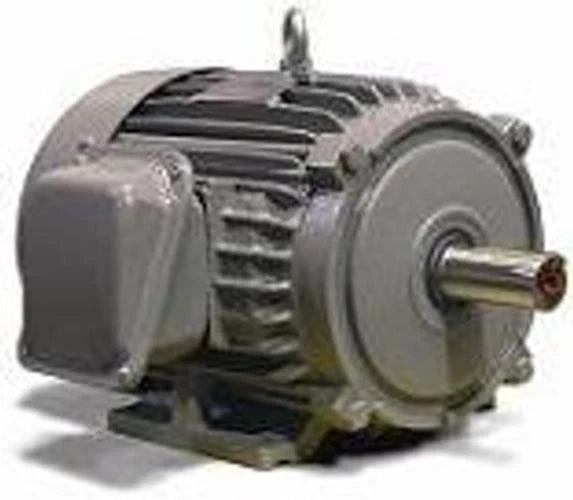

TECO NP7/54 Electric Motor 7.5 HP 1800 RPM

Product Description

The TECO NP7/54 is a three-phase electric motor designed for industrial applications. This motor operates at a horsepower rating of seven point five HP and a speed of eighteen hundred RPM. With its Totally Enclosed Fan Cooled (TEFC) enclosure made from durable cast iron, it is built for longevity and reliability.

• Three-phase, 7.5 HP electric motor
• TEFC design prevents dust and moisture ingress
• Compatible with 208-230/460 volt power supply

Product Highlights

This motor is excellent for various applications requiring powerful and efficient performance.

Product Information

Standard Information

• Brand: TECO
• MPN: NP7/54

Technical Specifications

• Horsepower: 7.5
• RPM: 1800
• Enclosure: TEFC
• Frame: 213T
• Voltage: 208-230/460
• Phase: 3
• Frequency: 60 Hz
• Service Factor: 1.15
• Full Load Efficiency: 91.7%
• Full Load Power Factor: 86.5%
• Full Load Amperage: 8.85A
• Insulation Class: Class F
• Ambient Temperature: 40°C
• Mounting Type: Footed
• Rated for Elevation: 3300 ft
• Rotation: Bi-Directional
