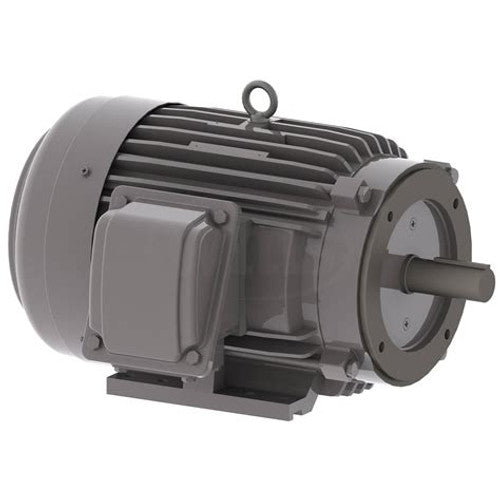

TECO NP1004C AC Motor 100 hp 405TC

Product Description

The TECO NP1004C is a three-phase AC motor suitable for general-purpose and severe-duty applications. This model features a cast iron frame and is designed to be totally enclosed and fan-cooled (TEFC), providing excellent protection. It is also compatible with inverters and certified for use in Class 1, Division 2, Groups B, C, and D hazardous locations. The motor operates continuously with a service factor of 1.15.

• Operates at 1800 RPM.
• Rated for 230/460V power input at 60 Hz.
• NEMA 405TC frame size.

Product Highlights

The TECO NP1004C AC motor is ideal for various industrial applications, ensuring reliability and efficiency. With advanced protection features and a sturdy design, it suits demanding environments.

Product Information

Standard Information

• Brand: TECO
• MPN: NP1004C

Technical Specifications

• Horsepower: 100 hp
• Power: 74.6 KW
• RPM: 1800 RPM
• Frame Size: 405TC
• Voltage: 208/230/460V
• Full Load Amps: 112 amps
• Phase: Three Phase
• Enclosure: TEFC
• Ingress Protection: IP56
• Service Factor: 1.15
• Dimensions: 7 x 2 7/8 Dia. Keyed Shaft
• Weight: 1,236 lbs
