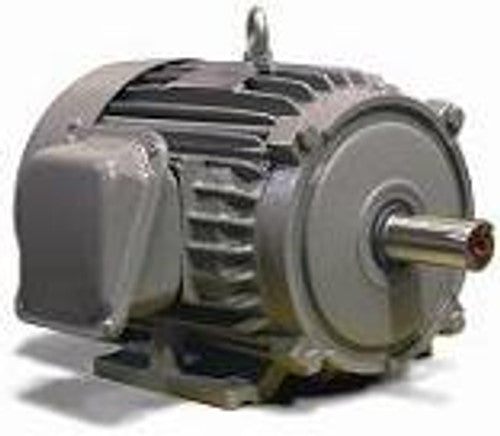

TECO NP1/56 Electric Motor, 1.5 hp, 182T Frame Size

Product Description

The TECO NP1/56 is a three-phase electric motor designed for high efficiency and durability. It features a Totally Enclosed Fan Cooled (TEFC) enclosure and a robust cast iron frame for excellent performance. This motor is dual nameplated for both 60 Hz and 50 Hz operation and is suitable for inverter applications.

• Horsepower: 1.5 hp
• Frame Size: 182T
• RPM: 1200

Product Highlights

The TECO NP1/56 offers strong performance with design B torque and a rigid base that adds stability during operation.

Product Information

Standard Information

• Brand: TECO-Westinghouse
• Model: NP1/56

Technical Specifications

• Horsepower: 1.5 hp
• RPM: 1200
• Frame Size: 182T
• Voltage: 230/460V
• Frequency: 60 Hz
• Phase: Three Phase
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame Material: Cast Iron
• Service Factor: 1.15
• Insulation Class: Class F
• Weight: 120 lbs
• Mounting Type: Footed
• Efficiency: NEMA Premium
• Amps: 5.06/2.53 amps
• Base: Rigid Base
• Rotation: Reversible
• Bearings: Ball Bearings
• Inverter Duty: Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Thermal Overload Protection: None
• Shaft Size: 2 3/4 x 1 1/8 Dia. Keyed Shaft
