TECO NP1/52G Electric Motor 1.5 hp NEMA 143T REPLACEMENT MPN

Product Description

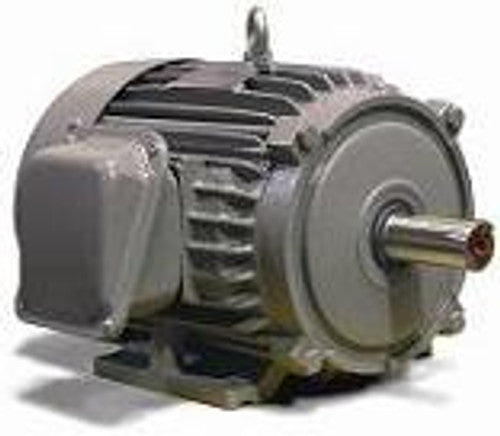

The TECO NP1/52G is a three-phase electric motor that is ideal for general purpose applications. Designed to work at voltages of two hundred thirty or four hundred sixty volts at sixty Hertz, this motor delivers consistent performance.

Its structure features a cast iron frame for durability and a totally enclosed, fan-cooled (TEFC) design that offers protection against dust and moisture. The motor is inverter-ready and comes with an SGR bearing protection ring. The unit operates at three thousand six hundred RPM and has ball bearings with Class F insulation for optimal efficiency.

• Three-phase operation suitable for varied applications.
• Compact NEMA 143T frame for easy installation.
• Power output of one and a half horsepower.

Product Highlights

Reliable electric motor perfect for HVAC, pumps, or fans.

Product Information

Standard Information

• Manufacturer: TECO
• Model: NP1/52G

Technical Specifications

• Horsepower: 1.5 hp
• RPM: 3600 RPM
• Frame: 143T
• Voltage: 230/460V
• Output Current: 4.00/2.0 amps
• Frequency: 60 Hz
• Phase: Three Phase
• Enclosure: TEFC
• Service Factor: 1.15
• Bearings: Ball Bearings
• Insulation Class: Class F
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Weight: 85.000 lb
• Nominal FL Eff: 84
