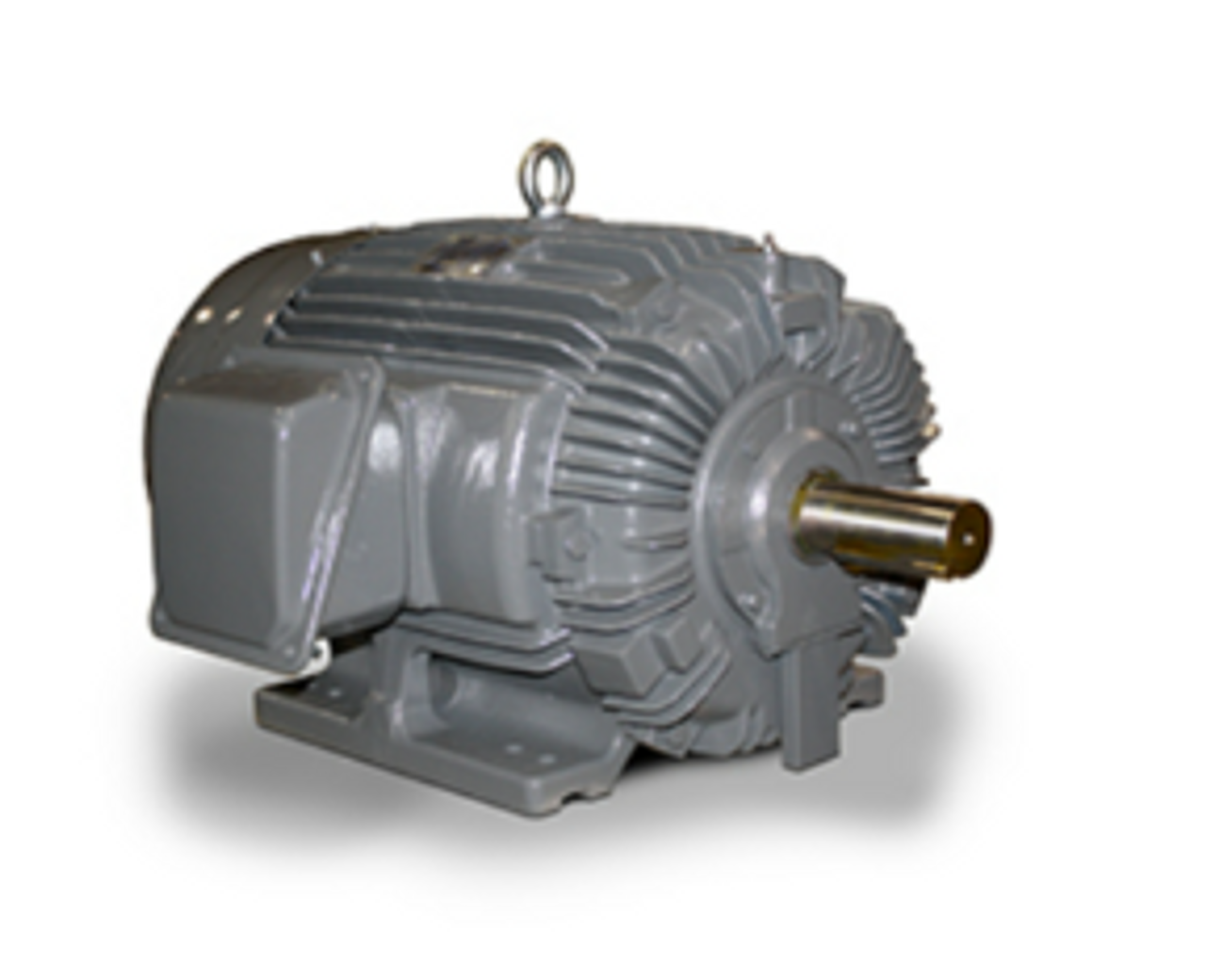

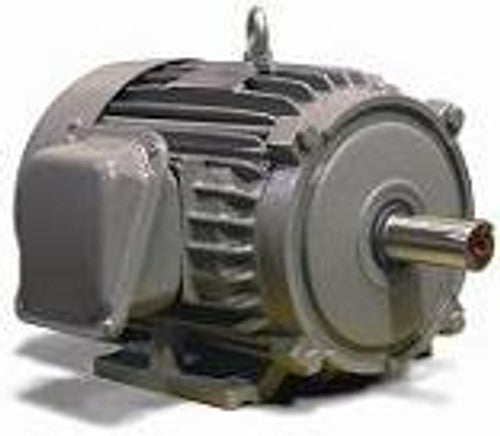

TECO NP0754 Electric Motor 75 HP

Product Description

The TECO NP0754 is a three-phase electric motor with a robust design suitable for a variety of applications. This motor features a totally enclosed fan-cooled (TEFC) enclosure and a durable cast iron frame. It is compatible with inverter use and has a NEMA 365T frame for versatile mounting options.

• Bi-directional rotation capability.
• Designed for inverter duty with a variable torque speed range of 20 to 1 and constant torque speed range of 10 to 1.
• Class F insulation ensures safe operation in higher temperature environments.

Product Highlights

This electric motor is ideal for general-purpose and severe-duty tasks. Its aluminum die-cast squirrel cage rotor design contributes to its efficiency and longevity, making it a reliable choice for trade professionals.

Product Information

Standard Information

• Brand: TECO
• MPN: NP0754

Technical Specifications

• Horsepower: 75 HP
• RPM: 1800 RPM
• Voltage: 208-230/460V
• Frequency: 60 Hz
• Phase: 3 Phase
• Frame Size: 365T
• Enclosure: TEFC
• Full Load Amperage: 85.1A
• Service Factor: 1.15
• Insulation Class: Class F
• Ambient Temperature: 40°C
• Rotation: Bi-Directional
• Rotor Construction: Aluminum Die Cast Squirrel Cage
• Inverter Duty Speed Range: 20:1 Variable Torque; 10:1 Constant Torque
• Full Load Efficiency: 95.4%
• Full Load Power Factor: 86.5%
• Temperature Rise: Class B
• Mounting Type: Foot Mount
• Frame Material: Cast Iron
• IP Rating: IP56
• Approvals: U.L. Recognized, CSA Approved and CE Marked
