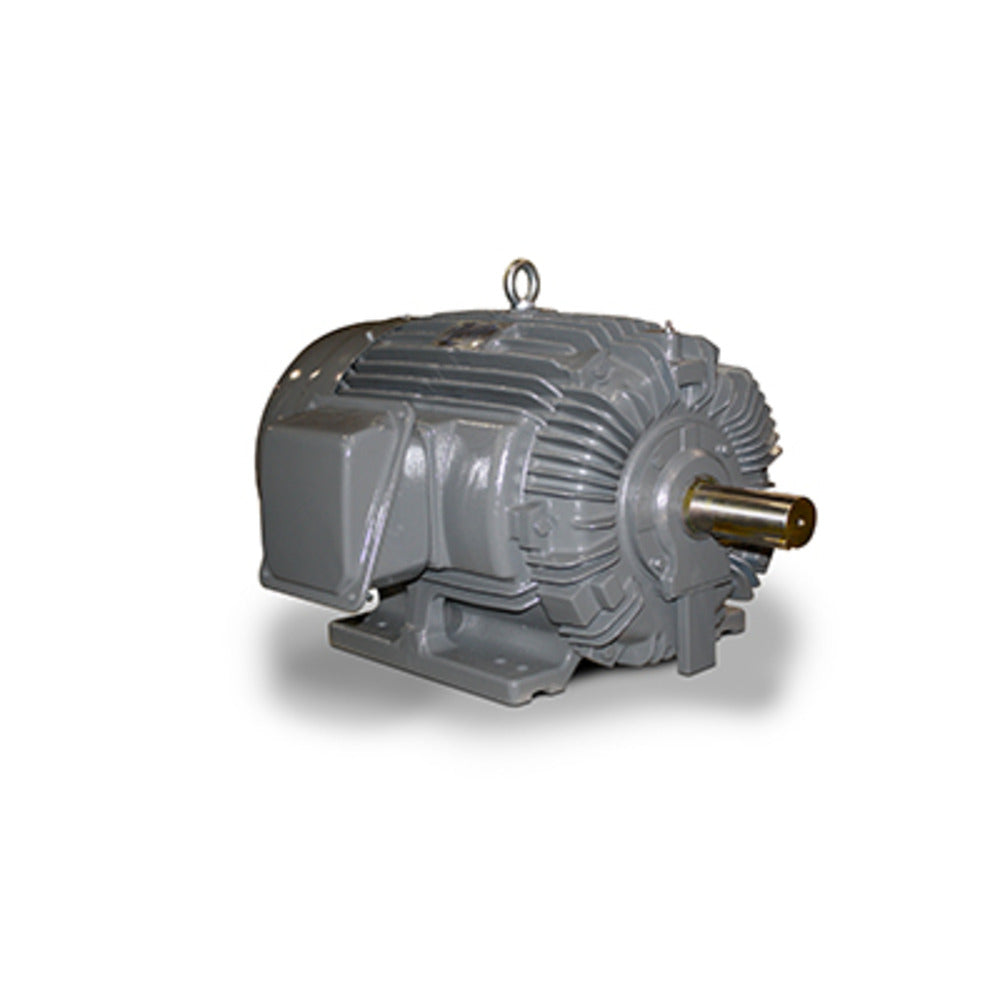

Teco NP0304 General Purpose Motor 30 HP 1800 RPM 286T Frame

Product Description

The TECO NP0304 general purpose motor is a three-phase, T-frame squirrel-cage induction motor. This 30 HP motor features a TEFC enclosure, and is designed for 230/460V operation. It has a rigid base mounting and a 286T frame. It meets NEMA, IEEE, and CSA standards.

• Three Phase
• TEFC Enclosure
• Cast Iron Frame

Product Highlights

This motor is suitable for various industrial applications requiring a reliable and efficient power source. It is inverter rated per NEMA MG 1, Part 31.

Product Information

Standard Information

• Brand: TECO
• Manufacturer Part Number: NP0304

Technical Specifications

• Electrical Type: Three Phase
• HP: 30
• Frame: 286T
• Enclosure: TEFC
• Phase: Three
• Voltage: 230/460
• Material: Cast Iron
• Mounting: Rigid Base
• Amperage: 34.3
• Hz: 60
• RPM: 1800
• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Motor Horsepower: 30 HP
• Motor RPM's: 1800 RPM
• Manufacturer: TECO
• Motor Voltage: 230/460 VAC
• Motor Frame Model: 284/286T
• Horsepower: 30 hp
• Motor Type: TEFC, Cast Iron
• All - Specific Ratings: NEMA Premium
• Series: MAX-PE Series
• All - Voltage: 230/460V (Usable on 208V)
• Warranty: 3 Years
