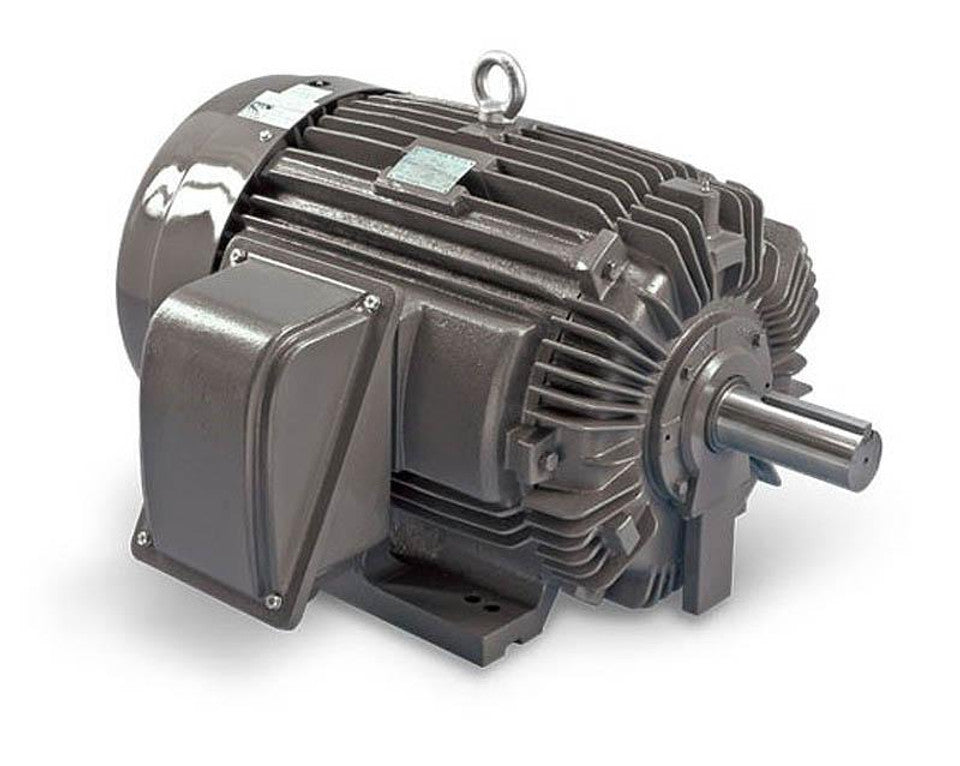

TECO NP0154C Electric Motor 15 hp TEFC

Product Description

The TECO NP0154C is a three-phase electric motor designed for reliable performance. This motor features a totally enclosed fan cooled (TEFC) design, which protects the internal components from dust and moisture. Its cast iron construction ensures durability and stability during operation. The motor supports dual frequencies, making it versatile for different applications.

• Cast iron frame and end brackets
• Dual nameplated for 60Hz and 50Hz
• Suitable for hazardous locations, Class I, Division II

Product Highlights

This motor offers efficient operation and is ideal for various industrial setups.

Product Information

Standard Information

• Brand: TECO
• MPN: NP0154C

Technical Specifications

• Horsepower: 15 hp
• RPM: 1800
• Frame: 254TC
• Enclosure: TEFC
• Phase: 3
• Voltage: 208-230/460 VAC
• Mounting Type: Footed, C Face
• Frequency: 60 Hz
• Service Factor: 1.15
• Motor Type: Cast Iron
• Series: MAX-PE Series
• Weight: 318 lb
• Full Load Efficiency: 92.4%
• Full Load Power Factor: 88%
• Full Load Amperage: 17.3A
• Insulation Class: Class F
• Ambient Temperature: 40°C
