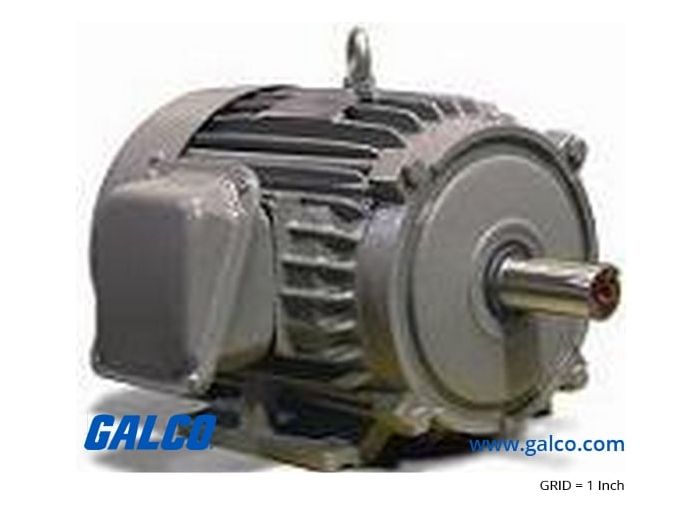

TECO NP0104G AC Motor 10 HP 1800 RPM 208-230/460V 215T Frame

Product Description

The TECO NP0104G AC Motor is a three-phase motor with a power output of ten horsepower and a speed of one thousand eight hundred RPM. This motor operates on a voltage of two hundred eight to two hundred thirty or four hundred sixty volts at sixty hertz, making it suitable for various applications. The motor has a frame size of 215T and a Totally Enclosed Fan Cooled (TEFC) design, which protects it from environmental factors. It also features an AEGIS Shaft Grounding Ring that reduces electrical bearing damage.

• Suitable for inverter duty applications with a speed range of twenty to one variable torque.
• Includes a premium efficiency rating to enhance energy savings.
• Constructed with a cast iron frame for durability.

Product Highlights

This motor is ideal for industrial and commercial settings, providing reliable performance and efficiency.

Product Information

Standard Information

• Manufacturer: TECO Westinghouse
• Motor Type: AC Motor

Technical Specifications

• MPN: NP0104G
• Horsepower: 10 hp
• Kilowatts: 7.5 kW
• Speed: 1800 RPM
• Number of Poles: 4
• Phase: 3
• Input Voltage: 208-230/460 Volts
• Frequency: 60 Hz
• Enclosure: Totally Enclosed Fan Cooled
• Service Factor: 1.15
• Full Load Efficiency: 91.7%
• Full Load Amperage: 11.6 A
• Ambience Temperature: 40°C
• Net Weight: 170 lbs
• Ingress Protection: IP54
