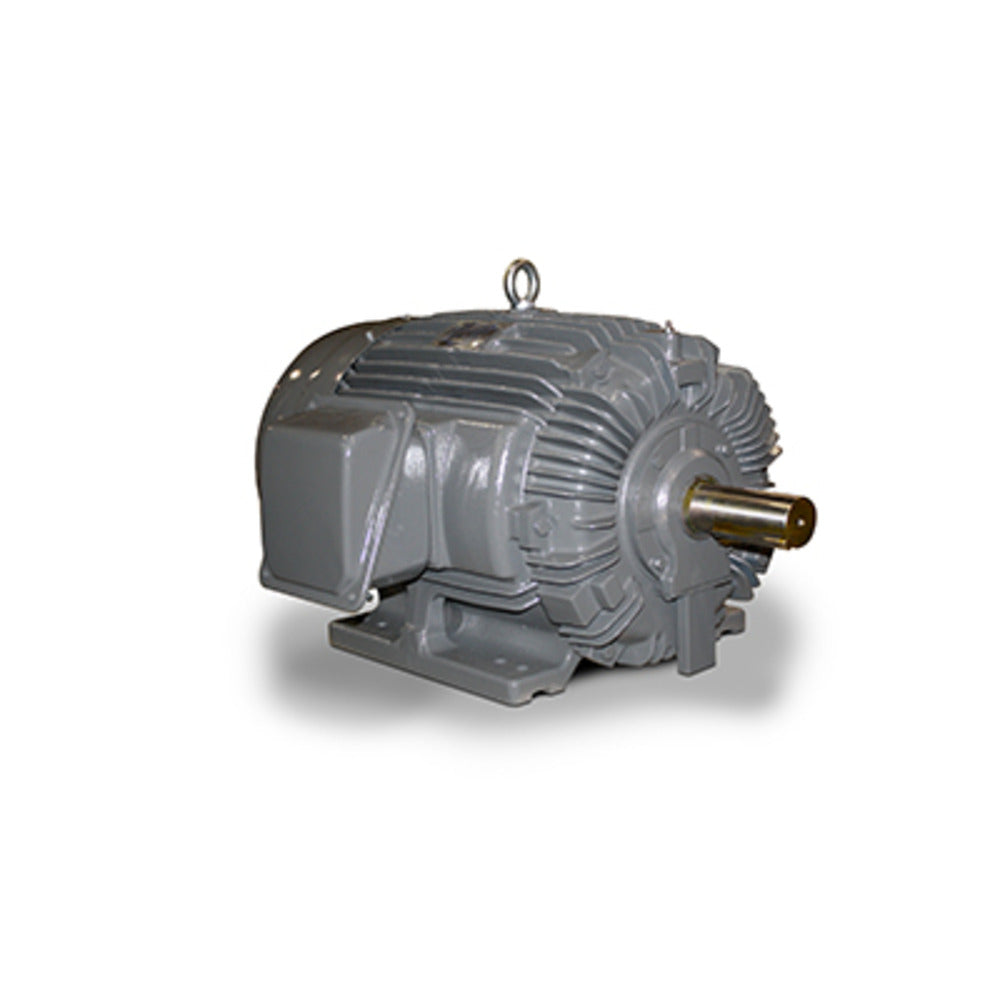

Teco NP0052 General Purpose Motor 5 HP 3600 RPM 184T

Product Description

The TECO NP0052 general purpose motor is a three-phase, 5 HP motor with a speed of 3600 RPM and a 184T frame. It features a TEFC enclosure and is designed for 230/460 voltage operation. The motor has a rigid base mounting and a 5.72 amperage rating. It is constructed with a cast iron material for durability and corrosion resistance.

• Electrical Type: Three Phase
• HP: 5
• RPM: 3600

Product Highlights

This TECO motor is suitable for various applications, including fans, pumps, compressors, and conveyors. It meets NEMA, IEEE, and CSA standards.

Product Information

Standard Information

• Brand: TECO
• Manufacturer Part Number: NP0052
• Country of Origin: United States

Technical Specifications

• Electrical Type: Three Phase
• HP: 5
• RPM: 3600 RPM
• Frame: 184T
• Enclosure: TEFC
• Phase: Three
• Voltage: 230/460
• Material: Cast Iron
• Mounting: Rigid Base
• Amperage: 5.72
• Horsepower: 5 hp
• Motor Type: TEFC, Cast Iron
• All - Specific Ratings: NEMA Premium
• Series: MAX-PE Series
• All - Voltage: 230/460V (Usable on 208V)
• Warranty: 3 Years
• Hz: 60
• Number of Poles: 2
• AC Voltage: 230 VAC, 460 VAC
• Nominal Voltage: 240 VAC, 480 VAC
• Service Factor: 1.15
• Inverter Duty: Yes
• Approvals: CE, CSA, UL, UR
• Kilowatts: 3.7 kW
