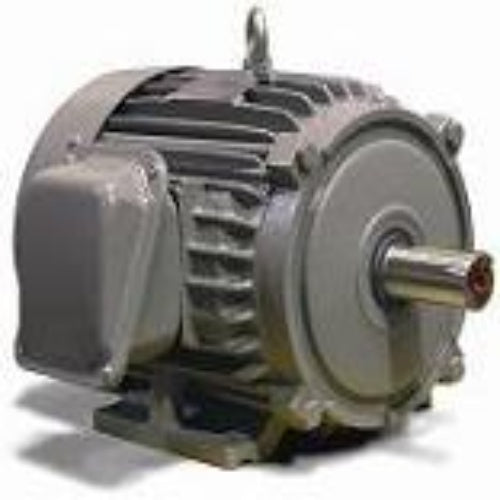

TECO NP0026G Electric Motor 2 HP 184T

Product Description

The TECO NP0026G is a 2 HP electric motor made for industrial use. This motor operates on three-phase power at 230/460 VAC and sixty Hertz. It runs at a speed of twelve hundred RPM. The Totally Enclosed Fan Cooled (TEFC) enclosure keeps the motor safe from dust and moisture. Its frame is sized at 184T, suitable for various installations. This motor incorporates an AEGIS shaft grounding ring, which adds protection to the bearings.

• Horsepower: 2 HP
• Speed: 1200 RPM
• Enclosure Type: TEFC

Product Highlights

This motor is designed for durability and efficiency. It is suitable for inverter applications and has a high full load efficiency of eighty-eight point five percent. Its construction with a cast iron frame and Class F insulation ensures longevity in tough conditions.

Product Information

Standard Information

• Brand: TECO
• MPN: NP0026G

Technical Specifications

• Horsepower: 2 HP
• Frame: 184T
• Voltage: 230/460 VAC
• Frequency: 60 Hz
• Phase: Three Phase
• Enclosure: TEFC
• IP Rating: IP56
• Full Load Efficiency: 88.5%
• Full Load Amperage: 3A
• Shaft Diameter: 2.25 x 0.875 inches
• Frame Material: Cast Iron
• Suitable for Inverter Duty: Yes
• Approvals: U.L. Recognized, CSA Approved, CE Marked
