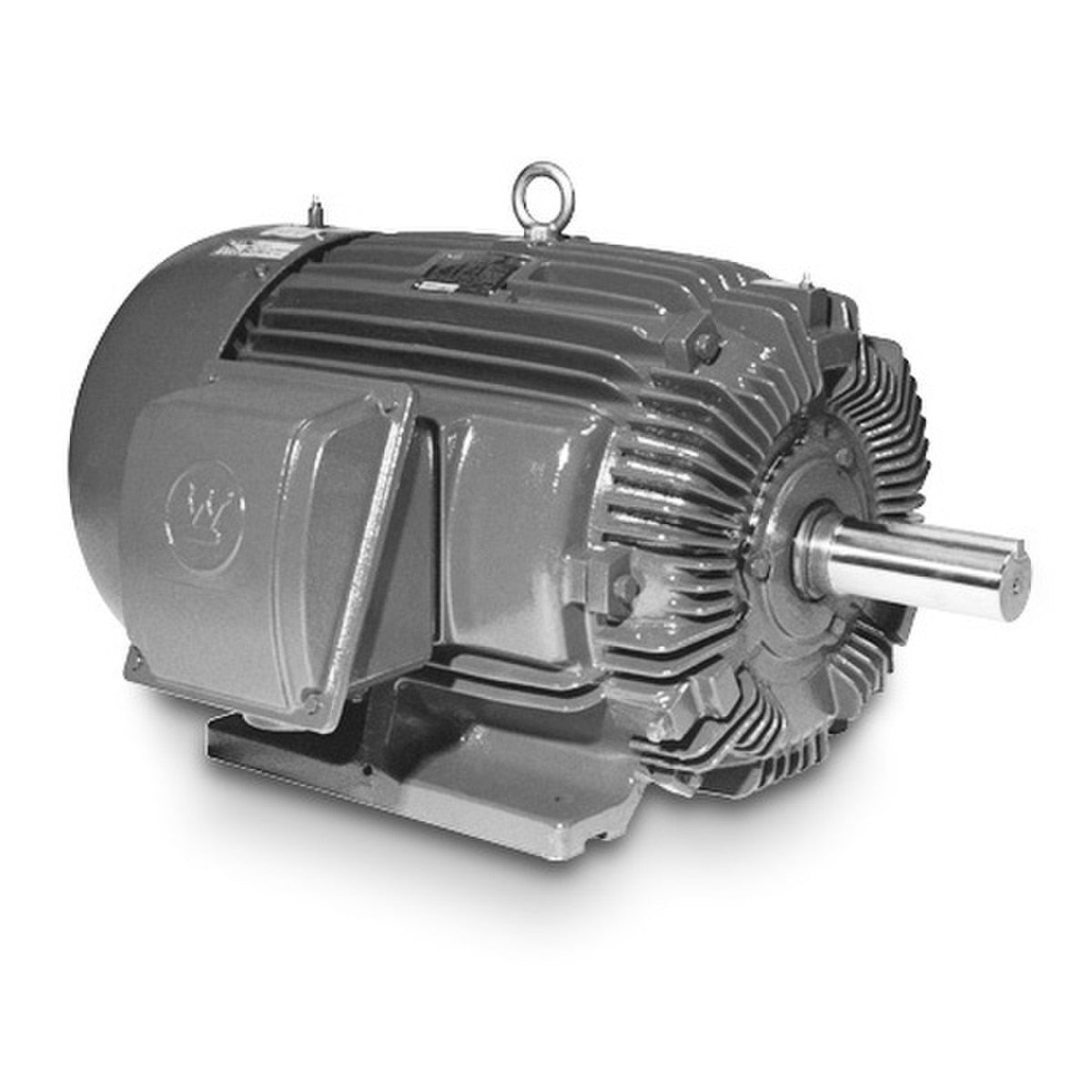

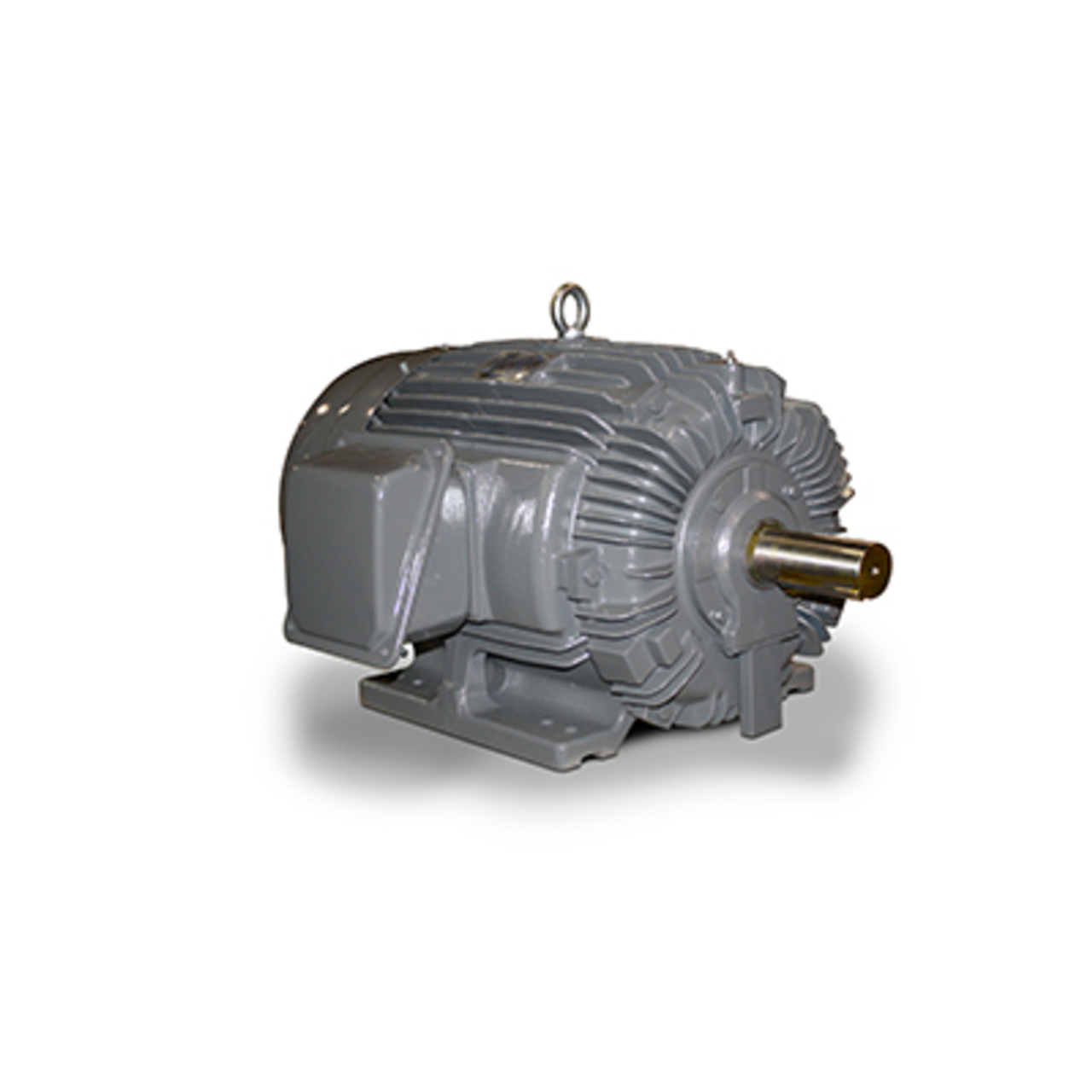

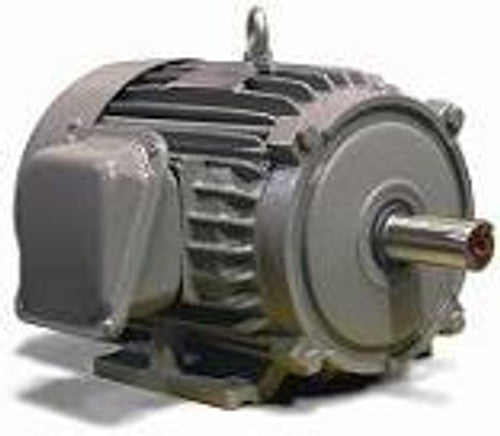

TECO NP0024G AC Motor 2 HP

Product Description

The TECO NP0024G is a three-phase AC motor ideal for demanding applications. It features a totally enclosed fan cooled (TEFC) design and a robust cast iron frame. This motor is suitable for inverter operations and includes a shaft grounding ring for protection of the bearings.

• Three-phase setup
• Designed for continuous duty at 230/460V
• Rated for various applications and environments

Product Highlights

Durable and reliable, the TECO NP0024G AC motor is optimized for use in diverse industrial settings.

Product Information

Standard Information

• Brand: TECO
• MPN: NP0024G

Technical Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 230/460V
• Frequency: 60 Hz
• Phase: Three Phase
• Frame: 145T
• Enclosure: TEFC
• Service Factor: 1.15
• Protection: SGR bearing protection ring
• Mounting Type: Foot Mount
• Amps: 5.56/2.78
• Shaft Diameter: 2 1/4 x 7/8 Dia.
